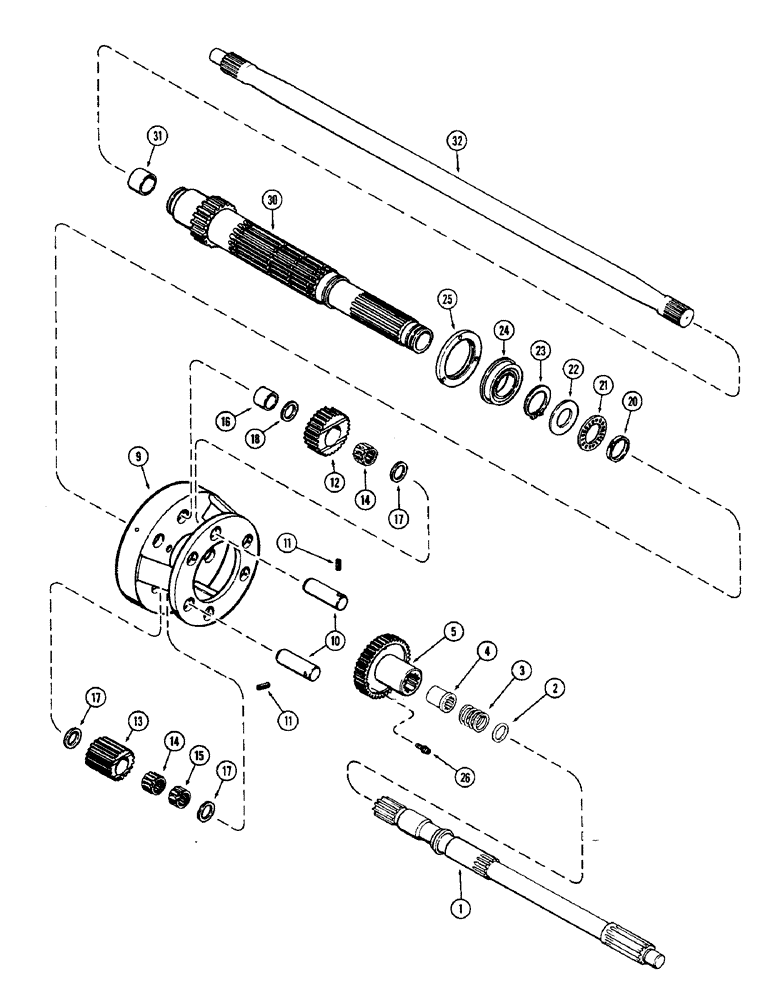

Запчасти Case IH 1370 (184) - PLANETARY AND INPUT SHAFT, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10032007 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A66136
SHAFT
- front, P.T.O. drive
1шт.
2
A63067
SPACER
RETAINER - spring
1шт.
3
A63068
SPRING
- input gear
1шт.
4
A66141
BUSHING
SLEEVE - support, shaft
1шт.
5
A63102
GEAR
- planetary input
1шт.
9
A64497
CARRIER
- planetary (Order A148692 carrier, A146603 retainer and 3-62-410 screws from Figure 182)
1шт.
10
A63107
PIN
- planet gear
6шт.
11
138-92
LOCK PIN,3/16" x 3/4", Slotted
PIN, 3/16" x 3/4", Slotted
6шт.
12
A63105
GEAR
- planet, short
3шт.
13
A63108
GEAR
- planet, long
3шт.
14
A62543
NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W
BEARING - roller, planet gear (1 x 1-5/16 x 1-1/4" wide)
6шт.
15
A58077
ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm
BEARING - roller, planet gear (1 x 1-5/16 x 1" wide)
3шт.
16
A63106
SPACER
- short planet gear (Order A140877)
3шт.
17
A58070
WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk
RACE - thrust, planet gear (1 x 1-3/4 x 1/32")
9шт.
18
A58406
SPACER
RACE - thrust, planet gear (1 x 1-3/4 x 3/32") (Order A150410)
3шт.
20
A58989
RING
- seal, Serial Range: shaft-gear
1шт.
21
A54022
THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W
BEARING - needle thrust
1шт.
22
A54021
WASHER
RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 mm)
1шт.
23
A7611
SNAP RING,#175, Ext
Ring, Snap, , shaft locating #175, Ext
1шт.
24
A63109
BEARING, BALL
BEARING - ball (Includes snap ring)
1шт.
25
A64444
COLLAR
RETAINER - carrier (With three #10-24 holes) (Order A146603 retainer, A148692 carrier and 3-62-410 screws from Figure 182)
1шт.
26
165-156
HEX SOC SCREW,Prev Torque, #10 - 24 x 5/8"
SCREW - cap (#10-24 x 5/8" hex. socket hd.) (Order 3-62-410 screws, A148692 carrier and A146603 retainer from Figure 182)
3шт.
30
A63110
SHAFT
ASSEMBLY - planetary output, Includes: Ref. 31
1шт.
31
A63112
BUSHING
- P.T.O. support
1шт.
32
A64005
SHAFT - power input
1шт.
Выбрано товаров: 25
