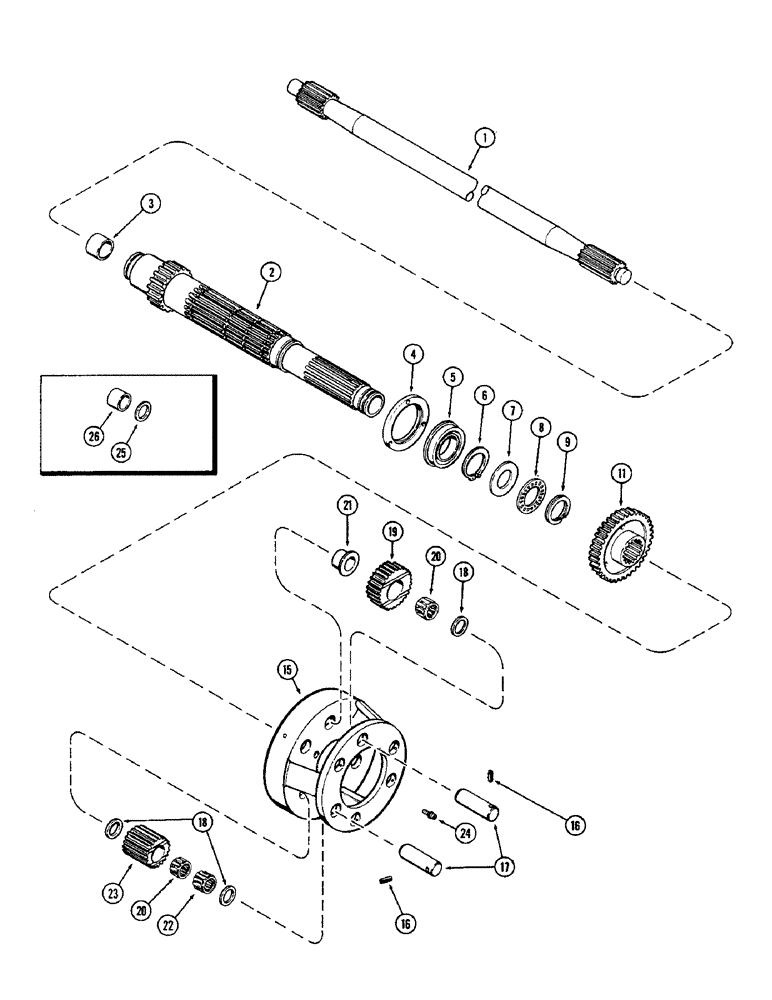

Запчасти Case IH 1370 (182) - PLANETARY AND INPUT SHAFT, FIRST USED TRANSMISSION SERIAL NUMBER 10032007 (06) - POWER TRAIN

1

A152396

SHAFT

- input, power and P.T.O. (1st used trans. ser. no. 10057514)

1шт.

1

A151014

SHAFT

- input, power and P.T.O. trans., Serial Range: 10056403-10057514

1шт.

1

A66477

SHAFT

- input, power and P.T.O. to trans., Serial Range: -10056403

1шт.

2

A151019

SHAFT

ASSEMBLY - planetary output (Replaces A146157), Includes: Ref. 3

1шт.

3

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- P.T.O. shaft support

1шт.

4

A146603

RETAINER

- carrier bearing (With three - 1-1/4" N.F. holes)

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier (Incl. snap ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, , shaft locating #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 mm)

1шт.

8

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle thrust

1шт.

9

A66487

SNAP RING,#185, 1.981", Int, Spiral

RING - snap (Internal type)

1шт.

11

A148691

GEAR

- planetary, input (Replaces A66409)

1шт.

15

A148692

CARRIER

- planetary (With three - 9/32" thru holes)

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A63107

PIN

- planet gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gear (1 x 1-3/4 x 1/32")

9шт.

19

A63105

GEAR

- planet short

3шт.

20

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gear (1 x 1-5/16 x 1-1/4" wide)

6шт.

21

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- short gear (Replaces A150410 and A63106)

3шт.

22

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planet gear (1 x 1-5/16 x 1" wide)

3шт.

23

A63108

GEAR

- planet, long

3шт.

24

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - cap (1/4 x 5/8" N.F. hex. socket hd.)

3шт.

25

A150410

SPACER

RACE - thrust, short gear rear (1 x 1-3/4 x 3/32")

3шт.

26

A63106

SPACER

- short gear (Order A140877)

3шт.
