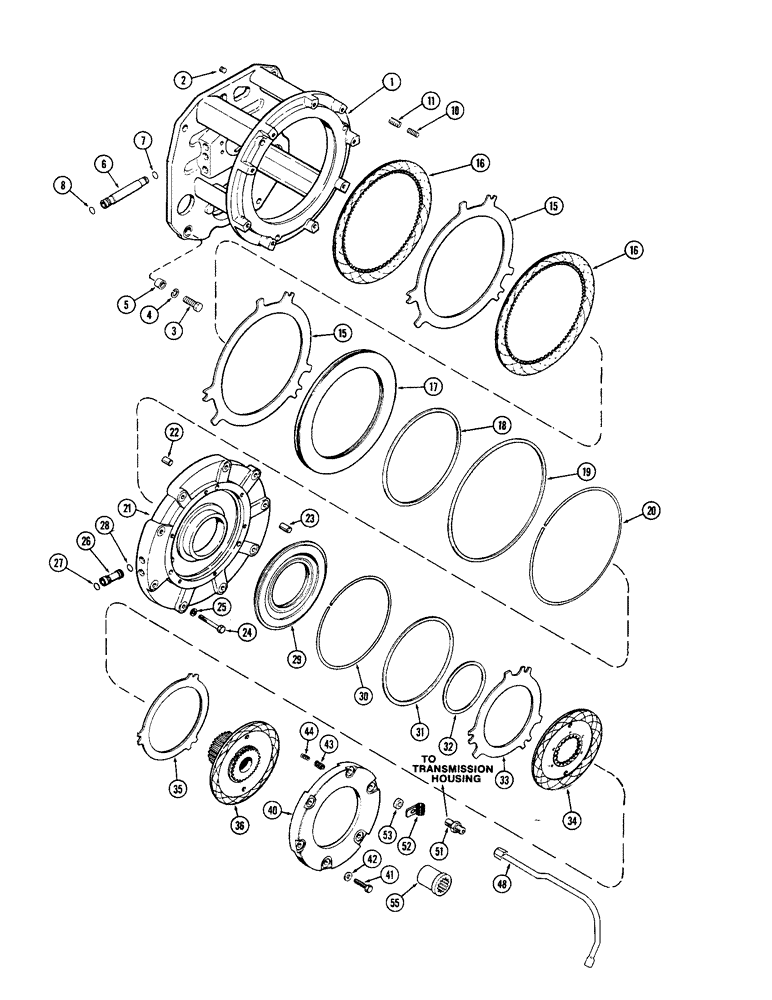

Запчасти Case IH 1370 (180) - (C1) AND (C4) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 2427274 (06) - POWER TRAIN

1

A66979

CARRIER

ASSY - Power shift (Replaces A63952) (Order A151274), Incl. Ref. 2

1шт.

2

221-841

PLUG

Pipe, 1/4" hex. socket

2шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A50011

SLEEVE

SLEEVE - dowel

2шт.

6

A63118

TUBE

Oil

3шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Inner

3шт.

Part of Seal Kit P/N A42886

1шт.

8

A65918

O-RING,0.551" ID x 0.691" OD

Outer

3шт.

10

A62607

SPRING

Return (C4) Plate (23/64" dia. x 1-3/4" free length)

3шт.

11

A62606

SPRING

Return (C4) Plate (9/16" dia. x 1-3/32" free length)

3шт.

15

A58056

PLATE

Steel (C4) Clutch

2шт.

16

A62563

PLATE

Friction (C4) Clutch (Order A67128)

1шт.

17

A58395

PISTON

(C4) Clutch (Order A146671, A146680, A146681, A150751 and A150752)

1шт.

18

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - internal seal (C4) Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

19

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - external seal (C4) Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

20

A62643

ELECTRICAL WIRE

WIRE External seal ring

1шт.

Part of Seal Kit P/N A42886

1шт.

21

A65563

CARRIER

ASSY - piston (C1) and (C4) clutches, Incl. Ref. 22 and 23

1шт.

22

A65555

PIN

(C4) Plate (1-37/64" long)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

(C1) Plate (1-5/64" long)

3шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

9шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened (7/16 x 3/4 x 1/32")

9шт.

26

A63096

TUBE

Oil (Order A152371)

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

Outer

2шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Inner

2шт.

Part of Seal Kit P/N A42886

1шт.

29

A66392

PISTON

(C1) Clutch (Replaces A58280) (Order A146670, A146682, A146683, A150753 and A150754)

1шт.

30

A62642

ELECTRICAL WIRE

WIRE External seal ring (C1) Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

31

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - external seal (C1) Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

32

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - internal seal (C1) Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

33

A65524

PLATE

Steel w/tab (C1) Clutch

1шт.

34

A142536

PLATE

Friction (C1) Clutch (Replaces A77131)

1шт.

35

A65525

PLATE

Steel w/o tab (C1) Clutch

1шт.

36

A142986

PLATE

ASSY - (C1) Clutch hub (Replaces A66138) (Order A150111 and A150128)

1шт.

40

A62605

PLATE

Reaction (C1) Clutch (Order A150128)

1шт.

41

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

5шт.

41

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

(Tube clamp)

1шт.

42

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened (7/16 x 3/4 x 1/32")

6шт.

43

A62606

SPRING

Return (C1) Plate (9/16" dia. x 1-3/32" free length)

3шт.

44

A62607

SPRING

Return (C1) Plate (23/64" dia. x 1-3/32" free length)

3шт.

48

REF

INSTRUCTION

TUBE ASSY - lube (C1) Clutch (See Figrue 154)

1шт.

55

A66141

BUSHING

SLEEVE - support, PTO shaft

1шт.

A42886

SEAL KIT

Seal, Incl. Ref. 7, 18 - 20, 28, 30 - 32 and Refs. on Figures 188

1шт.
