(178) - (C1) AND (C4) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 2427274 TO 10057473

Запчасти Case IH 1370 (178) - (C1) AND (C4) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 2427274 TO 10057473 (06) - POWER TRAIN

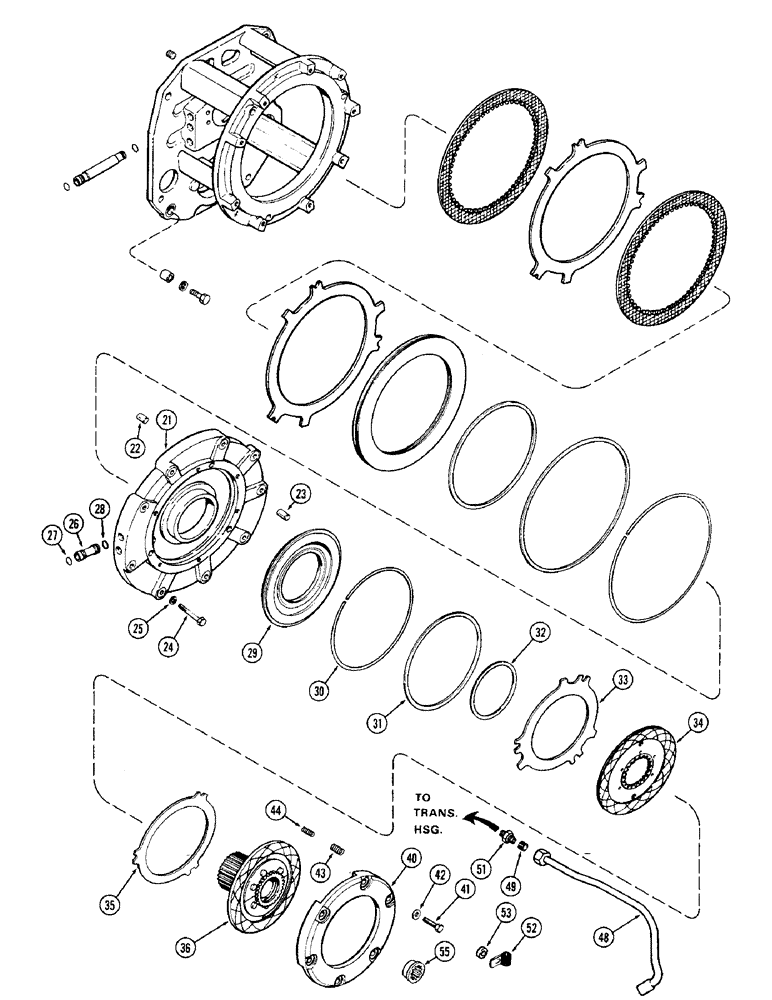

Схема запчастей Case IH 1370 - (178) - (C1) AND (C4) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 2427274 TO 10057473 (06) - POWER TRAIN
23
41
30
35
26
34
48
29
21
55
42
33
22
52
24
49
25
53
31
28
43
32
51
40
44
36
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

A67081

CARRIER

ASSY - piston (1st used trans. S/N 10031544), Incl. Ref 22 and 23

1шт.

21

A65563

CARRIER

ASSY - piston to trans., Incl. Ref. 22 and 23, Serial Range: -10031544

1шт.

22

A65555

PIN

Clutch reaction plate (C4) (1-37/64" long)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

Clutch reaction plate (C1) (1-5/64" long)

3шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

9шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened, carrier bolt (7/16 x 3/4 x 1/32")

9шт.

26

A63096

TUBE

Oil (C1) and (C4) clutch (Order A152371)

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

Oil

2шт.

28

A66392

PISTON

C1, order: P/N A146670, A146682, A146683, A150753 and A150754

1шт.

Part of Seal Kit P/N A42886

1шт.

29

A66392

PISTON

(order A146670, A146682, A146683, A150753 and A150754)

1шт.

30

A62642

ELECTRICAL WIRE

WIRE C1, piston, sealing ring

1шт.

Part of Seal Kit P/N A42886

1шт.

31

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

Ring, external C1 Piston

1шт.

Part of Seal Kit P/N A42886

1шт.

32

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

Ring, C1 Piston, internal

1шт.

Part of Seal Kit P/N A42886

1шт.

33

A65524

PLATE

(C1) Clutch with tab

1шт.

34

A142536

PLATE

(C1) Clutch, sintered (Replaces A77131)

1шт.

35

A65525

PLATE

(C1) Clutch without tab

1шт.

36

A150111

GEAR

Sun (C1) Clutch (1st used trans. S/N 10032007)

1шт.

36

A144156

GEAR

Sun (C1) Clutch to trans. (Order A150111 and A150128), Serial Range: -10032007

1шт.

40

A150128

PLATE

(C1) Reaction (1st used trans. S/N 10032007)

1шт.

40

A62605

PLATE

(C1) Reaction to trans. (Order A150128), Serial Range: -10032007

1шт.

41

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

5шт.

41

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

(Tube clip)

1шт.

42

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

Hardened, plate bolt (7/16 x 3/4 x 1/32")

6шт.

43

A62606

SPRING

Return (C1) (9/16" dia., 1-3/32" free length)

3шт.

44

A62607

SPRING

Return (C1) (23/64" dia., 1-3/32" free length)

3шт.

48

REF

INSTRUCTION

TUBE ASSY - Lube line to (C1) Clutch (See Figure 156)

1шт.

55

A76482

BUSHING,20T

Front, PTO shaft

1шт.

A42886

SEAL KIT

Seal, Incl. Ref. 28 - 32 and Refs. on Figures 176 and 188

1шт.
