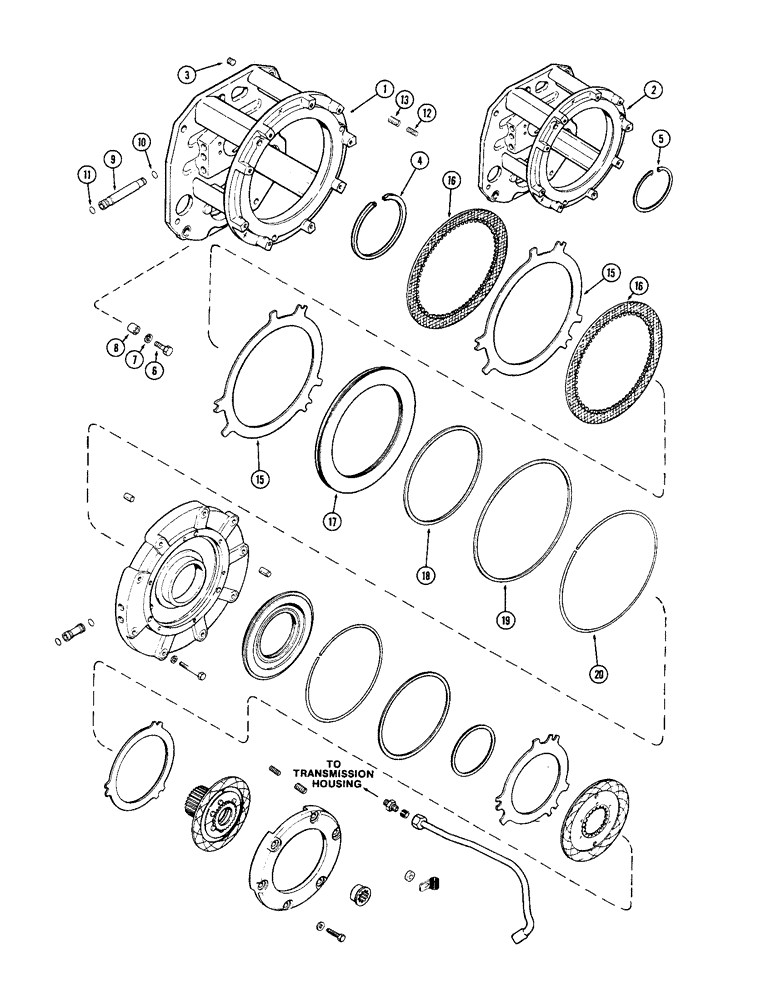

Запчасти Case IH 1370 (176) - (C1) AND (C4) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 2427274 TO 10057473 (06) - POWER TRAIN

1

A151274

CARRIER

ASSEMBLY - power shift (1st used transmission serial no. 10060560) (Use with 3-113-422 and 1-113-421)

1шт.

1

A67262

CARRIER

ASSEMBLY - power shift (w/4-3/32" snap ring groove) (1st used trans. ser. no. 10056403) (Order A151274, 1-113-421 and 3-113-422)

1шт.

1

A67084

CARRIER

ASSEMBLY - power shift (w/4-3/32" snap ring groove) (Used trans. ser. no. 10028201 to 10056403) (Order A151274, 1-113-421 and 3-113-422)

1шт.

2

A66979

CARRIER

ASSEMBLY - power shift (w/4-1/4" snap ring groove) (Order A67084 carrier and A140045 snap ring) to trans. (Order A151274), Includes: Ref. 3, Serial Range: -10028201

1шт.

3

221-841

PLUG

- pipe (1/4" hex. socket)

2шт.

4

A140045

RING

- retaining (Used w/A67084 and A67262 carrier) (1st used trans. ser. no. 10028201)

1шт.

5

A63117

SNAP RING,3.938", Int, #393

Ring, Snap, , used w/A66979 carrier, to trans. 3.938", Int, #393, Serial Range: -10028201

1шт.

6

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

3шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.)

2шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A50011

SLEEVE

- dowel

2шт.

9

A63118

TUBE

- oil

3шт.

10

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- (1/2 x 5/8 x 1/16")

3шт.

Part of Seal Kit P/N A42886

1шт.

11

A65918

O-RING,0.551" ID x 0.691" OD

- (9/16 x 11/16 x 1/16")

3шт.

12

A62607

SPRING

- return (C4) (23/64" dia., 1-3/32" free length)

3шт.

13

A62606

SPRING

- return (C4) (9/16" dia., 1-3/32" free length)

3шт.

15

A58056

PLATE

- steel (C4) Clutch

2шт.

16

A67128

PLATE

- friction (C4) Clutch (Replaces A62563)

2шт.

17

A58395

PISTON

- (C4) Clutch (Order A146671, A146680, A146681, A150751 and A150752)

1шт.

18

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing (C4) Piston, internal

1шт.

Part of Seal Kit P/N A42886

1шт.

19

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing (C4) Piston, external

1шт.

Part of Seal Kit P/N A42886

1шт.

20

A62643

ELECTRICAL WIRE

WIRE - (C4) Piston sealing ring

1шт.

Part of Seal Kit P/N A42886

1шт.

A42886

SEAL KIT

seal, Includes: Ref. 10 and 18 - 20 on this Figure and Refs. on Figures 178 and 188

1шт.
