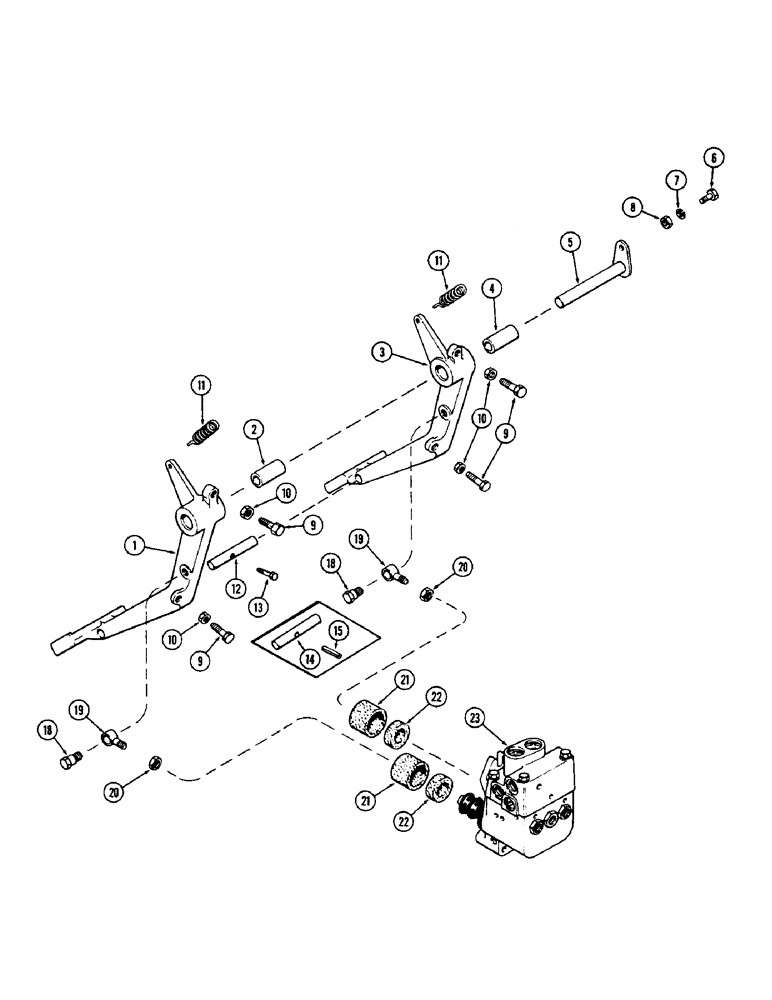

Запчасти Case IH 1370 (146) - POWER ASSIST BRAKE SYSTEM, BRAKE PEDALS AND CIRCUITRY (07) - BRAKES

1

A63370

PEDAL

ASSY, Brake (RH), Includes Ref 2

1шт.

2

A59475

BUSHING

Brake pedal

1шт.

3

A63371

PEDAL

ASSY, Brake (LH), Includes Ref 4

1шт.

4

A59475

BUSHING

Brake pedal

1шт.

5

A59452

SHAFT

Brake pedal pivot

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

10

25-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

11

A59470

SPRING

Brake pedal return

2шт.

12

A65344

PIN

Brake pedal lock (Replaces A63369)

1шт.

13

A65343

BOLT

Lock pin (5/16 x 1-1/2" N.C. hex.) (Replaces 138-138)

1шт.

14

A63369

PIN

Brake pedal lock (Order A65344 & A65343)

1шт.

15

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

18

A59152

STEP BOLT

Shoulder, brake pedal to master cylinder

2шт.

19

A63314

BOLT

Eye, push rod

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

2шт.

21

A61288

COLLAR

Air seal, outer

2шт.

22

A61287

COLLAR

Air seal, inner

2шт.

23

REF

INSTRUCTION

VALVE ASSY, Brake (w/differential lock) (See Figure 148)

1шт.

23

A64909

MASTER CYLINDER

CYLINDER,MASTER VALVE ASSY, Brake (w/o differential lock) (See Figure 152)

1шт.
