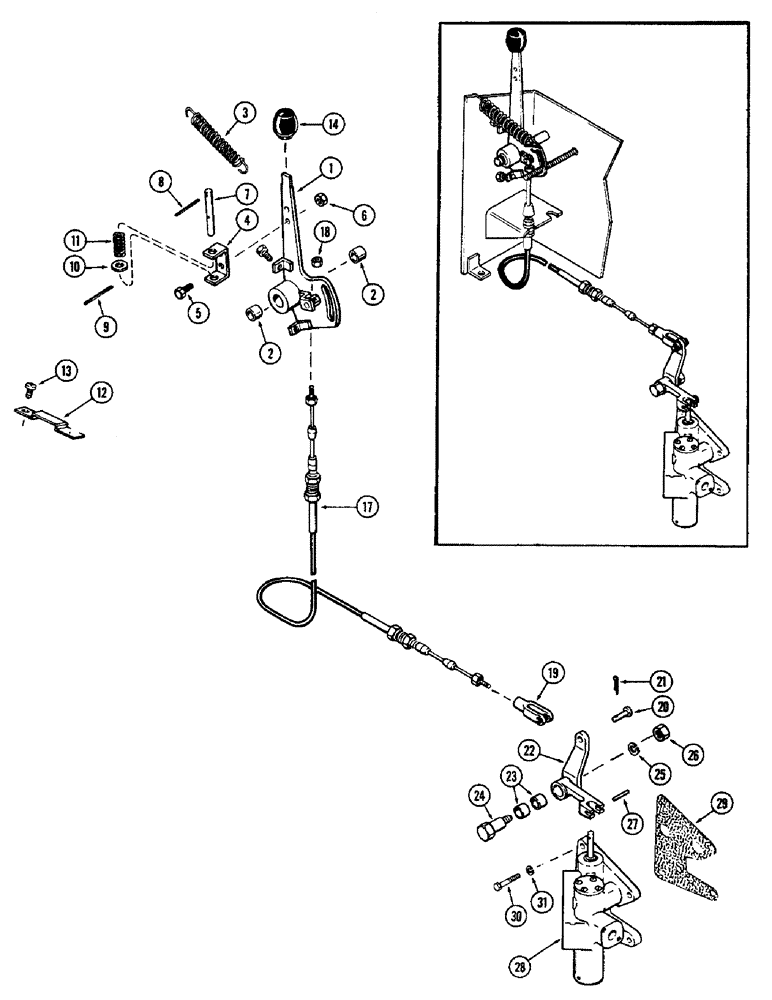

Запчасти Case IH 1370 (157A) - P.T.O. CONTROL LINKAGE, FIRST USED TRACTOR SERIAL NUMBER 8709725 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A65481
KIT
- positive "ON-OFF", P.T.O. control lever, Includes Ref: 1 - 13
1шт.
1
A65574
LEVER
ASSY. - hand, P.T.O., Includes Ref: 2
1шт.
2
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- P.T.O. hand lever
2шт.
3
A35789
SPRING
- return
1шт.
4
A65478
BRACKET
- lever lock pin
1шт.
5
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
Bracket Hex, 1/4"-20 x 5/8", G5, Full Thd
2шт.
6
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
7
A65479
PIN
- lever lock
1шт.
8
138-104
LOCK PIN,3/16" x 2", Slotted
PIN, , Upper 3/16" x 2", Slotted
1шт.
9
138-94
LOCK PIN,3/16" x 7/8", Slotted
PIN, (Lower) 3/16" x 7/8", Slotted
1шт.
10
195-529
WASHER,7/16", SAE
- plain, 15/32 x 15/16 x 5/64"
1шт.
11
A22712
SPRING
- lock pin (9/16" O.D. x 1-27/64" free length)
1шт.
12
A66387
LOCK
- hand lever (Replaces A65480)
1шт.
13
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
- self-tapping, #10 x 1/2" slotted truss. hd.
2шт.
14
A65699
KNOB
- hand lever (Replaces A62078)
1шт.
17
A63953
CABLE
- P.T.O. control
1шт.
18
193-1000
NUT,Keps, w/LW,#10-32
- cable to lever (#10 N.F. Keps)
1шт.
19
A63015
YOKE
- control cable
1шт.
20
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke 5/16" x .940"
1шт.
21
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
22
A63031
DIPPER
BELLCRANK ASSY. - P.T.O., Includes Ref: 23
1шт.
23
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- bellcrank
2шт.
24
A63026
BOLT
- bellcrank pivot
1шт.
25
92-6
LOCK WASHER,3/8"
1шт.
26
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
27
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, (Valve spool) 5/32" x 1", Slotted
1шт.
28
A65672
VALVE
ASSY. - P.T.O. & clutch regulator (Replaces A63357) (For repairs see Figure 158)
1шт.
29
A66113
GASKET
- regulator valve (Replaces A63357)
1шт.
30
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex.
4шт.
31
92-6
LOCK WASHER,3/8"
4шт.
Выбрано товаров: 30
