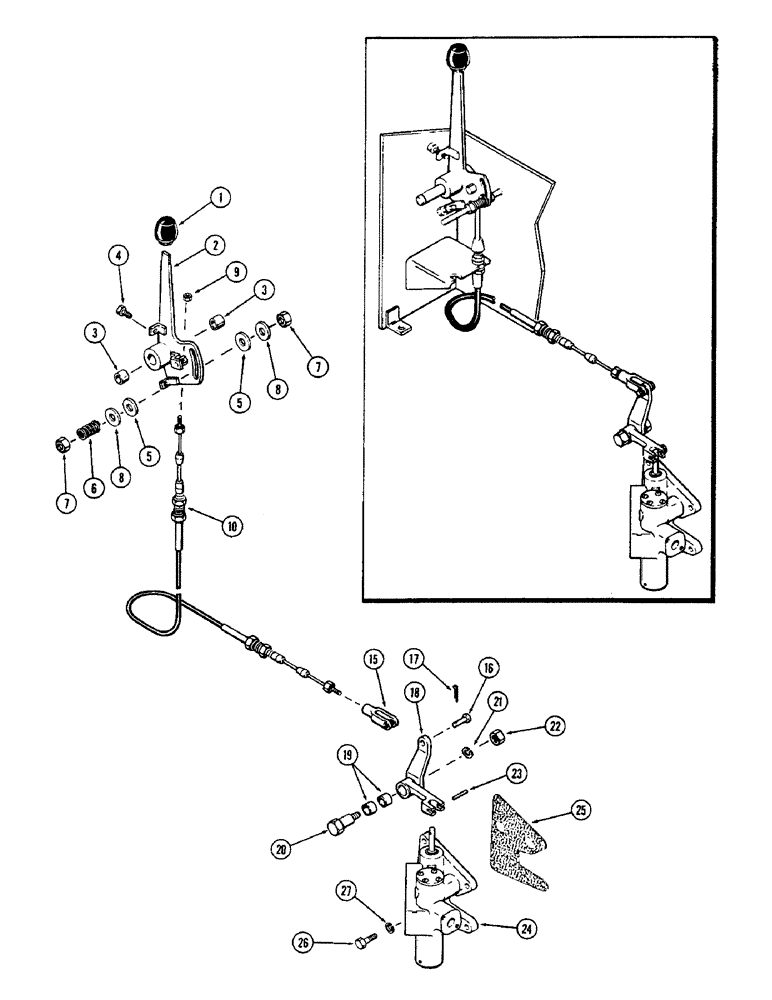

Запчасти Case IH 1370 (156) - P.T.O. CONTROL LINKAGE, USED PRIOR TO TRACTOR SERIAL NUMBER 8709725 (06) - POWER TRAIN

1

A65699

KNOB

- lever (Replaces A62078)

1шт.

2

A61072

LEVER

ASSY. - hand, P.T.O. (Order A65481 Figure 157A), Includes Ref: 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- P.T.O. hand lever

2шт.

4

A59463

BOLT

- (1/4 x 5/8" N.C., nylon insert), Lever stop

2шт.

5

A61069

DISC

- friction (25/64 x 1-1/4" x 1/8")

2шт.

6

A65583

SPRING

- friction disc (Replaces A26546)

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex. (3/8" N.C. jam, plated), Friction disc

2шт.

8

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 5/64")

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex. (#10 N.F. Keps, plated)

1шт.

10

A63953

CABLE

- P.T.O. control

1шт.

15

A63015

YOKE

- P.T.O. cable

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

18

A63031

DIPPER

BELLCRANK ASSY. - P.T.O., Includes Ref: 19

1шт.

19

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- bellcrank

2шт.

20

A63026

BOLT

- bellcrank

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

A65672

VALVE

ASSY. - P.T.O. & clutch regulator (Replaces A63353) (For repairs see Figure 158)

1шт.

25

A66113

GASKET

- regulator valve (Replaces A63357)

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.), Valve to trans. case

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.
