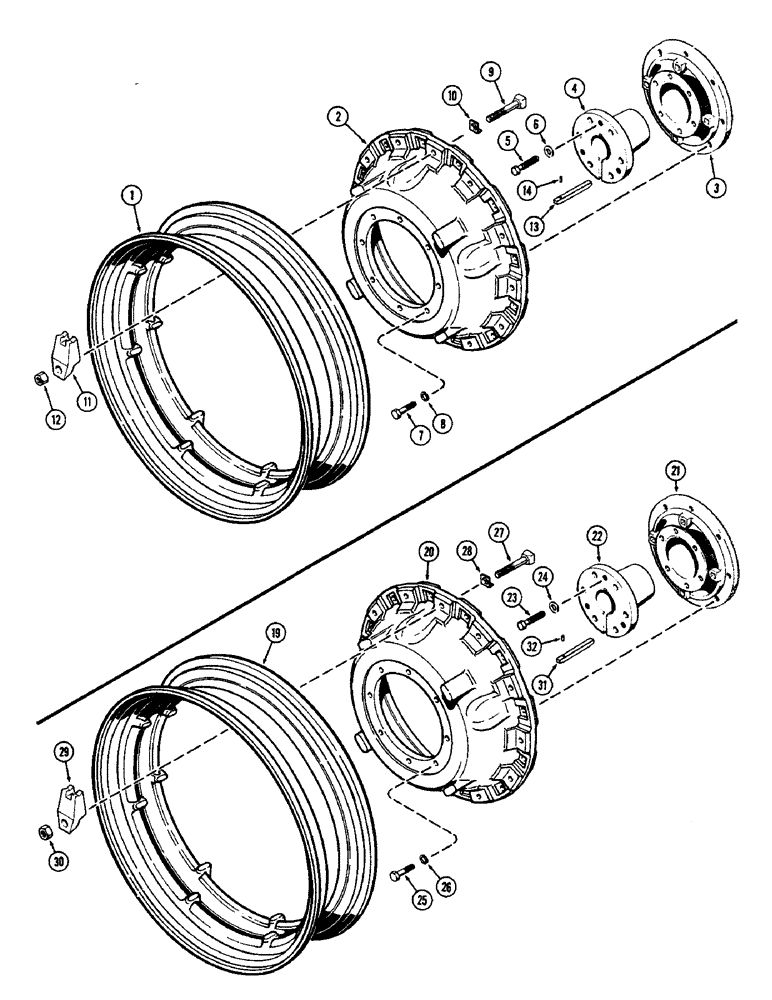

Запчасти Case IH 1370 (142) - DUAL REAR WHEELS, USED WITH 42 INCH RIMS (06) - POWER TRAIN

1

A61935

RIM

- rear (Use w/12.4-42 tire), used w/3-1/2" dia. axle shaft

4шт.

2

A65417

WHEEL

- rear (Replaces A63808), used w/3-1/2" dia. axle shaft

4шт.

3

A59791

HUB

- universal (3-1/2" taper), used w/3-1/2" dia. axle shaft

4шт.

4

A59792

HUB

BUSHING - rear wheel hub, used w/3-1/2" dia. axle shaft

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C.), Bushing to hub, used w/3-1/2" dia. axle shaft

24шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/3-1/2" dia. axle shaft

24шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub, used w/3-1/2" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

32шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-1/2" dia. axle shaft 5/8"

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-1/2" dia. axle shaft

48шт.

10

A34799

LOCK WASHER

- lock, bolt clamp, plated, used w/3-1/2" dia. axle shaft

48шт.

11

A61934

CLAMP

- double ramp, used w/3-1/2" dia. axle shaft

48шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-1/2" dia. axle shaft

48шт.

13

A34890

BUCKET TOOTH KEY

KEY - rear wheel to axle shaft, used w/3-1/2" dia.

4шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Shaft key, used w/3-1/2" dia. axle 1/4" x 1/2", Slotted

4шт.

19

A61935

RIM

- rear (Use w/12.4-42 tire), used w/3-7/8" dia. axle shaft

4шт.

20

A65417

WHEEL

- rear (Replaces A63808), used w/3-7/8" dia. axle shaft

4шт.

21

A63804

HUB

- universal (3-7/8" taper), used w/3-7/8" dia. axle shaft

4шт.

22

A63805

BUSHING

- rear wheel hub, used w/3-7/8" dia. axle shaft

4шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C.), Bushing to hub, used w/3-7/8" dia. axle shaft

24шт.

24

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/3-7/8" dia. axle shaft

24шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub, used w/3-7/8" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

32шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-7/8" dia. axle shaft 5/8"

32шт.

27

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-7/8" dia. axle shaft

48шт.

28

A34799

LOCK WASHER

- lock, bolt clamp, plated, used w/3-7/8" dia. axle shaft

48шт.

29

A61934

CLAMP

- double ramp, used w/3-7/8" dia. axle shaft

48шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-7/8" dia. axle shaft

48шт.

31

A63219

KEY

- rear wheel to axle shaft, used w/3-7/8" dia.

4шт.

32

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key, used w/3-7/8" dia. axle shaft 1/4" x 1/2", Slotted

4шт.
