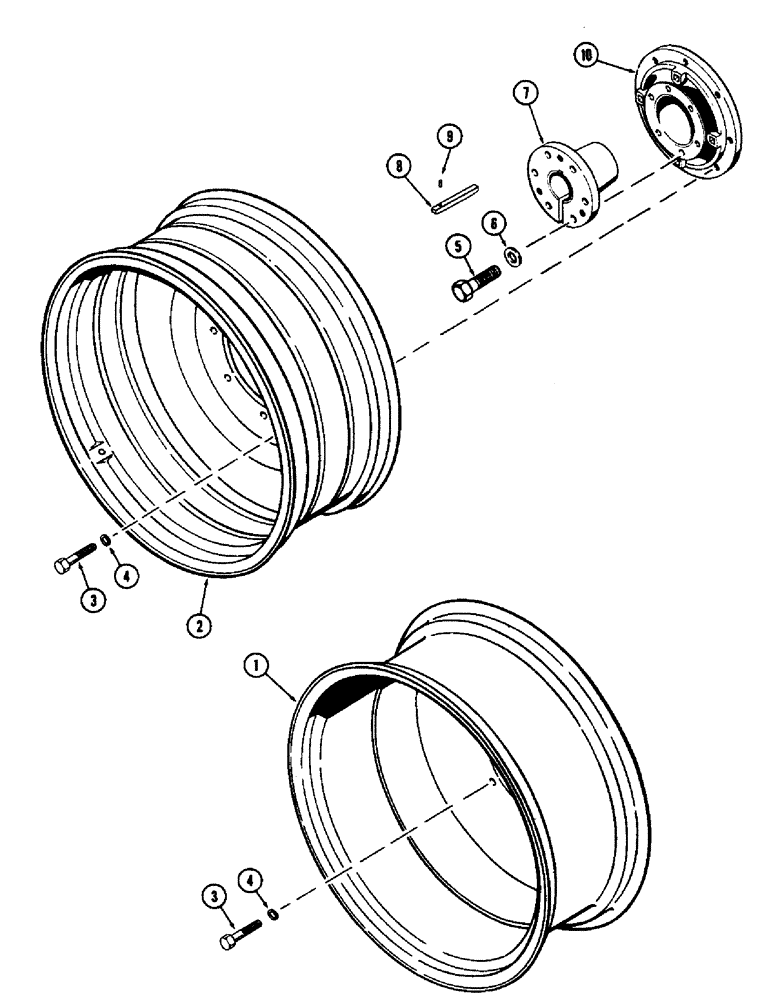

Запчасти Case IH 1370 (141A) - OUTER DUAL STEEL REAR WHEELS, USED W/ 3-1/2 INCH OR 3-7/8 INCH DIAMETER AXLE SHAFT AND 38 INCH RIMS (06) - POWER TRAIN

1

A64838

WHEEL - steel (Use w/16 x 38 rim) (Order A65473)

2шт.

1

A64841

WHEEL - steel (Use w/18 x 38 rim) (Order A65474)

2шт.

2

A65473

WHEEL

- steel (Use w/16 x 38 rim)

2шт.

2

A65474

WHEEL

- steel (Use w/18 x 38 rim)

2шт.

3

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.)

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

7

A59792

HUB

BUSHING - (Used w/3-1/2" dia. axle shaft)

2шт.

7

A63805

BUSHING

- (Used w/3-7/8" dia. axle shaft)

2шт.

8

A34890

BUCKET TOOTH KEY

KEY - (Used w/3-1/2" dia. axle shaft)

2шт.

8

A63219

KEY

- (Used w/3-7/8" dia. axle shaft)

2шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub 1/4" x 1/2", Slotted

2шт.

10

A59791

HUB

- tapered (Used w/3-1/2" dia. axle shaft)

2шт.

10

A63804

HUB

- (Used w-3-7/8" dia. axle shaft)

2шт.
