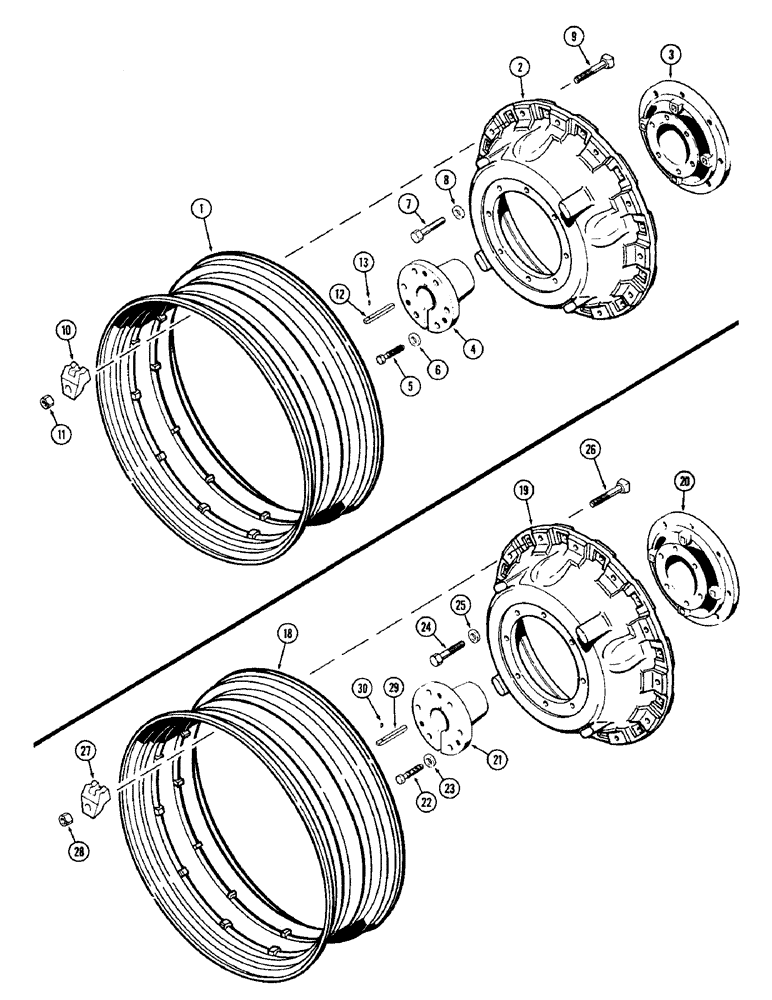

Запчасти Case IH 1370 (140) - DUAL REAR WHEELS, USED WITH 38 INCH RIMS (06) - POWER TRAIN

1

A61576

RIM

- rear wheel (Use w/16.9-38 tire), used w/3-1/2" dia. axle shaft

4шт.

1

A61577

RIM

- rear wheel (Use w/18.4-38 tire), used w/3-1/2" dia. axle shaft

4шт.

2

A65417

WHEEL

- rear (Replaces A63808), used w/3-1/2" dia. axle shaft

4шт.

3

A59791

HUB

- tapered (3-1/2" taper), used w/3-1/2" dia. axle shaft

4шт.

4

A59792

HUB

BUSHING - rear wheel hub, used w/3-1/2" dia. axle shaft

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), Bushing to hub, used w/3-1/2" dia. axle shaft

24шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/3-1/2" dia. axle shaft

24шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used w/3-1/2" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

32шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-1/2" dia. axle shaft 5/8"

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-1/2" dia. axle shaft

48шт.

10

A57654

CLAMP

- double ramp, rim to wheel, used w/3-1/2" dia. axle shaft

48шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-1/2" dia. axle shaft

48шт.

12

A34890

BUCKET TOOTH KEY

KEY - rear wheel hub, used w/3-1/2" dia. axle shaft

4шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub, used w/3-1/2" dia. axle shaft 1/4" x 1/2", Slotted

4шт.

18

A61576

RIM

- rear wheel (Use w/16.9-38 tire), used w/3-7/8" dia. axle shaft

4шт.

18

A61577

RIM

- rear wheel (Use w/18.4-38 tire), used w/3-7/8" dia. axle shaft

4шт.

18

A61578

RIM

- rear wheel (Use w/20.8-38 tire), used w/3-7/8" dia. axle shaft

4шт.

19

A65417

WHEEL

- rear (Replaces A63808), used w/3-7/8" dia. axle shaft

4шт.

20

A63804

HUB

- universal, used w/3-7/8" dia. axle shaft

4шт.

21

A63805

BUSHING

- rear wheel hub, used w/3-7/8" dia. axle shaft

4шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C.), Bushing to hub, used w/3-7/8" dia. axle shaft

24шт.

23

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/3-7/8" dia. axle shaft

24шт.

24

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used w/3-7/8" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

32шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-7/8" dia. axle shaft 5/8"

32шт.

26

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-7/8" dia. axle shaft

48шт.

27

A57654

CLAMP

- double ramp, rim to wheel, used w/3-7/8" dia. axle shaft

48шт.

28

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-7/8" dia. axle shaft

48шт.

29

A63219

KEY

- rear wheel hub, used w/3-7/8" dia. axle shaft

4шт.

30

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub, used w/3-7/8" dia. axle shaft 1/4" x 1/2", Slotted

4шт.
