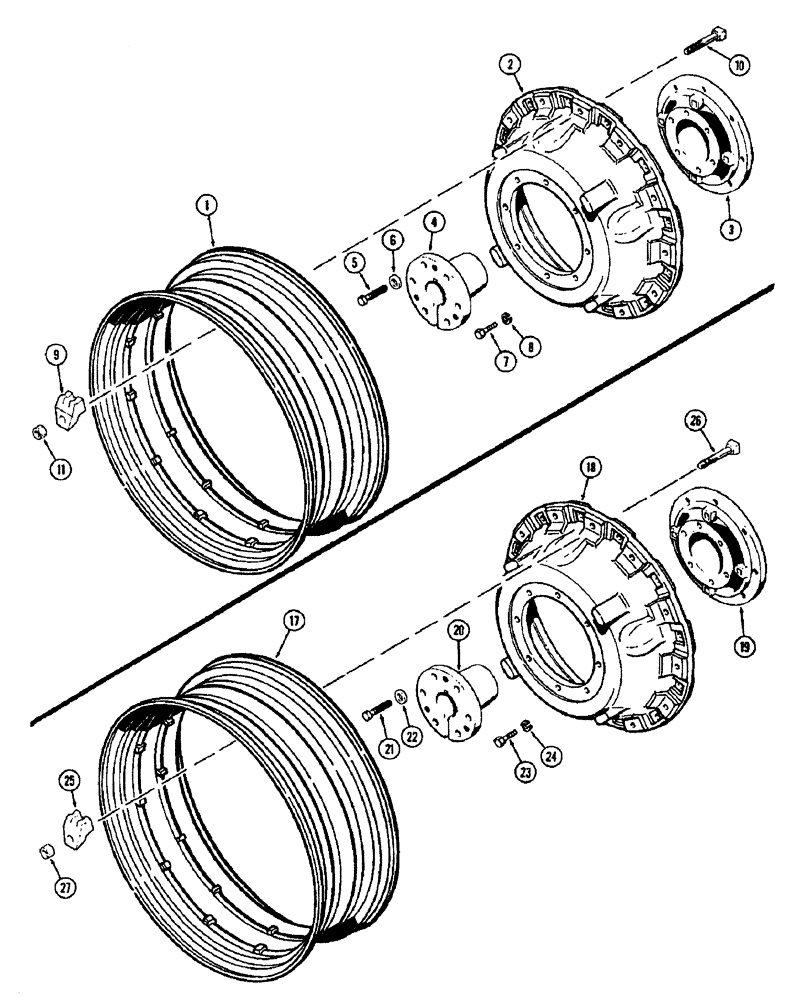

Запчасти Case IH 1370 (136) - REAR WHEELS WITH 38 INCH RIMS (06) - POWER TRAIN

1

A61576

RIM

- rear wheel (Use w/16.9-38 tire), used w/3-1/2" dia. axle shaft

2шт.

1

A61577

RIM

- rear wheel (Use w/18.4-38 tire), used w/3-1/2" dia. axle shaft

2шт.

1

A61578

RIM

- rear wheel (Use w/20.8-38 tire), used w/3-1/2" dia. axle shaft

2шт.

2

A65417

WHEEL

- rear (Replaces A63808), used w/3-1/2" dia. axle shaft

2шт.

3

A59791

HUB

- universal (3-1/2" taper), used w/3-1/2" dia. axle shaft

2шт.

4

A59792

HUB

BUSHING - rear wheel, used w/3-1/2" dia. axle shaft

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), used w/3-1/2" dia. axle shaft

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"), used w/3-1/2" dia. axle shaft

12шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.) Wheel to hub, used w/3-1/2" dia. axle shaft

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-1/2" dia. axle shaft 5/8"

16шт.

9

A57654

CLAMP

- double ramp, rim to wheel, used w/3-1/2" dia. axle shaft

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-1/2" dia. axle shaft

24шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-1/2" dia. axle shaft

24шт.

17

A61576

RIM

- rear wheel (Use w/16.9-38 tire), used w/3-7/8" dia. axle shaft

2шт.

17

A61577

RIM

- rear wheel (Use w/18.4-38 tire), used w/3-7/8" dia. axle shaft

2шт.

17

A61578

RIM

- rear wheel (Use w/20.8-38 tire), used w/3-7/8" dia. axle shaft

2шт.

18

A65417

WHEEL

- rear (Replaces A63808), used w/3-7/8" dia. axle shaft

2шт.

19

A63804

HUB

- universal (3-7/8" taper), used w/3-7/8" dia. axle shaft

2шт.

20

A63805

BUSHING

- rear wheel hub, used w/3-7/8" dia. axle shaft

2шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), used w/3-7/8" dia. axle shaft

12шт.

22

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/3-7/8" dia. axle shaft

12шт.

23

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.) Wheel to hub, used w/3-7/8" dia. axle shaft

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/3-7/8" dia. axle shaft 5/8"

16шт.

25

A57654

CLAMP

- double ramp, rim to wheel, used w/3-7/8" dia. axle shaft

24шт.

26

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used w/3-7/8" dia. axle shaft

24шт.

27

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C. plated), used w/3-7/8" dia. axle shaft

24шт.
