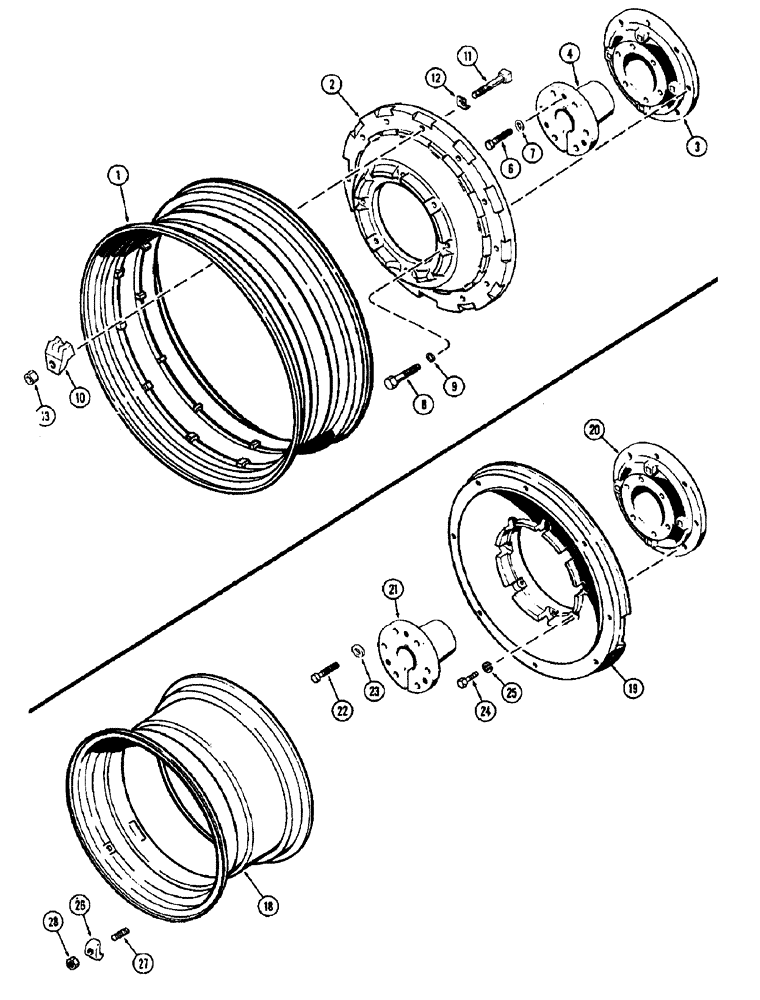

Запчасти Case IH 1370 (134) - REAR WHEELS WITH 34 INCH RIMS, USED WITH 3-7/8 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A63810

RIM

- rear wheel, use w/20.8 x 34 tire

2шт.

2

A63809

WHEEL

- rear, use w/20.8 x 34 tire

2шт.

3

A63804

HUB

- universal (3-7/8" tapered), use w/20.8 x 34 tire

2шт.

4

A63805

BUSHING

- rear wheel hub, use w/20.8 x 34 tire

2шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), use w/20.8 x 34 tire

12шт.

7

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), use w/20.8 x 34 tire

12шт.

8

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.), use w/20.8 x 34 tire

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Use w/20.8 x 34 tire 5/8"

16шт.

10

A57654

CLAMP

- double ramp (Rim to wheel), use w/20.8 x 34 tire

24шт.

11

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C. square head), use w/20.8 x 34 tire

24шт.

12

A34799

LOCK WASHER

- lock, clamp bolt, use w/20.8 x 34 tire

24шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.), use w/20.8 x 34 tire

24шт.

18

A33460

RIM

- rear wheel, use w/23.1 x 34 tire

2шт.

19

A57686

WHEEL

- rear, use w/23.1 x 34 tire

2шт.

20

A63804

HUB

- universal (3-7/8" tapered), use w/23.1 x 34 tire

2шт.

21

A63805

BUSHING

- rear wheel hub, use w/23.1 x 34 tire

2шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), use w/23.1 x 34 tire

12шт.

23

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), use w/23.1 x 34 tire

12шт.

24

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.), use w/23.1 x 34 tire

16шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Use w/23.1 x 34 tire 5/8"

16шт.

26

F62001

CLAMP

- rear wheel rim, use w/23.1 x 34 tire

16шт.

27

A60047

STUD

- rear wheel rim, use w/23.1 x 34 tire

16шт.

28

A27183

NUT

- stud, use w/23.1 x 34 tire

16шт.
