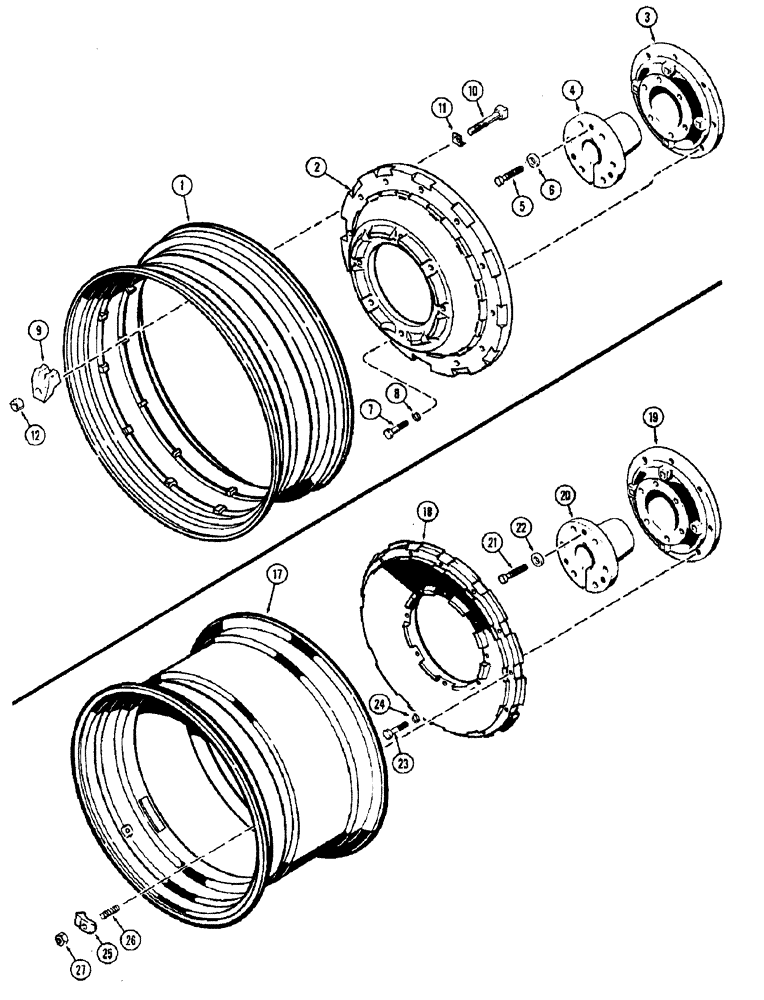

Запчасти Case IH 1370 (132) - REAR WHEELS WITH 34 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A63810

RIM

- rear wheel (Use w/20.8-34 tire)

2шт.

2

A63809

WHEEL

- rear (Use w/20.8-34 tire) (29" O.D.)

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing), use w/20.8 x 34 tire

2шт.

4

A59792

HUB

BUSHING - (3-1/2" taper) Rear wheel hub, use w/20.8 x 34 tire

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), use w/20.8 x 34 tire

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), use w/20.8 x 34 tire

12шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.), Wheel to hub, use w/20.8 x 34 tire

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Use w/20.8 x 34 tire 5/8"

16шт.

9

A57654

CLAMP

- double ramp (Rim to wheel), use w/20.8 x 34 tire

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), use w/20.8 x 34 tire

24шт.

11

A34799

LOCK WASHER

- lock, clamp bolt, use w/20.8 x 34 tire

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.), use w/20.8 x 34 tire

24шт.

17

A33460

RIM

- rear wheel (Use w/23.1-34 tire)

2шт.

18

A57686

WHEEL

- rear (Use w/23.1-34 tire) (30.69" O.D.)

2шт.

19

A59791

HUB

- universal (3-1/2 tapered bushing), use w/23.1 x 34 tire

2шт.

20

A59792

HUB

BUSHING - (3-1/2" taper), use w/23.1 x 34 tire

2шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex., bushing to hub, use w/23.1 x 34 tire

12шт.

22

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), use w/23.1 x 34 tire

12шт.

23

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex. (5/8 x 2-3/4" N.C.), Wheel to hub, use w/23.1 x 34 tire

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Use w/23.1 x 34 tire 5/8"

16шт.

25

F62001

CLAMP

- rear wheel rim, use w/23.1 x 34 tire

16шт.

26

A60047

STUD

- rear wheel rim, use w/23.1 x 34 tire

16шт.

27

A27183

NUT

- stud, rear wheel rim, use w/23.1 x 34 tire

16шт.
