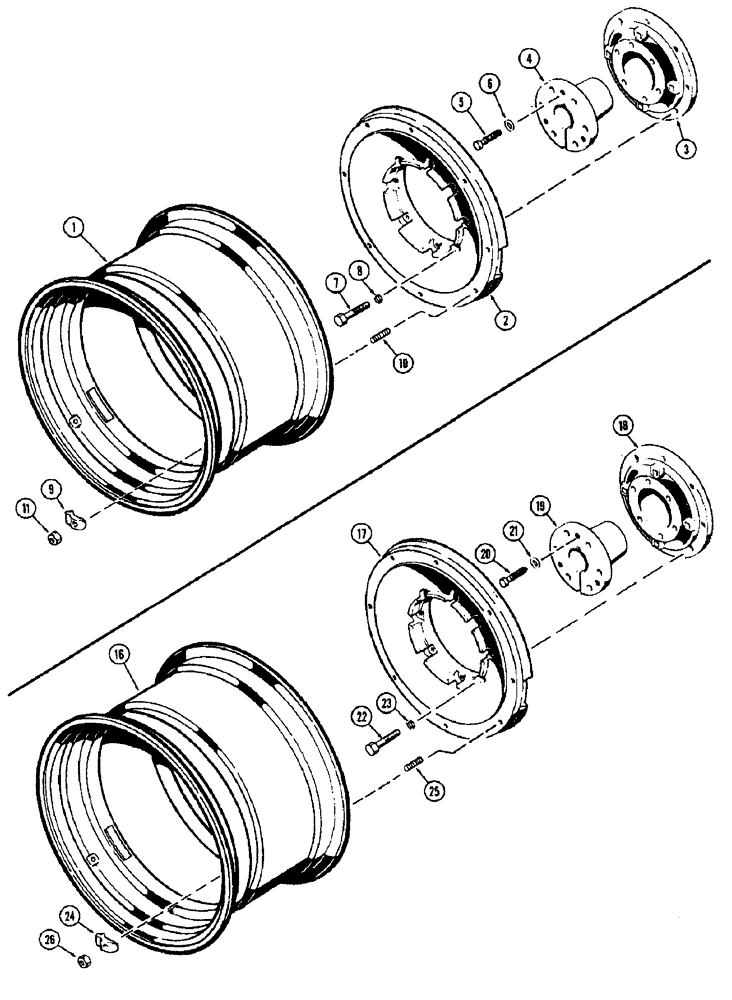

Запчасти Case IH 1370 (130) - REAR WHEELS WITH 32 INCH RIMS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A63807
RIM
- rear wheel (Use w/24.5-32 tire), used w/3-1/2" dia. axle shaft
2шт.
2
A63083
RING, SNAP
WHEEL - rear (Use w/24.5-32 tire) (28.69 O.D.), used w/3-1/2" dia. axle shaft
2шт.
3
A59791
HUB
- universal (3-1/2" tapered bushing), used w/3-1/2" dia. axle shaft
2шт.
4
A59792
HUB
BUSHING - (3-1/2" tapered), used w/3-1/2" dia. axle shaft
2шт.
5
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - (3/4 x 4-1/2" N.C. hex.), used w/3-1/2" dia. axle shaft
12шт.
6
D31328
WASHER
- (49/64 x 1-5/8 x 1/4"), used w/3-1/2" dia. axle shaft
12шт.
7
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
Used w/3-1/2" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5
16шт.
9
F62001
CLAMP
- rear wheel rim, used w/3-1/2" dia. axle shaft
16шт.
10
A60047
STUD
- rear wheel rim, used w/3-1/2" dia. axle shaft
16шт.
11
A27183
NUT
- stud, rear wheel rim, used w/3-1/2" dia. axle shaft
16шт.
16
A63807
RIM
- rear wheel (Use w/24.5-32 tire), used w/3-7/8" dia. axle shaft
2шт.
17
A63083
RING, SNAP
WHEEL - rear (Use w/24.5-32 tire) (28.69 O.D.), used w/3-7/8" dia. axle shaft
2шт.
18
A63804
HUB
- universal, used w/3-7/8" dia. axle shaft
2шт.
19
A63805
BUSHING
- rear wheel hub, used w/3-7/8" dia. axle shaft
2шт.
20
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - (3/4 x 4-1/2" N.C. hex.), used w/3-7/8" dia. axle shaft
12шт.
21
D31328
WASHER
- plain (3/4"), used w/3-7/8" dia. axle shaft
12шт.
22
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
Used w/3-7/8" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5
16шт.
24
F62001
CLAMP
- rear wheel rim, used w/3-7/8" dia. axle shaft
16шт.
25
A60047
STUD
- rear wheel rim, used w/3-7/8" dia. axle shaft
16шт.
26
A27183
NUT
- stud, rear wheel rim, used w/3-7/8" dia. axle shaft
16шт.
Выбрано товаров: 22
