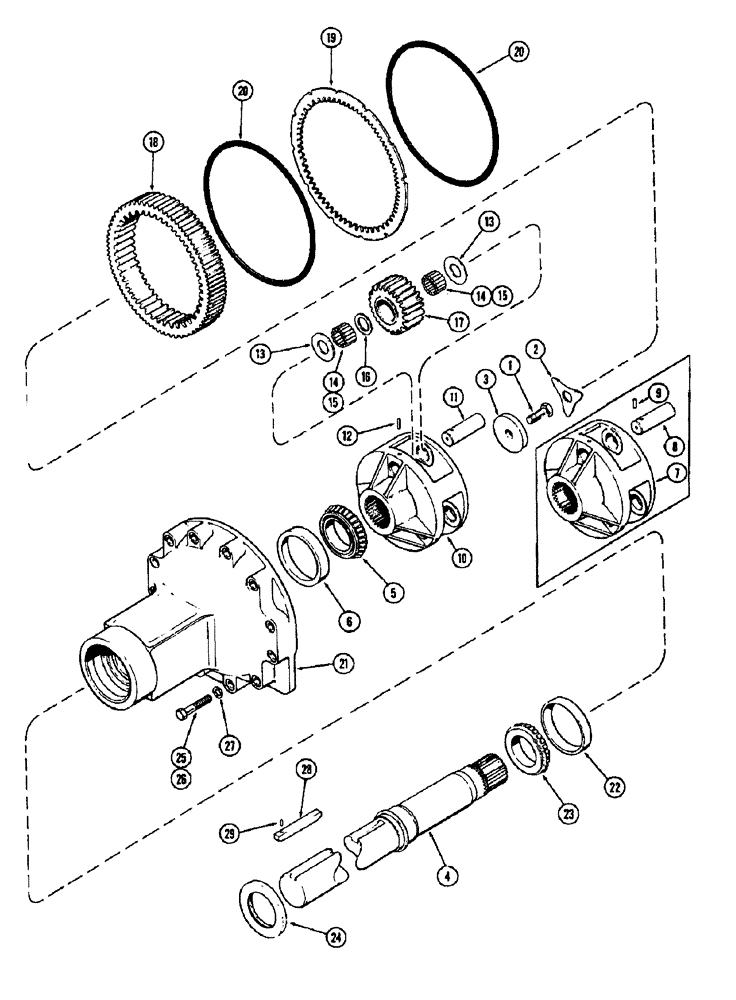

Запчасти Case IH 1370 (128) - REAR AXLE HOUSING AND PLANET GEARS, 3-7/8 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- (7/8 x 2-1/4" N.C. hex.) Retaining plate to shaft

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A63213

SHAFT

- rear axle

2шт.

5

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE - bearing

2шт.

6

A63214

CUP

- bearing, tapered

2шт.

7

A63223

CARRIER

- planet gear (Order ref. 10, 11 & 12)

2шт.

8

A66059

PIN

- planet gear (w/1/4" hole) (Order ref. 11 & 12)

6шт.

9

138-2005

PIN,1/4" x 1", Coiled

(See ref. 12) 1/4" x 1", Coiled

6шт.

10

A66506

CARRIER

- planet gear (Replaces A63223)

1шт.

11

A66507

PIN

- planet gear (w/3/8" hole) (Replaces A66059)

6шт.

12

138-2006

PIN,3/8" x 1", Coiled

6шт.

13

A63228

WASHER

- planet pin roller

12шт.

14

A43664

KIT

- planet gear roller, Includes Ref: 15

6шт.

15

NSS

NOT SOLD SEPARAT

BEARING - roller, planet gear

38шт.

16

A63227

SPACER

- roller bearing separator

6шт.

17

A65322

GEAR

- planet, rear axle (Replaces A63224)

6шт.

18

A63229

GEAR

- planetary ring

2шт.

19

A63222

PLATE

- torque reaction, axle hsg. to trans. case

2шт.

20

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- rear axle

4шт.

21

A63212

HOUSING

- rear axle

2шт.

22

A63215

CUP

- bearing, tapered

2шт.

23

A63217

ROLLER BEARING,100 mm ID x 160 mm OD x 41.20 mm

CONE - bearing

2шт.

24

A63218

OIL SEAL

- oil, rear axle, out board

2шт.

25

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- (5/8 x 4-1/2" N.C. hex.) Axle hsg. to trans. case

18шт.

26

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- (5/8 x 4-3/4" N.C. hex.)

6шт.

27

A64303

WASHER

- hardened steel

24шт.

28

A63219

KEY

- rear wheel to axle shaft

2шт.

29

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Shaft key 1/4" x 1/2", Slotted

2шт.
