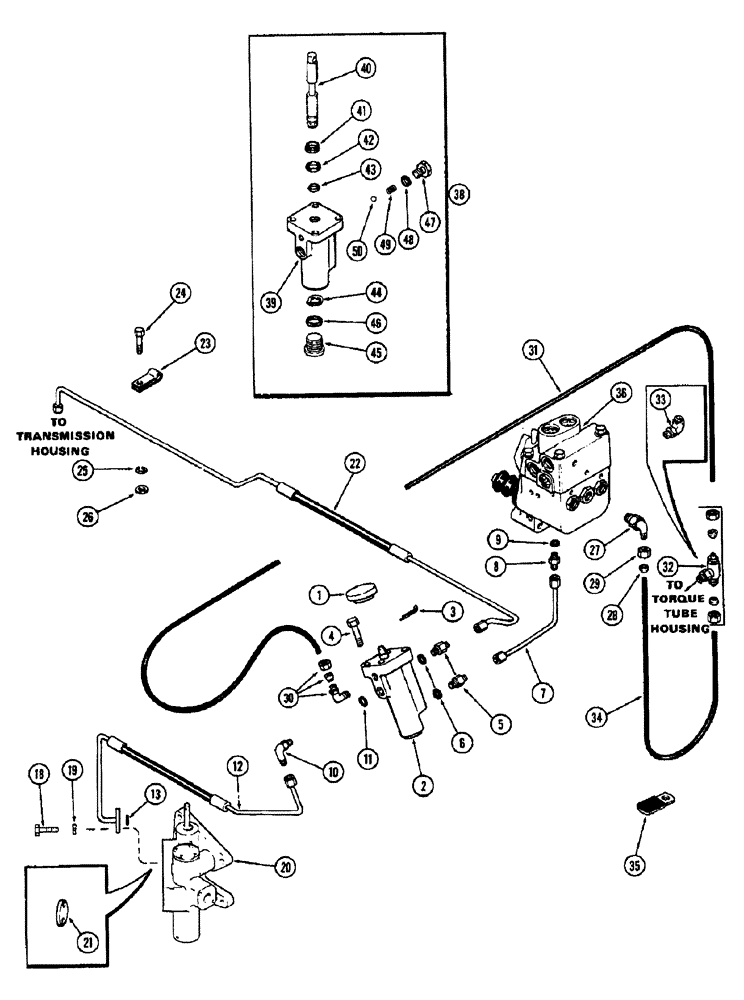

Запчасти Case IH 1370 (122) - DIFFERENTIAL, DIFFERENTIAL LOCK MECHANISM (06) - POWER TRAIN

1

A63661

PEDAL

Differential lock valve

1шт.

2

A63657

LOCK VALVE

ASSY, differential lock (Used with differential lock only) (For repairs see item 38)

1шт.

3

132-52

COTTER PIN,1/8" x 1 1/2"

Pedal to shaft

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl. Ref. 6

2шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

A63664

PIPE

TUBE - brake valve to lock valve

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl. Ref. 9

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY, 90 degrees adjustable (In differential lock valve), Includes Ref 11

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

A63665

HOSE

Regulator valve to differential lock valve

1шт.

13

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

(.375 x .562 x .090")

1шт.

18

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

2шт.

20

REF

INSTRUCTION

VALVE ASSY, PTO clutch & regulator (Order from page 158)

1шт.

21

A63672

CAP

"2 bolt" flange (Used without differential lock)

1шт.

22

A63668

HOSE

Differential lock, Serial Range: valve-trans.

1шт.

23

A63669

CLIP

, Serial Range: Hose-transmission

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

PTO actuating tube clamp to trans. case top)

1шт.

25

92-4

LOCK WASHER,1/4"

1шт.

26

95-4

WASHER,1/4"

1шт.

27

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY, 90 degree male (In brake valve), Includes Ref 28 and 29

1шт.

28

222-5186

SLEEVE,3/8" Tube

1шт.

29

222-5181

NUT,9/16"-24

(For 3/8" tube)

1шт.

30

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - lock valve, 3/8" tube x 1/8" P.T. 90 degrees (Replaces straight coupling 222-5100)

1шт.

31

A63997

TUBE

(3/8" dia. nylon) (Diff. lock, Serial Range: valve-sump)

1шт.

32

222-5190

TEE,7/16"-24 x 3/8" NPT Run

(In torque tube)

1шт.

33

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - 90 degree male (In torque tube) (Used without diff. lock)

1шт.

34

A64389

TUBE

Brake, Serial Range: valve-sump

1шт.

35

A37179

CLIP

CLAMP - tube (On bolt on "2 bolt" flange on LH side of torque tube)

1шт.

36

REF

INSTRUCTION

VALVE ASSY, power brake (Order from Figure 148 or 152)

1шт.

38

A63657

LOCK VALVE

ASSY, differential lock, Includes Ref: 39 - 49

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve, differential lock, assembly

1шт.

40

A63659

SPOOL

Valve, differential lock, assembly

1шт.

41

A63660

RING

Wiper, differential lock valve assembly

1шт.

42

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(13/16 x 5/8 x 3/32"), differential lock valve assembly

1шт.

43

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

(7/16 x 5/8 x 3/32"), differential lock valve assembly

1шт.

44

G33052

SNAP RING,#62, Ext

Differential lock valve assembly

1шт.

45

9841223

PLUG,1-1/16" - 12 ORB

ASSY, 3/4" tube OD, differential lock valve

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Differential lock valve assembly

1шт.

47

9672438

PLUG,7/16" - 20 ORB

Assy (1/4" tube OD), Differential lock valve

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Differential lock valve assembly

1шт.

49

B51407

SPRING

Compression, differential lock valve assembly

1шт.

50

211-11

BALL,3/8" Dia

Differential lock valve assembly

1шт.

A43711

KIT

Seal (Includes items 41, 42, 43, 46 & 48), differential lock valve assembly

1шт.
