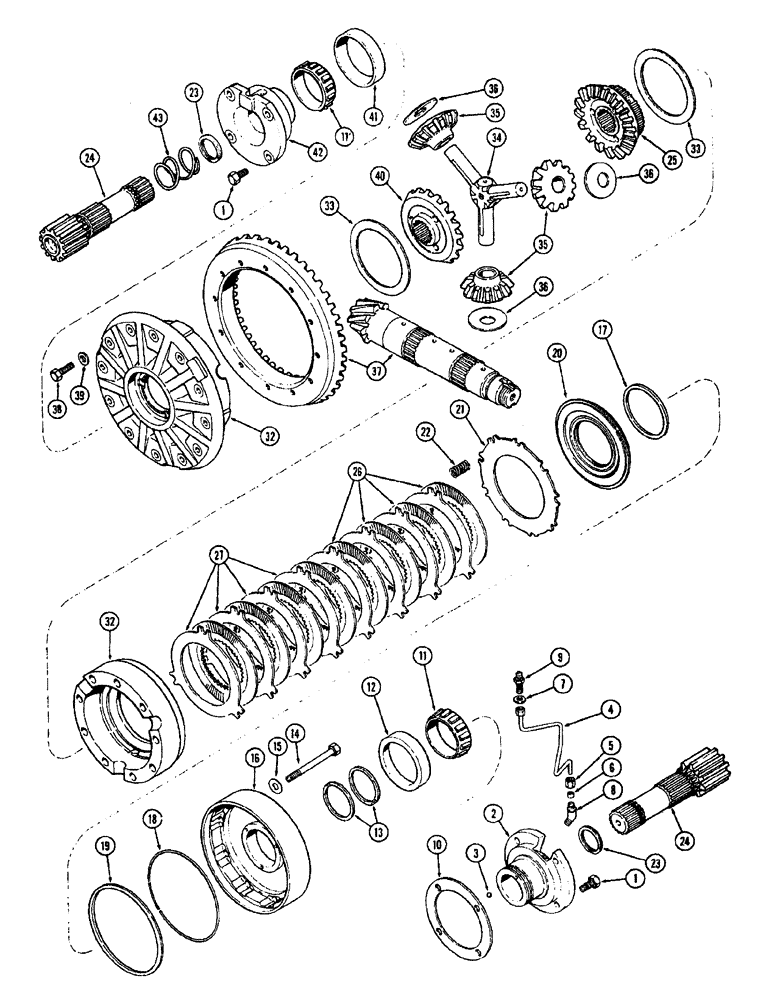

Запчасти Case IH 1370 (116) - DIFFERENTIAL, BEARING CARRIER, CAGE, SIDE GEAR AND SHAFT (06) - POWER TRAIN

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bearing carrier to trans. case Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

2

A66499

CARRIER

ASSY. - differential bearing (L.H.), Includes Ref: 3

1шт.

3

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

4

A64877

TUBE

ASSY. - oil, differential lock clutch (Used w/diff. lock only), Includes Ref: 5 - 7

1шт.

5

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

6

222-102

SLEEVE,1/4" Tube

1шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - bulkhead fitting (Used w/diff. lock only)

1шт.

8

222-4091

FITTING

ELBOW - (45 degrees, 1/4 x 1/8" P.T.) Oil supply tube, L.H. bearing carrier (Used w/diff. lock only)

1шт.

9

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- 1/4" tube x 7/16"-20 (Used w/diff. lock only)

1шт.

10

A63186

SHIM,.015" Thk

Differential brg. carrier .015" Thk

1шт.

10

A63187

SHIM,.007" Thk

Differential brg. carrier .007" Thk

1шт.

10

A63188

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

11

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - differential bearing carrier

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential lock cage

1шт.

13

A63192

RING

- seal, L.H. bearing carrier (Used w/diff. lock only)

2шт.

14

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

- (5/8 x 6-1/4" N.C. hex.) (Differential lock cage to intermediate & ring gear cage)

9шт.

15

A64303

WASHER

- steel

9шт.

16

A63170

CAGE

- differential lock

1шт.

17

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, differential lock piston lip (Used w/diff. lock only)

1шт.

18

A62642

ELECTRICAL WIRE

WIRE - seal, differential lock piston lip (Used w/diff. lock only)

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, differential lock piston lip (Used w/diff. lock only)

1шт.

20

A66359

PISTON

- lock (w/diff. lock only) (Replaces A63094)

1шт.

21

A63173

PLATE

- differential lock piston return spring (Used w/diff. lock only)

1шт.

22

A63172

SPRING

- return, differential lock piston (Used w/diff. lock only)

3шт.

23

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, differential shaft

2шт.

24

A63194

SHAFT

- differential with sun gear

2шт.

25

A65969

GEAR

- differential bevel side (L.H.) (Replaces A63177)

1шт.

26

A63174

PLATE

- differential lock clutch (Sintered) (Used w/diff. lock only)

8шт.

27

A63175

PLATE

- differential lock clutch (Steel) (Used w/diff. lock only)

8шт.

32

A63182

HOUSING

CAGE ASSY. - differential (Matched set)

1шт.

33

A64235

WASHER

- thrust, differential side gear

2шт.

34

A63179

PIN

- differential pinion

1шт.

35

A65967

GEAR

- differential pinion bevel (Replaces A63180)

3шт.

36

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

- thrust, differential pinion gear

3шт.

37

A63122

GEAR

SET - pinion & spiral bevel (Matched set)

1шт.

38

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.) (Gear to ring gear cage)

12шт.

39

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- differential ring gear

12шт.

40

A65968

GEAR

- differential bevel side (R.H.) (Replaces A63176)

1шт.

41

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential ring gear cage (R.H. side)

1шт.

42

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

- differential bearing (R.H.)

1шт.

43

A63201

SPRING

SLINGER - oil, differential shaft (R.H. side only)

1шт.
