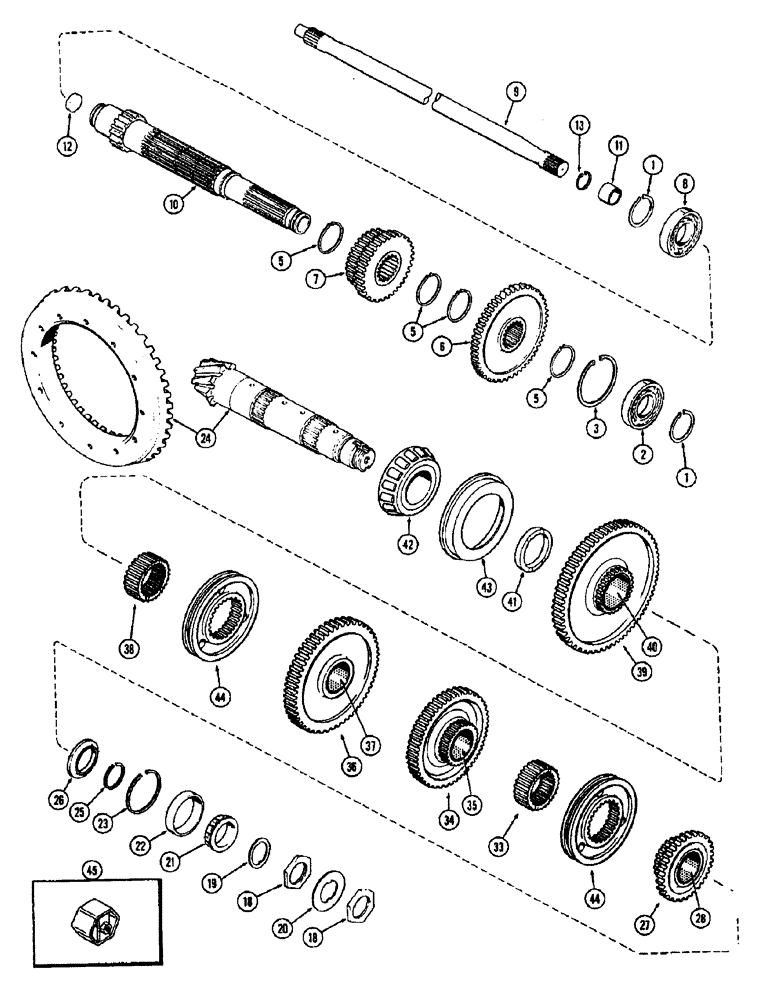

Запчасти Case IH 1370 (114) - CLUTCH, PLANETARY OUTPUT (06) - POWER TRAIN

1

39326

SNAP RING,#215, Ext

Ring, Snap, #215, Ext

2шт.

2

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, output shaft

1шт.

3

A63117

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

1шт.

5

A63115

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A63114

GEAR

- driver, 4th

1шт.

7

A63113

GEAR

- driver, 2nd & 3rd

1шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, planetary shaft

1шт.

9

A64005

SHAFT - power input

1шт.

10

A63110

SHAFT

ASSY. - planetary output, Includes Ref: 11

1шт.

11

A63112

BUSHING

- P.T.O. support

1шт.

12

41-1024

PLUG,Cup, 1 1/2"

- Mercury (1-1/2" dia.) (Used w/o P.T.O.)

1шт.

13

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , plug (used w/o P.T.O.) 1.50", Int, #150

1шт.

18

A63156

LOCK NUT

- lock, spiral bevel pinion, countershaft

2шт.

19

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - thrust, bearing, countershaft

1шт.

20

A63155

LOCK WASHER

- locking, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, countershaft, front

1шт.

22

A61446

BEARING CUP

CUP - counter shaft, front

1шт.

23

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, internal, countershaft

1шт.

24

A63122

GEAR

SET - pinion & spiral bevel (Matched set), countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

RING - collar retaining, countershaft

1шт.

26

A63154

COLLAR

- pinion locating, countershaft

1шт.

27

A64423

GEAR

ASSY. - driven (4th), countershaft, Includes Ref: 28

1шт.

28

A63153

BUSHING

- 4th gear, countershaft

1шт.

33

A64422

SHAFT

HUB - shaft, splined pinion (3rd & 4th), countershaft

1шт.

34

A64420

GEAR

ASSY. - driven (3rd), countershaft, Includes Ref: 35

1шт.

35

A64055

BUSHING

- gear (3rd), countershaft

1шт.

36

A64418

GEAR

ASSY. - driven (2nd), countershaft, Includes Ref: 37

1шт.

37

A64055

BUSHING

- 2nd gear, countershaft

1шт.

38

A64416

HUB

- shaft, splined pinion 1st & 2nd, countershaft

1шт.

39

A64414

GEAR

ASSY. - 1st, countershaft, Includes Ref: 40

1шт.

40

A64043

BUSHING

- 1st gear, countershaft

1шт.

41

A63125

WASHER

- pinion thrust, countershaft

1шт.

42

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - countershaft rear bearing

1шт.

43

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP - countershaft rear bearing

1шт.

44

A65305

COLLAR

- sliding (Replaces A64417), countershaft

2шт.

45

A43109

SOCKET/RECEPTACLE

SOCKET - countershaft nut (Service tool)

1шт.
