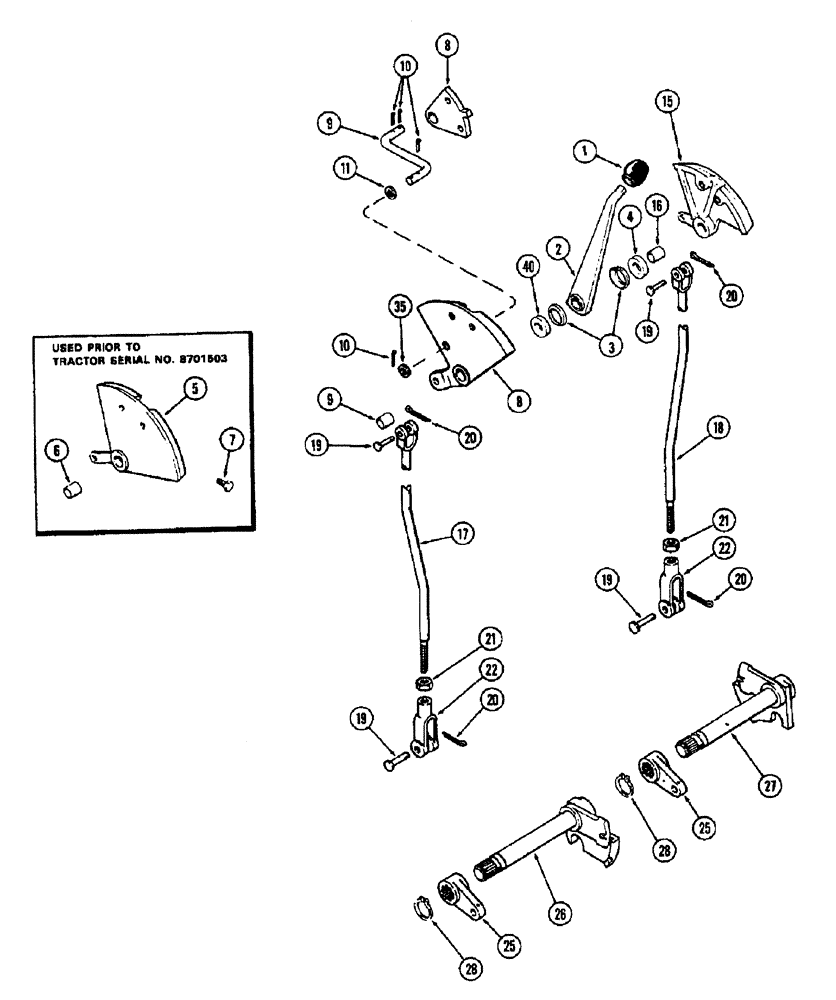

Запчасти Case IH 1370 (102) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- range shift hand lever (Replaces A62078)

1шт.

2

A60360

LEVER

- hand, range shift

1шт.

3

A59662

WASHER

- range shift hand lever

2шт.

4

A60367

SPACER

- range shift quadrant

2шт.

5

A61867

QUADRANT

ASSY. - range lever (3rd and 4th) (Used prior to trac. ser. no. 8701503), Includes Ref: 6

1шт.

6

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- range shift quadrant

1шт.

7

A59463

BOLT

- stop (1/4 x 5/8" w/nylon insert) (Used prior to trac. ser. no. 8701503)

1шт.

8

A64811

QUADRANT

ASSY. - range lever (3rd and 4th) (1st used trac. ser. no. 8701503), Includes Ref: 9

1шт.

9

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- range shift quadrant

1шт.

15

A61872

QUADRANT

ASSY. - range lever (1st & 2nd), Includes Ref: 16

1шт.

16

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- range shift quadrant

1шт.

17

A63019

ROD

- range shift (3rd & 4th)

1шт.

18

A63018

ROD

- range shift (1st & 2nd)

1шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" N.F.)

2шт.

22

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod

2шт.

25

A64936

LEVER

- lower, range shift (Replaces A60369)

2шт.

26

A64064

LEVER

- range (3rd & 4th)

1шт.

27

A64062

LEVER

- range (1st & 2nd)

1шт.

28

B18208

SNAP RING,#100, Ext

range shift lever #100, Ext

2шт.
