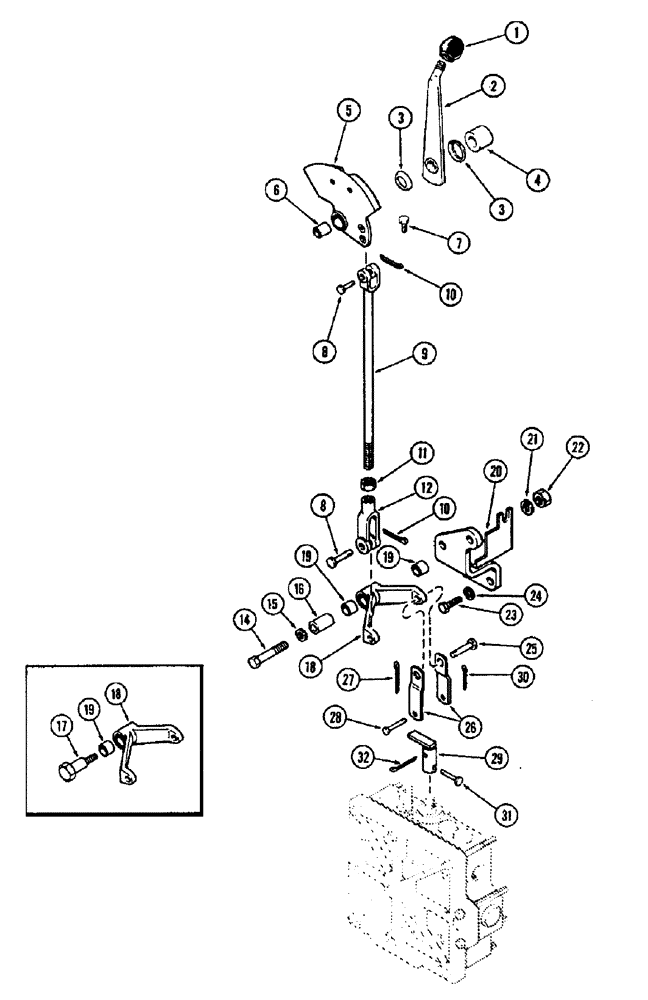

Запчасти Case IH 1370 (100) - POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- power shift lever (Replaces A62078)

1шт.

2

A59661

LEVER

- hand, power shift

1шт.

3

A59662

WASHER

- power shift lever

2шт.

4

A59664

SPACER

- power shift quadrant

1шт.

5

A61862

QUADRANT

ASSY. - power shift, Includes Ref: 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- power shift quadrant

1шт.

7

A59463

BOLT

- stop (1/4 x 5/8" w/nylon insert)

1шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (Rod & yoke) 3/8" x 1.060"

2шт.

9

A63020

ROD

- power shift

1шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" N.F.)

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod

1шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

1шт.

16

A65345

SHAFT

SLEEVE - bellcrank bolt (1st used trac. ser. no. 8716071)

1шт.

17

A63026

BOLT

- bellcrank (Order 13-640 bolt, A65345 sleeve & 95-5 washer)

1шт.

18

A63024

DIPPER

BELLCRANK ASSY. - power shift, Includes Ref: 19

1шт.

19

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- power shift bellcrank

2шт.

20

A63021

PLATE

- bellcrank mounting

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Mounting plate to torque tube Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (Link to bellcrank) 3/8" x 1.060"

1шт.

26

A63027

LINK

- power shift, Serial Range: spool-bellcrank

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

A8824

PIN

- clevis (Link to return lever)

1шт.

29

A63028

LEVER

- power shift spool return

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

31

A8823

PIN,6.29mm OD x 26.99mm L

- clevis (Return, Serial Range: lever-spool)

1шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
