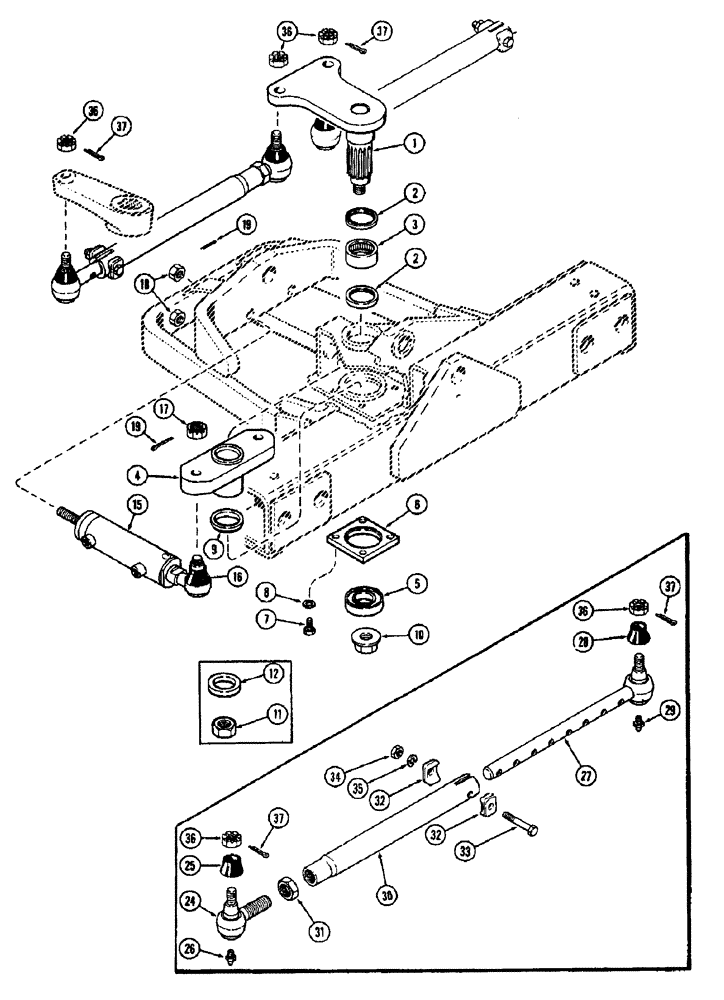

Запчасти Case IH 1370 (092) - CENTER STEERING ARMS AND CYLINDERS (05) - STEERING

1

A65613

ARM

- center steering, upper (Replaces A63985)

1шт.

2

A61414

OIL SEAL

- oil (2-1/8 x 2-1/2 x 3/16")

2шт.

3

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

1шт.

4

A62231

ARM

- center steering, lower

1шт.

5

A61888

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball

1шт.

6

A62212

PLATE

- bearing end cap

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A65539

WASHER

- lower, center steering shaft (Replaces A62233)

1шт.

10

A65435

LOCK NUT

- flanged (7/8" N.C. lock) (Replaces A59649 & 195.2098)

1шт.

11

A59649

FASTENER

NUT - (7/8" N.C. hex. two-way lock) (Order A65435)

1шт.

12

195-2098

WASHER,15/16" x 2" x .238"

- (15/16 x 2 x 3/16") (Use only w/A59649)

1шт.

15

A62067

CYLINDER

ASSY. - steering (For repairs see page 88)

2шт.

16

A31186

BOOT

SEAL - weather

2шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted)

2шт.

18

25-1112

NUT,3/4"-16, G5

- hex. (3/4" N.F.)

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

24

A43376

JOINT

END ASSY. - inner (R.H. thread), tie rods, Includes Ref: 25 and 26

2шт.

25

A31186

BOOT

- dust (Rubber), tie rods

1шт.

26

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - lube (1/8" P.T., straight), tie rods

1шт.

27

A43374

BALL JOINT

END ASSY. - outer (L.H. thread), tie rods, Includes Ref: 28 and 29

2шт.

28

A31186

BOOT

- dust (Rubber), tie rods

1шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - lube (1/8" P.T., straight), tie rods

1шт.

30

A137101

TUBE

- intermediate, tie rods

2шт.

31

A43379

JAM NUT

- lock, tie rods

2шт.

32

A43369

CLAMP

- tie rod tube

4шт.

33

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Tie rods Hex, 3/8"-16 x 2 1/2", G5

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Tie rods 3/8"-16, G5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Tie rods 3/8"

2шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted), tie rods

4шт.

37

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , Tie rods 1/8" x 1 1/8"

4шт.
