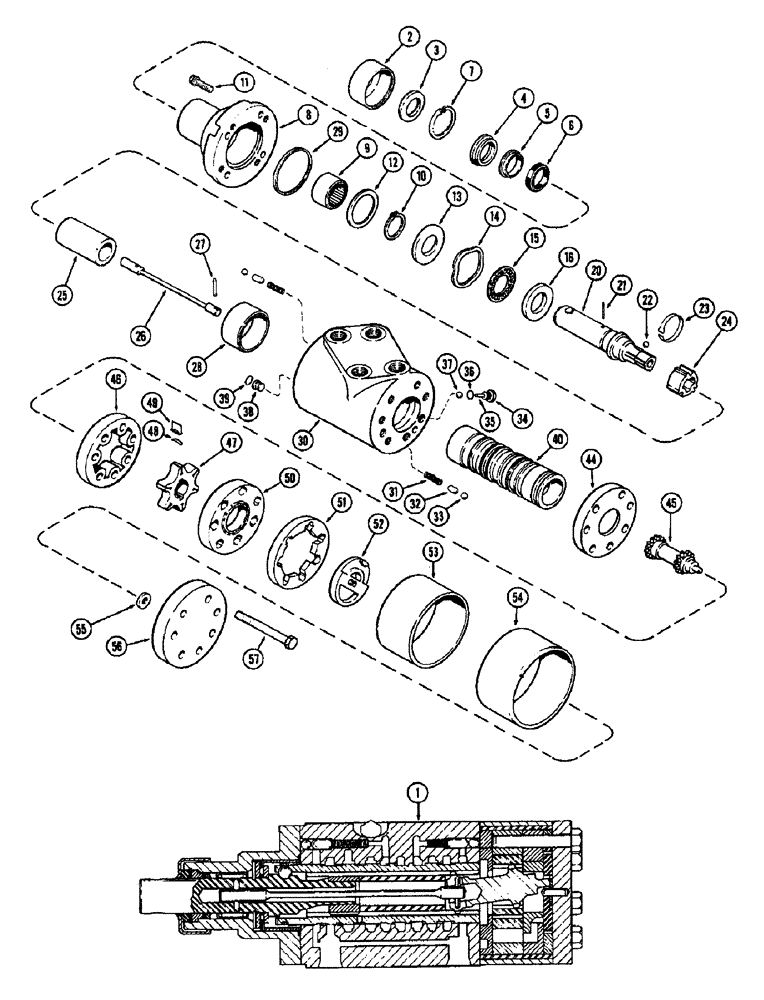

Запчасти Case IH 1370 (086) - HYDROSTATIC STEERING, HAND PUMP AND CONTROL VALVE (05) - STEERING

1

A63549

PUMP, HYDRAULIC

PUMP ASSY. - hydrostatic steering control, Includes Ref: 1 - 57

1шт.

2

A42057

SEAL

SHIELD - upper end cover

1шт.

A44582

REPAIR KIT

KIT - seal, drive shaft (Replaces A43747), Includes Ref: 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - pump shaft

1шт.

6

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

7

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

8

A43562

ASSY. - upper, Includes Ref: 9

1шт.

9

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle (w/plastic cage)

1шт.

10

A43720

RING

- end cover needle brg. retainer

1шт.

11

A43567

BOLT

- end top cover

4шт.

12

A44435

SHIM

KIT - needle brg. cover (Includes assorted shims)

1шт.

13

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

14

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave spring

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

16

F19634

BEARING WASHER

WASHER - thrust, bearing

1шт.

20

A43551

SHAFT

- input

1шт.

21

D53297

PIN

- retaining, torsion, Serial Range: bar-shaft

1шт.

22

211-9

BALL,5/16" Dia

- (.) 5/16" Dia

1шт.

23

A43560

SPRING

RETAINER - ball pre-load spring

1шт.

24

A43554

RING

- drive

1шт.

25

A43555

SPACER

- drive link (2-3/32" long)

1шт.

26

A43552

ROD

T-BAR ASSY. - torsion (Coded orange), Includes Ref: 27

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

28

A43728

SPACER

- shaft pre-load spring

1шт.

29

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

33

NSS

NOT SOLD SEPARAT

BALL - (9/32" dia.)

3шт.

F82943

VALVE

KIT - relief plug, Includes Ref: 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG ASSY. - relief valve

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

36

F19630

O-RING

"O" RING - sealing

1шт.

37

211-7

BALL,1/4" Dia

1шт.

38

A43565

PLUG

- porting, body

1шт.

39

A43729

O-RING

"O" RING - plug

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - spool

1шт.

44

A43569

BUSHING

PLATE - spacer

1шт.

45

A43568

LINK

- drive

1шт.

A43570

ROTOR

SET - pump (Not illustrated)

1шт.

46

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

47

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

48

A43412

SPRING

- vane

6шт.

49

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

50

A43573

MANIFOLD

- pump, Includes Ref: 51 and 52

1шт.

A43574

COMMUTATOR

ASSY. - pump (Not illustrated)

1шт.

51

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

52

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

53

A43577

SEAL

- rotor

1шт.

54

A43578

RETAINER

- rotor seal

1шт.

55

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

56

A43580

COVER

END COVER - rotor (Includes pin)

1шт.

57

A43581

BOLT

- sealing, end cover

7шт.
