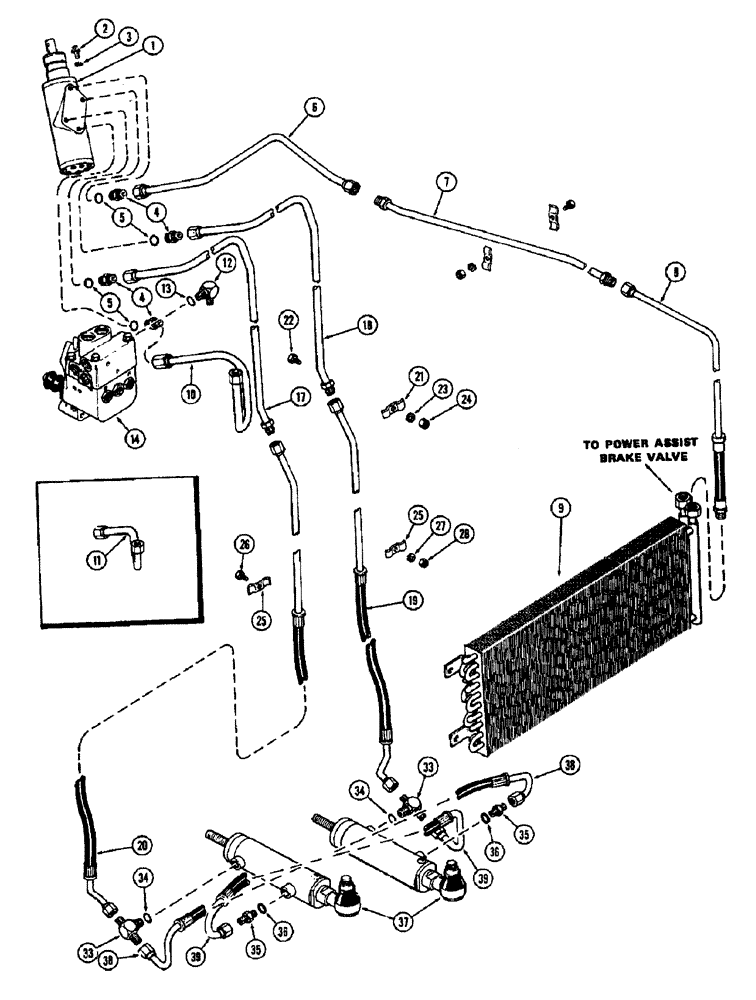

Запчасти Case IH 1370 (084) - HYDROSTATIC STEERING, STEERING MECHANISM (05) - STEERING

1

A63549

PUMP, HYDRAULIC

ASSY. - hydrostatic steering control (See Figure 086 for repairs)

1шт.

2

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

(Ferry cap), Control pump to steering column

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - male, straight thread, Includes Ref: 5

4шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

A63654

TUBE

Steering return (Steering pump to center oil cooler inlet tube)

1шт.

7

A63655

TUBE

Oil cooler inlet (Center)

1шт.

8

A64919

TUBE

Trans. oil cooler inlet (Front)

1шт.

9

A64918

COOLER

Oil, transmission (See page 11A)

1шт.

10

A66431

TUBE

Steering pump to valve (Replaces A63321)

1шт.

11

A63321

SPARE PART Steering pump to valve (Order A66431)

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY (In brake valve outlet port), Includes Ref 13

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

REF

INSTRUCTION

VALVE ASSY. - power brake (Used w/differential lock) (Order from Figure 148)

1шт.

14

REF

INSTRUCTION

VALVE ASSY. - power brake (Used w/o differential lock) (Order from Figure 152)

1шт.

17

A63550

TUBE

Steering valve (Right turn)

1шт.

18

A63551

TUBE

Steering valve (Left turn)

1шт.

19

A63552

HOSE ASSY.

LH steering cylinder

1шт.

20

A63553

HOSE

RH steering cylinder

1шт.

21

A63323

CLAMP

Tube (Steering, Serial Range: tube-firewall)

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Clamp to firewall

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

A63323

CLAMP

Hose (RH to LH steering hose)

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamps

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

1шт.

33

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

Branch, Includes Ref: 34

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(15/32 x 25/32 x 5/32")

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(15/32 x 25/32 x 5/32")

1шт.

37

A62067

CYLINDER

ASSY. - steering (See Figure 088)

2шт.

38

A63644

HOSE

Cylinder crossover, lower

1шт.

39

A63645

HOSE

Cylinder crossover, upper

1шт.
