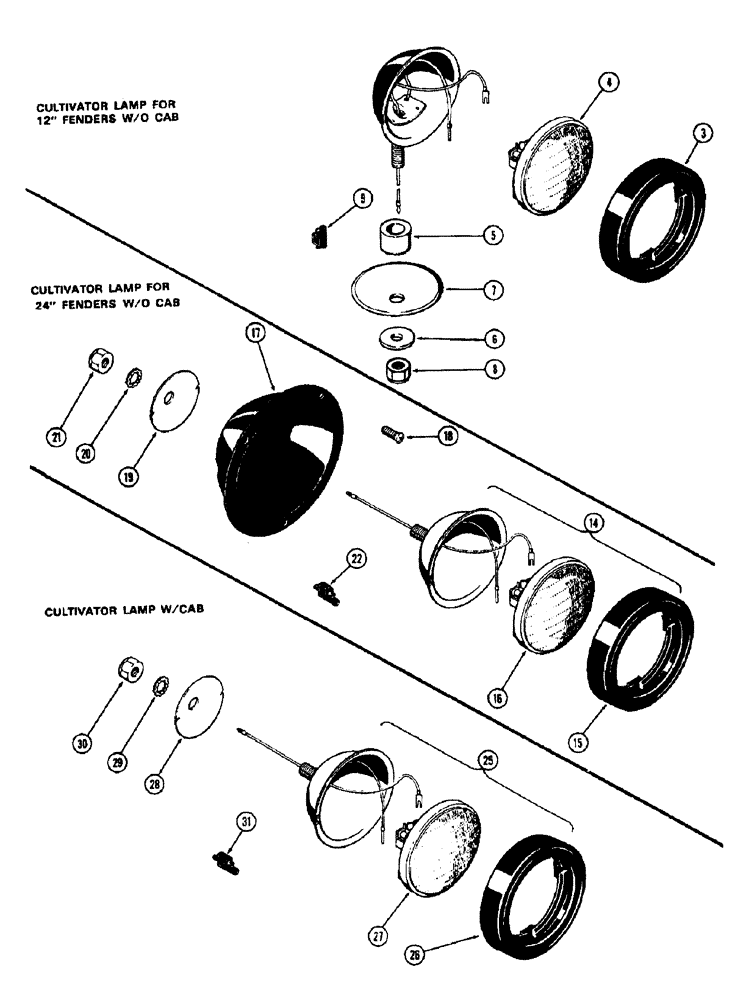

Запчасти Case IH 1370 (078) - CULTIVATOR LAMPS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A60510
LAMP
ATTACHMENT - lamp, for 12" fenders, W/O Cab, Includes Ref: 3 - 9
1шт.
A59724
HEADLAMP
LAMP - cultivator, for 12" fenders, W/O Cab, Includes Ref: 3 - 5
2шт.
3
A25213
RETAINER
- sealed beam, for 12" fenders, W/O Cab
1шт.
4
A42294
SEALED BEAM UNIT
BULB - sealed beam, for 12" fenders, W/O Cab
1шт.
5
D37048
BUSHING
- lamp pivot, for 12" fenders, W/O Cab
1шт.
6
D37049
WASHER
- lamp mounting, for 12" fenders, W/O Cab
2шт.
7
A59725
SPACER
BRACE - lamp, for 12" fenders, W/O Cab
2шт.
8
129-125
NUT,1/2"-20, G5
for 12" fenders, w/o Cab 1/2"-20, G5
2шт.
9
A62556
CONNECTOR, ELEC
CONNECTOR - splice, for 12" fenders, W/O Cab
2шт.
A60511
LAMP
ATTACHMENT - lamp, for 24" fenders, W/O Cab, Includes Ref: 14 - 22
1шт.
14
A59723
LAMP
- front cultivator, for 24" fenders, W/O Cab, Includes Ref: 15
2шт.
15
A25213
RETAINER
- sealed beam, for 24" fenders, W/O Cab
1шт.
16
A42294
SEALED BEAM UNIT
BULB - sealed beam, for 24" fenders, W/O Cab
1шт.
17
A59698
BEZEL
- lamp mounting, R.H., for 24" fenders, W/O Cab
1шт.
17
A59699
BEZEL
- lamp mounting, L.H., for 24" fenders, W/O Cab
1шт.
18
187-1062
SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"
SCREW - #10 x 1/2" N.C. self-tapping, Phillips oval hd., for 24" fenders, W/O Cab
6шт.
19
A59702
RETAINER
- cultivator lamp, for 24" fenders, W/O Cab
2шт.
20
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , for 24" fenders, w/o Cab Ext-Int Tooth, 1/2"
2шт.
21
129-105
NUT,Hex, 1/2" - 13, Gr 5
For 24" fenders, w/o Cab 1/2"-13, G5
2шт.
22
A62556
CONNECTOR, ELEC
CONNECTOR - splice, for 24" fenders, W/O Cab
2шт.
A61753
ATTACHMENT
- lamp, W/ Cab, Includes Ref: 25 - 31
1шт.
25
A59723
LAMP
- front cultivator, W/ Cab, Includes Ref: 26 and 27
2шт.
26
A25213
RETAINER
- sealed beam, W/ Cab
1шт.
27
A42294
SEALED BEAM UNIT
BULB - sealed beam, W/ Cab
1шт.
28
A59702
RETAINER
- front cultivator lamp, W/ Cab
2шт.
29
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"
2шт.
30
129-105
NUT,Hex, 1/2" - 13, Gr 5
w/Cab 1/2"-13, G5
2шт.
31
A62556
CONNECTOR, ELEC
CONNECTOR - splice, W/ Cab
2шт.
Выбрано товаров: 28
