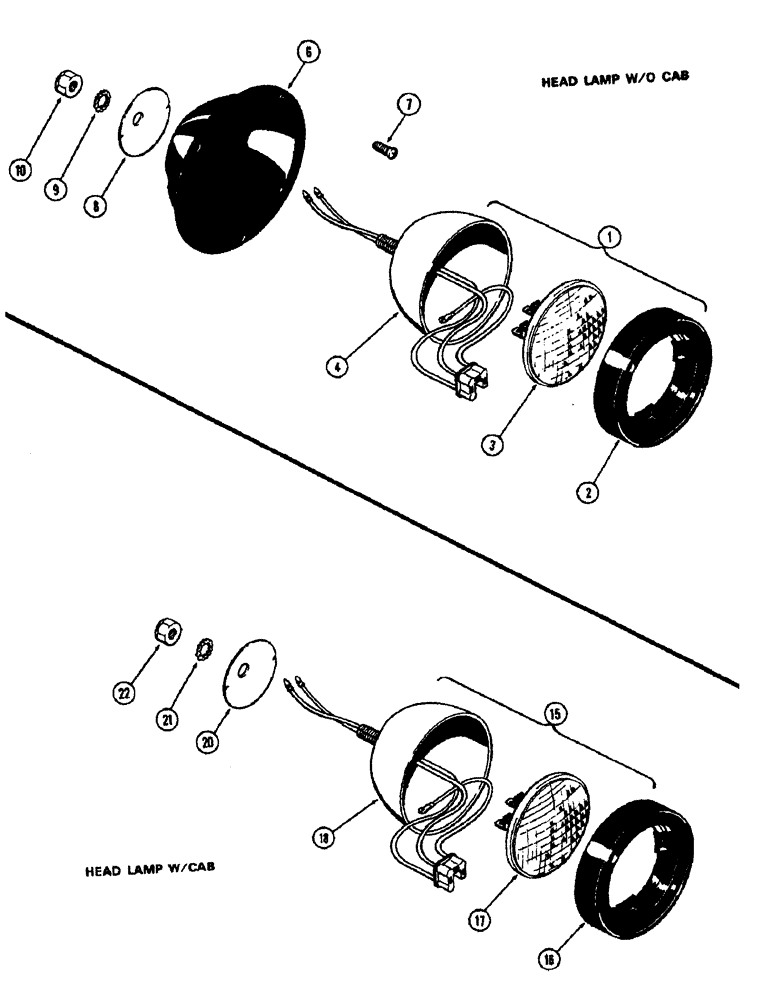

Запчасти Case IH 1370 (076) - HEAD LAMPS (04) - ELECTRICAL SYSTEMS

1

A64498

LAMP

- front head driving, W/O Cab, Includes Ref: 2 - 4

2шт.

2

A25213

RETAINER

- sealed beam, W/O Cab

1шт.

3

A43712

LAMP

HEAD LAMP - sealed beam (#4457), W/O Cab

1шт.

4

NSS

NOT SOLD SEPARAT

BODY & WIRE ASSY. - (Order A64998), W/O Cab

1шт.

6

A59698

BEZEL

- head lamp mounting, R.H., W/O Cab

1шт.

6

A59699

BEZEL

- head lamp mounting, L.H., W/O Cab

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10 x 1/2" N.C. self-tapping, Phillips oval hd., W/O Cab

6шт.

8

A59702

RETAINER

- front head lamp, W/O Cab

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/o Cab Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/o Cab 1/2"-13, G5

2шт.

15

A64498

LAMP

- front head driving, W/ Cab, Includes Ref: 16 -18

2шт.

16

A25213

RETAINER

- sealed beam, W/ Cab

1шт.

17

A43712

LAMP

HEAD LAMP - sealed beam (#4457), W/ Cab

1шт.

18

NSS

NOT SOLD SEPARAT

BODY & WIRE ASSY. - (Order A64998), W/ Cab

1шт.

20

A59702

RETAINER

- head lamp, W/ Cab

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
