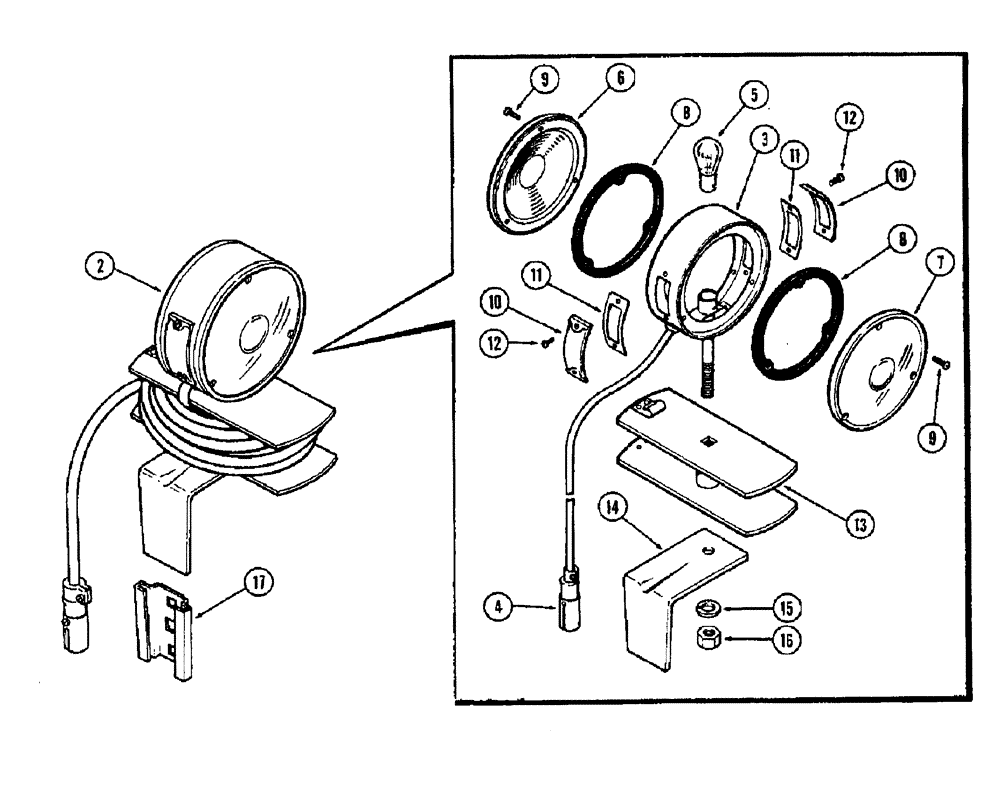

Запчасти Case IH 1370 (074) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

A11066M

LAMP ATTACHMENT - warning, Includes Ref: 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066M), Includes Ref: 3 - 16

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M)

1шт.

4

B50259

PLUG

- (To auxiliary socket)

1шт.

5

33686

BULB

- lamp (21 C.P.)

1шт.

6

B50337

LENS

- lamp (Amber)

1шт.

7

B53962

LENS

- lamp (Red)

1шт.

8

B50317

GASKET - lens

2шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6 x 1/2" N.C. rd. hd.

6шт.

10

B50328

LENS - lamp, side (Clear)

2шт.

11

B50329

GASKET - side lens

2шт.

12

182-43

SCREW - #6 x 5/16" N.C. rd. hd.

4шт.

13

B50330

SPOOL - lamp cord reel

1шт.

14

B60331

BRACKET - lamp mounting

1шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

17

A8179

SOCKET

- lamp positioning

1шт.
