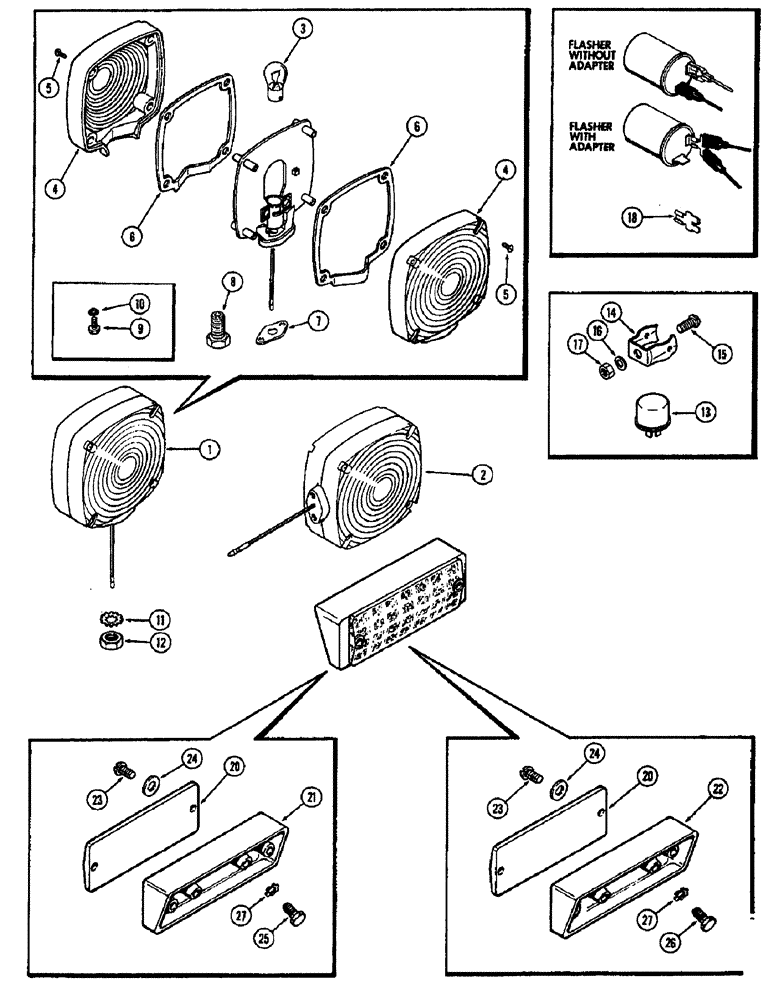

Запчасти Case IH 1370 (072) - FLASHER LAMP (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A64587
LAMP
ASSY. - flasher (w/o cab) (Order A44201)
2шт.
2
F89713
INDICATOR LIGHT
LAMP ASSY. - flasher (w/cab) (Order A44201)
2шт.
A44201
LIGHT ASSY.
KIT - replacement, flasher lamp, Includes Ref: 3 - 10
2шт.
3
A41264
BULB,#1156, 12V
Lamp #1156, 12V
1шт.
A44202
KIT
- lens replacement, Includes Ref: 4 and 5
1шт.
4
NSS
NOT SOLD SEPARAT
LENS - lamp amber
2шт.
5
187-1083
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - #8-32 x 3/4" rd. hd.
8шт.
6
A43731
GASKET
- lens
2шт.
7
F63435
GASKET
- lamp base
1шт.
8
NSS
NOT SOLD SEPARAT
STUD - mounting (w/o cab)
1шт.
9
113-39
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
- 1/4 x 1/2" N.C. hex., mounting (w/cab)
2шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, (w/Cab) 1/4"
2шт.
11
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , w/o Cab Ext-Int Tooth, 1/2"
1шт.
12
129-125
NUT,1/2"-20, G5
w/o Cab 1/2"-20, G5
1шт.
13
A65550
FLASHER UNIT
FLASHER - element (Replaces A34867)
1шт.
14
A34869
BRACKET
- flasher element mounting
1шт.
15
173-217
SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"
- 5/16 x 3/4" N.C. rd. hd. mach.
1шт.
16
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
17
9635082
NUT,5/16" - 18, Gr 5
1шт.
18
A34862
KIT
ADAPTER KIT - flasher by-pass (Required for steady light) (See inset)
1шт.
20
A62415
REFLECTOR
- red
2шт.
21
A62416
BRACKET
- reflector, w/o cab
2шт.
22
A64302
BRACKET
- reflector, w/cab
2шт.
23
187-1058
SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"
SCREW - #10 x 5/8" rd. hd., self tapping, reflector
4шт.
24
195-512
WASHER,#10
- 7/32 x 7/16 x 1/16", reflector
4шт.
25
187-1043
SCREW
- 1/4 x 1/2" hex. hd., self tapping (Used w/o cab), reflector
4шт.
26
187-1073
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"
SCREW - 1/4 x 5/8" hex. hd., self tapping (Used w/cab), reflector
4шт.
27
193-73
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER - Shakeproof, 1/4" int./ext., reflector
4шт.
Выбрано товаров: 28
