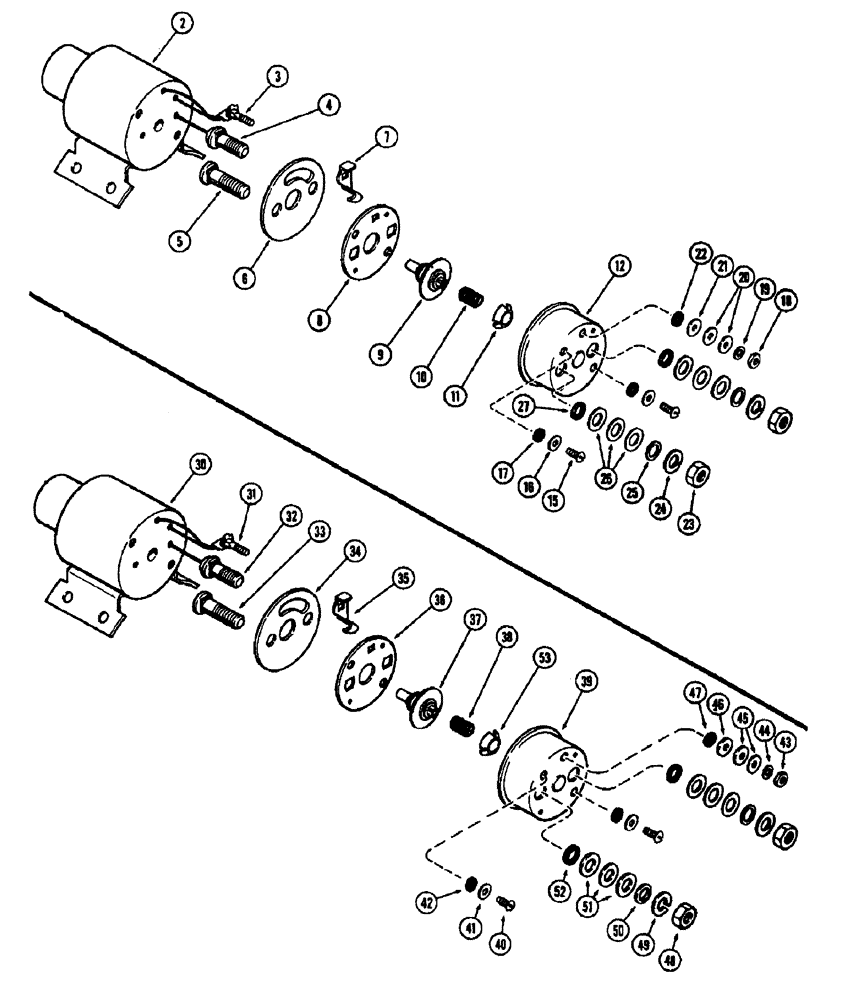

Запчасти Case IH 1370 (068) - A43846 SOLENOID, 504BDT, DIESEL ENGINE, FIRST USED TRACTOR S/N 8696753, USED WITH A64907 STARTER (04) - ELECTRICAL SYSTEMS

A43846

SOLENOID

ASSY. - (Delco #1115528), Includes Ref: 2 - 27

1шт.

2

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY.

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

6

A42377

GASKET

- solenoid cover

1шт.

7

A42384

CLIP

- solenoid terminal

1шт.

8

A42386

INSULATOR

- solenoid cover

1шт.

9

A42385

CONTACT

- solenoid

1шт.

10

A42059

SPRING

- contact return

1шт.

11

A42391

INSULATOR

- solenoid cover cup

1шт.

12

A42388

COVER

- solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

- #10 N.F. Nylock

2шт.

16

A42378

WASHER

- 3/16 x 1/2 x 1/32"

2шт.

17

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

2шт.

18

129-37

NUT,#10-32

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

- 3/16 x 1/2 x 3/64"

2шт.

21

A42390

WASHER

- 3/16 x 1/2 x 1/16"

1шт.

22

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

- 25/64 x 11/16 x 1/16"

2шт.

26

A42379

WASHER

- 25/64 x 3/4 x 1/16"

8шт.

27

A42389

WASHER

- 3/8 x 17/32 x 3/32" rubber

2шт.

A42326

SOLENOID

ASSY. - (Delco #1115518), A42326, used prior to Trac. SN 8696753, used with A59217 starter, Includes Ref: 30 - 53

1шт.

30

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY., A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

31

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

32

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

33

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

34

A42377

GASKET

- solenoid cover, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

35

A42384

CLIP

- solenoid terminal, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

36

A42386

INSULATOR

- solenoid cover, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

37

A42385

CONTACT

- solenoid, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

38

A42059

SPRING

- contact return, A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

39

A42388

COVER

- solenoid, A42326, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

40

A42380

SCREW,#10 - 32 x 9/16"

- cover (#10-32 x 1/2" rd. hd. spec.), A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

41

A42378

WASHER

- 3/16 x 1/2 x 1/32", A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

42

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber, A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

43

129-37

NUT,#10-32

A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter #10-32

1шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , A42326 solenoid, used prior to tractor S/N 8696753, used with A59217 starter #10

1шт.

45

R16177

WASHER

- 3/16 x 1/2 x 3/64", A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

46

A42390

WASHER

- 3/16 x 1/2 x 1/16", A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

47

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber, A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

1шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , A42326 solenoid, used prior to tractor S/N 8696753, used with A59217 starter 3/8"-16, G5

2шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , A42326 solenoid, used prior to tractor S/N 8696753, used with A59217 starter 3/8"

2шт.

50

R15013

WASHER

- 25/64 x 11/16 x 1/16", A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

51

A42379

WASHER

- 25/64 x 3/4 x 1/16", A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

8шт.

52

A42389

WASHER

- 3/8 x 7/8 x 3/32" rubber, A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

2шт.

53

A42391

INSULATOR

- cup, cover, A42326 solenoid, used prior to Trac. SN 8696753, used with A59217 starter

1шт.
