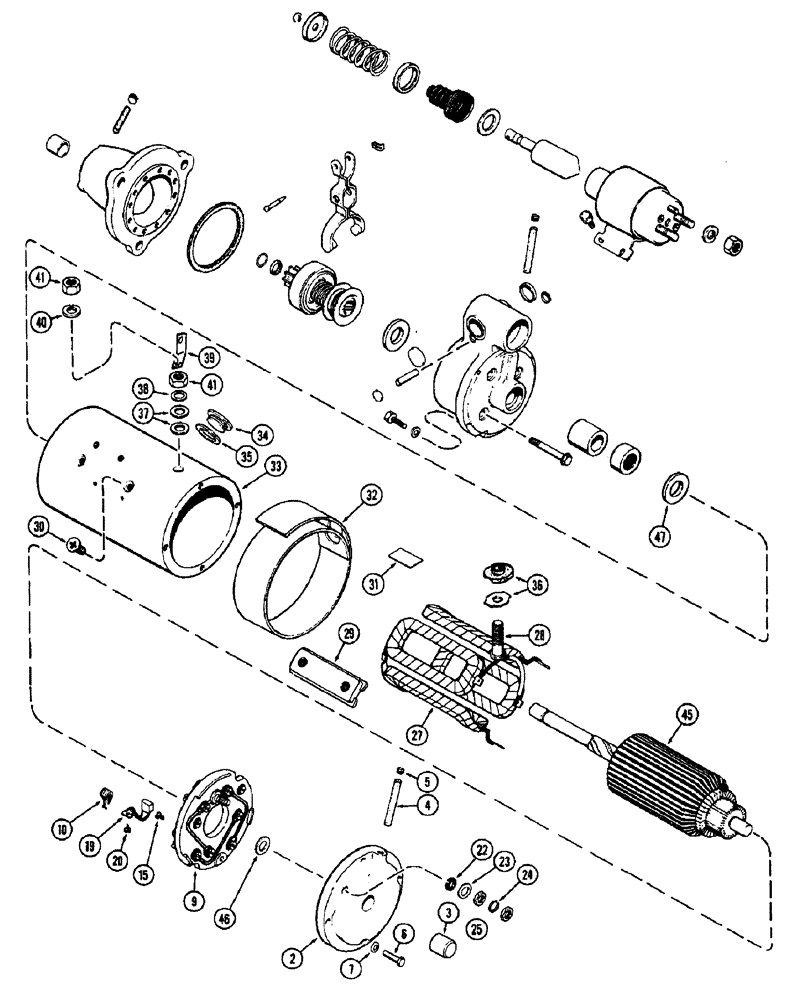

Запчасти Case IH 1370 (066) - A59217 STARTER, 504BDT, DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8696753 (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY. - (Delco #1113689) (Order A64907), Includes Ref: 2 - 83

1шт.

2

A42341

FRAME

ASSY. - commutator end, Includes Ref: 3 - 5

1шт.

3

A42323

BUSHING

- armature

1шт.

4

R15023

WICK

- oil

1шт.

5

221-1041

PLUG

- oil hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A42786

LARGE PLATE

PLATE ASSY. - brush, Includes Ref: 10 and 15

1шт.

10

A42333

SPRING

- brush

4шт.

15

187-1051

SCREW - plate mounting, #8-32 x 1/2" pan hd.

1шт.

19

A40891

BRUSH, COMMUTATOR

BRUSH ASSY.

4шт.

20

174-221

SCREW - brush, #8-24 x 5/16" rd. hd.

4шт.

22

A42085

BUSHING

WASHER - rubber, terminal

1шт.

23

R15013

WASHER

- terminal (25/64 x 11/16 x 1/16")

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

27

A42332

COIL

ASSY. - field, Includes Ref: 28

1шт.

28

A40896

STUD

- terminal

1шт.

29

R15115

SHOE

- pole

4шт.

30

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoe

8шт.

31

A42342

INSULATOR

INSULATION - field coil

1шт.

32

A42327

INSULATOR

INSULATION - field coil

2шт.

33

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

34

R21587

PLUG

- inspection

1шт.

35

A41924

GASKET

- inspection plug

2шт.

36

A41925

BUSHING

PACKAGE - terminal stud

1шт.

37

D30005

INSULATOR

WASHER - insulator, term. stud

2шт.

38

D30006

WASHER

- plain, term. stud

1шт.

39

NLS

NO LONGER SERVICED

CONNECTOR - term. stud to solenoid term.

1шт.

40

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

41

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

45

A40800

ARMATURE

1шт.

46

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature, commutator end

1шт.

47

A42202

WASHER

- armature spacer (49/64 x 1-3/4 x 19/64")

1шт.
