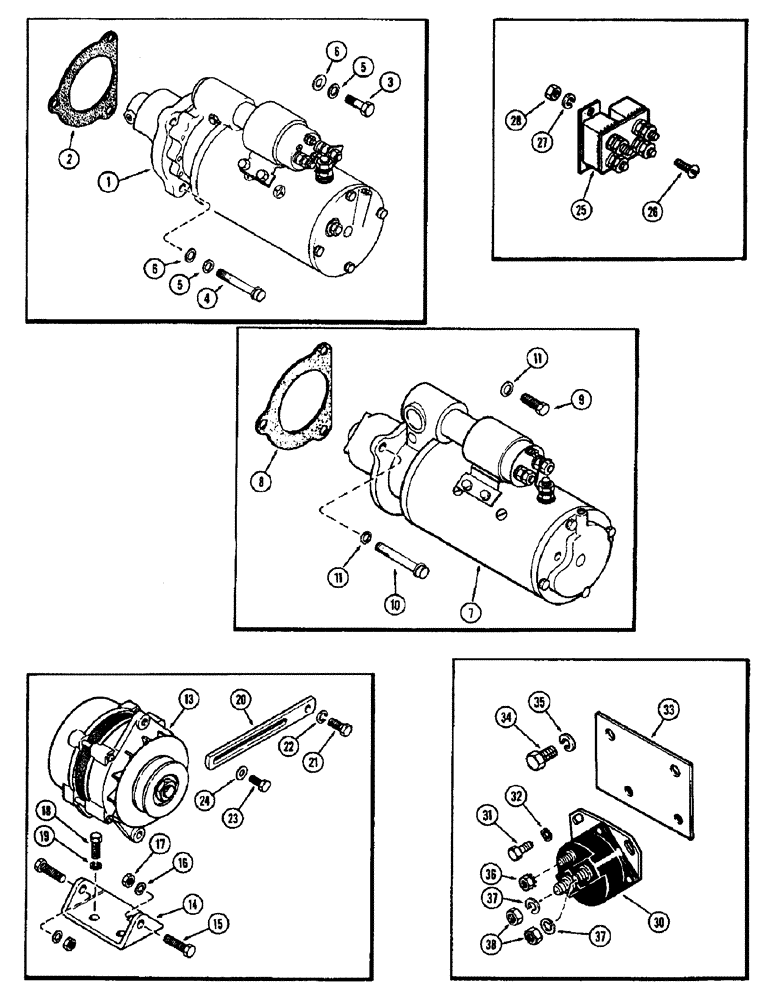

Запчасти Case IH 1370 (062) - ELECTRICAL EQUIPMENT MOUNTING, 504BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A64907

ELECTRIC MOTOR

STARTER - (1st used trac. SN8696753) (See Figure 064)

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

A27933

GASKET

GASKET - starting motor

1шт.

3

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - 1/2 x 1-3/4" N.C. hex., nylock

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

6

L30674

WASHER

WASHER - 17/32 x 1 x 1/8"

3шт.

7

A59217

STARTER MOTOR

STARTER - (Used prior to trac. SN8696753) (Order A64907) (See Figure 066)

1шт.

8

A27933

GASKET

GASKET - starter

1шт.

9

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

BOLT - 1/2 x 1-1/2" N.C. hex. (Nylok) (Replaces A10009)

2шт.

10

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. Ferry cap

1шт.

11

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

13

A61062

SPARE PART ALTERNATOR ASSY. - (See Figure 070)

1шт.

14

A61063

BRACKET

BRACKET - alternator mounting

1шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

20

A59167

STRAP

STRAP - alternator adjusting

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

195-521

WASHER,5/16", SAE

WASHER - 11/32 x 11/16 x 1/16"

1шт.

25

A59704

BREAKER

BREAKER - circuit

1шт.

26

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - #8 x 3/8" N.C. rd. hd.

2шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

28

129-16

NUT,#8-32

NUT, #8-32

2шт.

30

A39079

SOLENOID

SOLENOID - manifold heater

1шт.

31

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

A60880

SPARE PART PLATE - heater solenoid to engine block

1шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

36

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10 N.F. hex., Keps

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.
