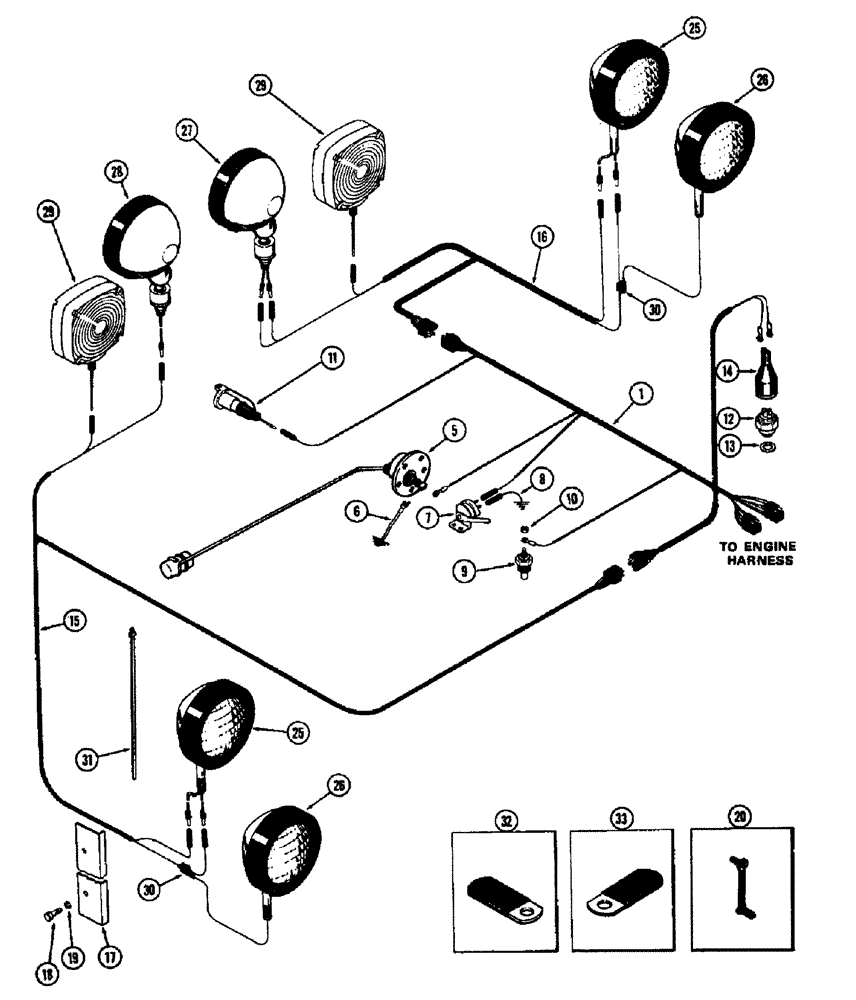

Запчасти Case IH 1370 (058) - ELECTRICAL EQUIPMENT AND WIRING, 504B, DIESEL ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A63738

WIRE HARNESS

Transmission wire (Order A65812 & A65813)

1шт.

2

A65813

HARNESS

Transmission wire (Less fuel sender wire)

1шт.

3

A65812

ELECTRICAL WIRE

WIRE Fuel gauge sender

1шт.

5

A63704

TRANSMITTER

UNIT - fuel gauge sender

1шт.

6

A63739

ELECTRICAL WIRE

WIRE Fuel gauge sender ground

1шт.

7

A33977

SWITCH

Hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE Hand brake switch ground

1шт.

9

A21462

SENDER UNIT

SENDER SENSOR - transmission temperature

1шт.

10

129-661

NUT

#10 N.F. hex., brass

1шт.

11

REF

INSTRUCTION

SOCKET - auxiliary outlet (Order from Figure 080)

1шт.

12

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

13

G49402

SHIM,.010" Thk

Neutral start switch

1шт.

14

A20991

BOOT

Neutral start switch

1шт.

15

A63740

HARNESS

Fender wire, RH

1шт.

16

A63741

HARNESS

Fender wire, LH

1шт.

17

A63744

GUARD

SHIELD - fender wire harness (w/12" fender)

2шт.

17

A60893

GUARD

SHIELD - fender wire harness (w/24" fender)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

20

A62547

CLAMP

Fender, Serial Range: wires-fender

1шт.

25

A64498

LAMP

Front head driving (See Figure 076)

2шт.

26

A59724

HEADLAMP

Front cultivator (See Figure 078) (w/12" fender)

2шт.

26

A59723

LAMP

Front cultivator (See Figure 078) (w/24" fender)

2шт.

27

A59703

LAMP

Rear flood & tail (See Figure 080)

1шт.

28

A63822

HEADLIGHT

Rear flood (See Figure 080)

1шт.

29

A64587

LAMP

Flasher (See Figure 072)

1шт.

30

A62556

CONNECTOR, ELEC

CONNECTOR Splice, cultivating lamp

2шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Harness

1шт.

32

A37179

CLIP

Trans. sending wire

1шт.

33

A22880

CLIP

Trans. wire harness & fuel sending wire

1шт.
