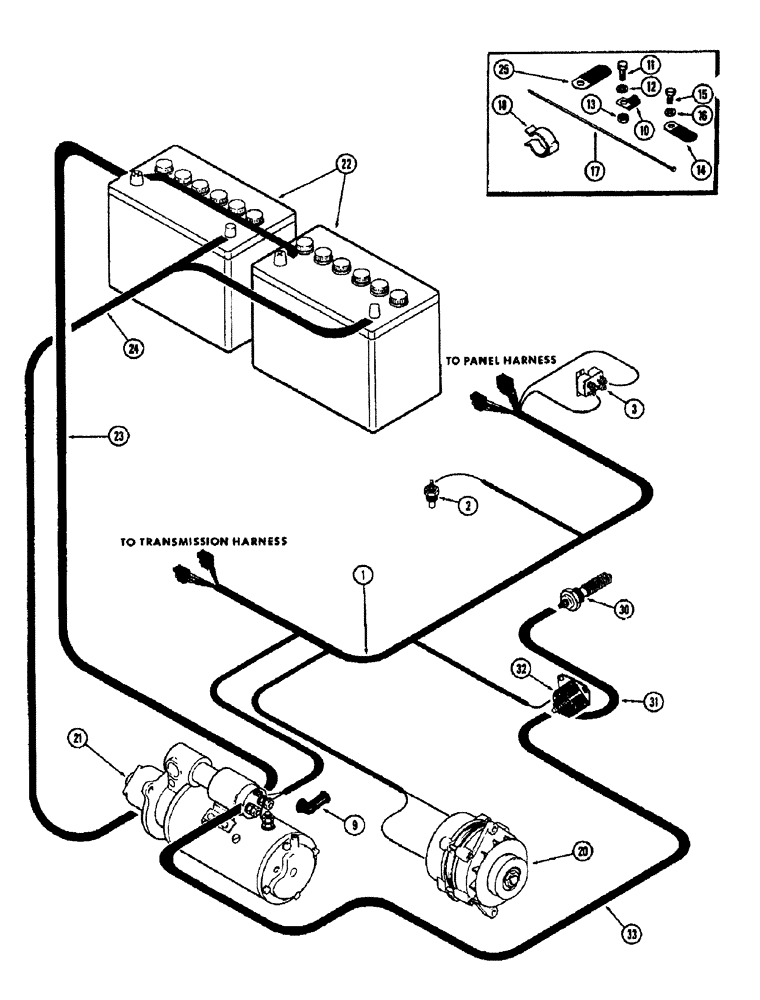

Запчасти Case IH 1370 (056[01]) - ELECTRICAL EQUIPMENT AND WIRING, 504BDT, DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A63737

HARNESS

Engine wire (Used prior to eng. S/N 2529467)

1шт.

1

A65986

HARNESS

Wire (1st used trac. S/N 2529467)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending

1шт.

3

A59704

BREAKER

Circuit (See Figure 062)

1шт.

9

A21753

CAP

BOOT - wire to starter solenoid

1шт.

10

A59718

CLAMP

SPARE PART Engine wire harness

1шт.

11

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

Mach.

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A37179

CLIP

Alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Engine wire harness

1шт.

18

A60894

CLIP

Alternator wire harness to breather tube

1шт.

20

A61062

SPARE PART ASSY (See Figure 070)

1шт.

21

REF

INSTRUCTION

STARTER ASSY. - (See Figure 062 & 064)

1шт.

22

A38411

DRY BATTERY

12 V., used w/o cab (See Figure 060)

2шт.

22

A60878

BATTERY

12 V., w/cab (w/non-spill caps) (See Figure 060)

2шт.

23

A62141

ELECTRIC CABLE

Battery, positive

1шт.

24

A59728

CABLE

Battery, negative (Ground)

1шт.

25

A22883

CLIP

Battery cable

1шт.

30

A37775

HEATER

Manifold (Order from Figure 020)

1шт.

31

A59712

SPARE PART Manifold, Serial Range: heater-solenoid

1шт.

32

A39079

SOLENOID

Manifold heater (See Figure 062)

1шт.

33

A59713

ELECTRICAL WIRE

WIRE Heater solenoid to starter, manifold

1шт.
