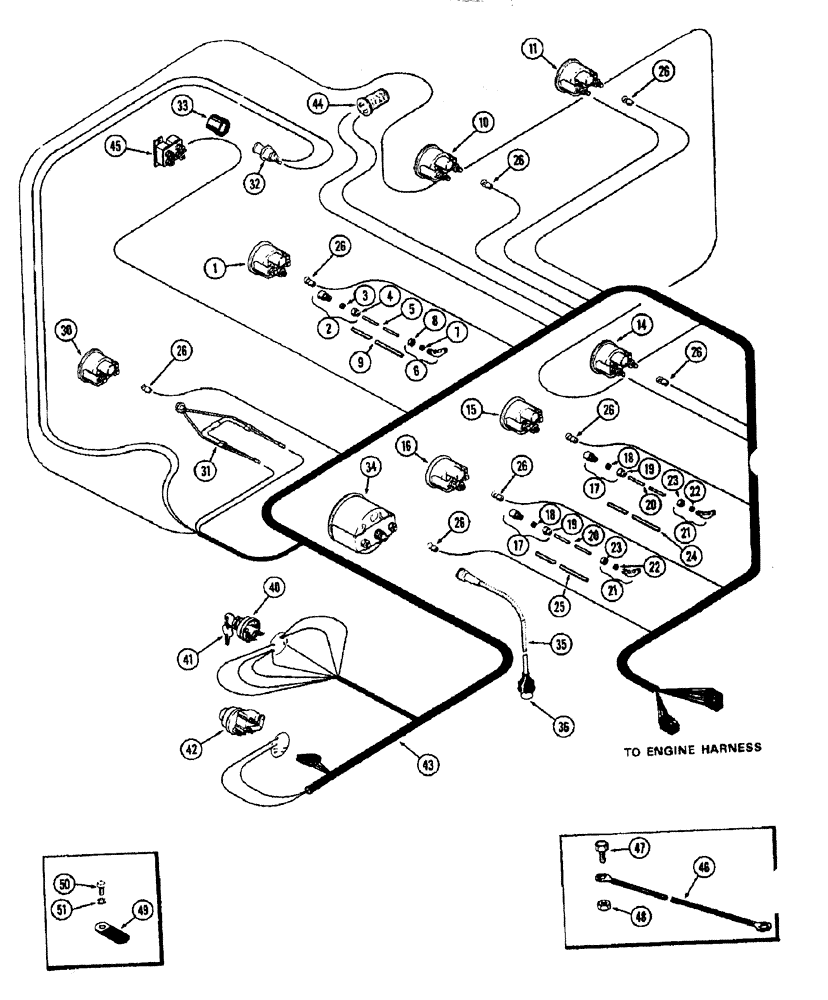

Запчасти Case IH 1370 (054) - INSTRUMENTS AND WIRING, 504BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes Ref: 3

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A59679

TUBE

- engine oil pressure

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 degrees, 1/8" tube, 1/8" P.T., Includes Ref: 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A61786

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

11

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

14

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature

1шт.

15

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure (P.T.O.)

1шт.

16

A65062

GAUGE

- trans. oil filter pressure (Replaces A63732)

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes Ref: 18 and 19

2шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- transmission pressure gauge

2шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 degrees, 1/8" tube, 1/8" P.T., Includes Ref: 22 and 23

2шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- transmission pressure gauge tube

1шт.

25

A63734

LOOM

- trans. filter pressure tube

1шт.

26

A14553

BULB

- gauges

8шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alternator warning lamp

1шт.

32

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12 V. flasher, red

1шт.

33

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

34

A63735

TACHOMETER

ASSY.

1шт.

35

A59691

CABLE

ASSY. - tachometer drive, Includes Ref: 46

1шт.

36

A24523

KIT

- tachometer cable repair

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (Set of 2)

1шт.

42

A59694

SWITCH

ASSY. - lights (See page 80)

1шт.

43

A63979

HARNESS - instrument panel (Used prior to eng. ser. 2529467)

1шт.

43

A65988

HARNESS

- instrument panel (1st used eng. ser. no. 2529467)

1шт.

44

A65550

FLASHER UNIT

- 12 V. (Replaces A34867)

1шт.

45

A59704

BREAKER

- circuit, 80 amp. (See page 62)

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.

47

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Strap to panel Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

49

A37179

CLIP

- instrument wire harness

1шт.

50

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

51

92-5

LOCK WASHER,5/16"

1шт.
