Запчасти Case IH 1370 (050) - FUEL INJECTION PUMP, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

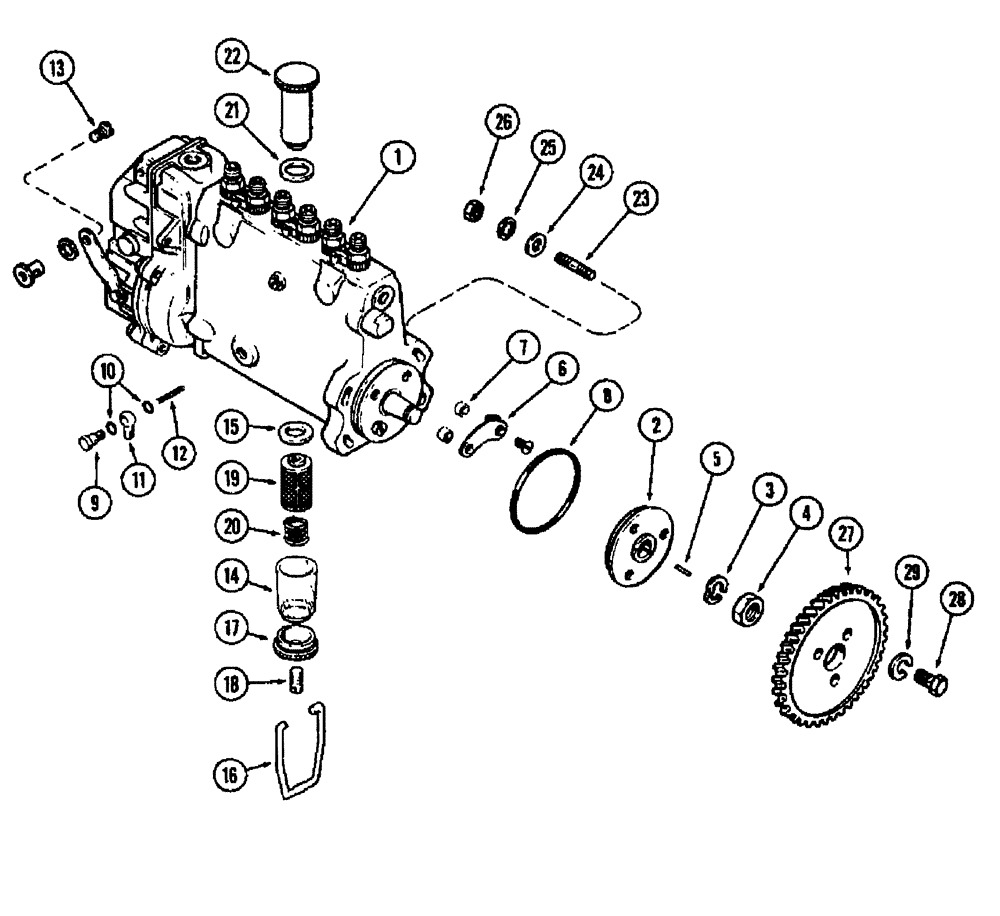

Схема запчастей Case IH 1370 - (050) - FUEL INJECTION PUMP, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM
22
10
7
20
15
9
23
25
6
5
28
17
11
12
3
18
8
2
27
26
13
19
24
1
4
21
14
29
16

Артикул

Название

Примечание

Количество

1

A63908

PUMP ASSY. - fuel injection (2100 R.P.M.) Bosch #PES6A9SC420LS3007 Governor #EP/RSV375-1050A2B, Includes Ref: 2 - 22

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- pump stop control cable lock (Replaces A42829)

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump (Copper)

1шт.

22

A43343

CARTRIDGE

PUMP - hand primer

1шт.

23

A58689

STUD

- 3/8" N.C. x 1-7/8"

4шт.

24

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

27

A58693

GEAR

- injection pump drive

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

Выбрано товаров: 29
