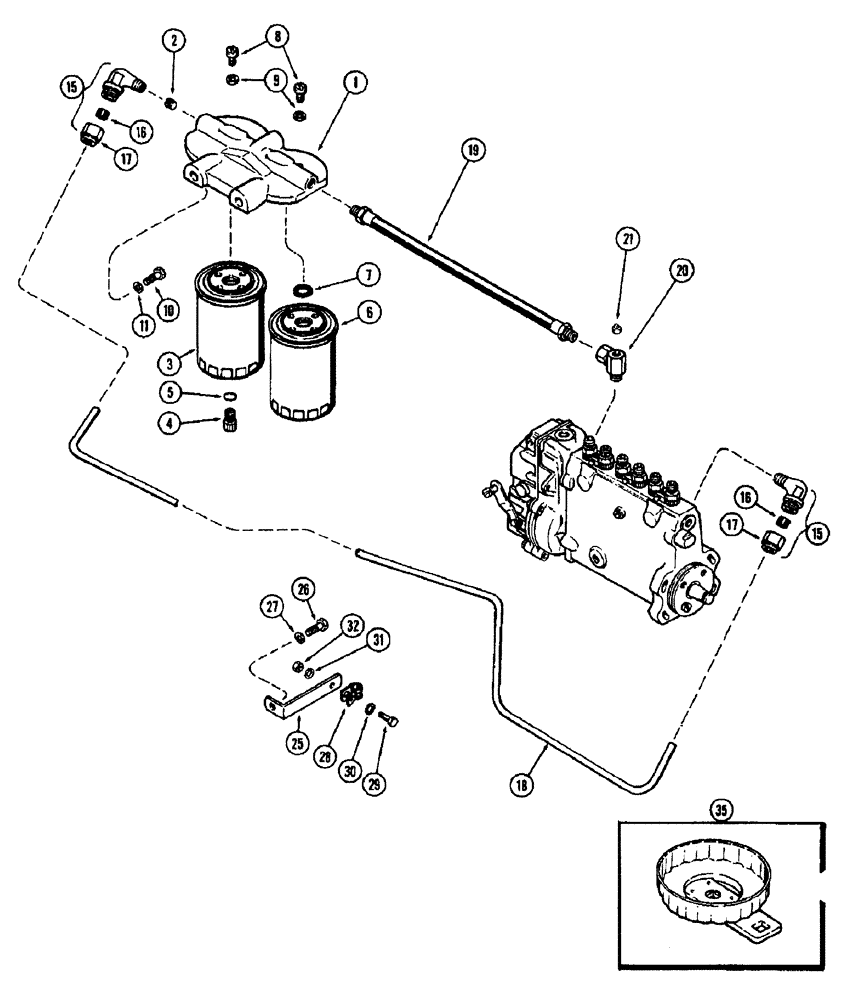

Запчасти Case IH 1370 (048) - FUEL INJECTION FILTER SYSTEM, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - 1st & 2nd stage filter, Includes Ref: 2

1шт.

2

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

PLUG - 1/8" P.T. (In head)

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin on filters, Includes Ref: 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes Ref: 4

1шт.

4

G49080

PLUG

- 3/8" N.C., 10 pt. hd. (Plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage

1шт.

7

A42315

GASKET

- 2nd stage filter

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

9

A66619

WASHER

- bleed screw (Replaces A20662)

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes Ref: 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

- for 3/8" tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 3/8" tube

1шт.

18

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump (15-3/8" lg.) (Replaces A58716)

1шт.

20

A20539

FITTING

UNION - switch (In. inj. pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, 1/8" P.T.

1шт.

25

A64856

BRACKET

- tube support (3-1/4" long) (Replaces A58718)

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube, for 3/8" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

35

A64761

TOOL

- filter removing

1шт.
