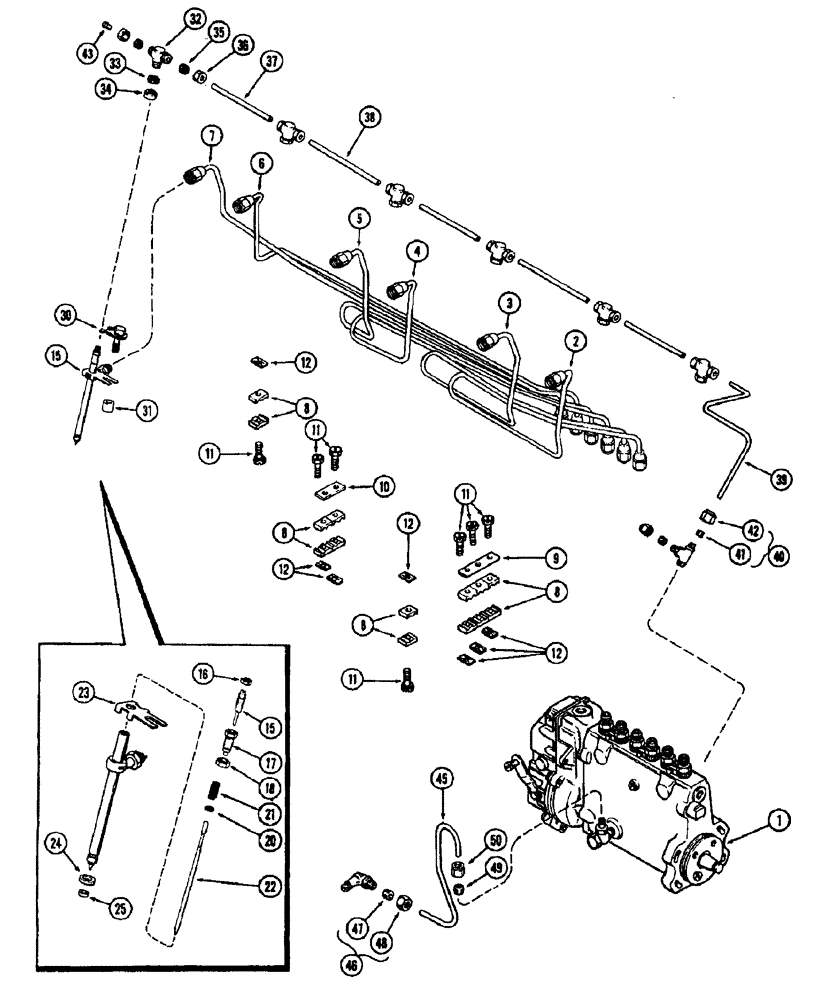

Запчасти Case IH 1370 (046) - FUEL INJECTION SYSTEM, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A63908

PUMP ASSY. - fuel injection (See Figure 050)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY. - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY. - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. slotted hex.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, Tinnerman

7шт.

14

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection (See note) (Supplier's no. 19745 stamped on body), Includes Ref: 15 - 25

6шт.

A138322R

REMAN-INJECT NOZZLE

1370 (PRIOR TO S/N 8727601) (1/71-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

15

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

16

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

17

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

18

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

20

A44369

SEAT

- spring

2шт.

21

A43601

SPRING

- pressure adjusting (1/2" free length w/brown stripe)

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

30

A58695

CLAMP

ASSY. - nozzle

6шт.

31

A58696

SPACER

- nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

34

A58961

NUT

- cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

- leak-off check (In injection pump), Includes Ref: 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.

45

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
