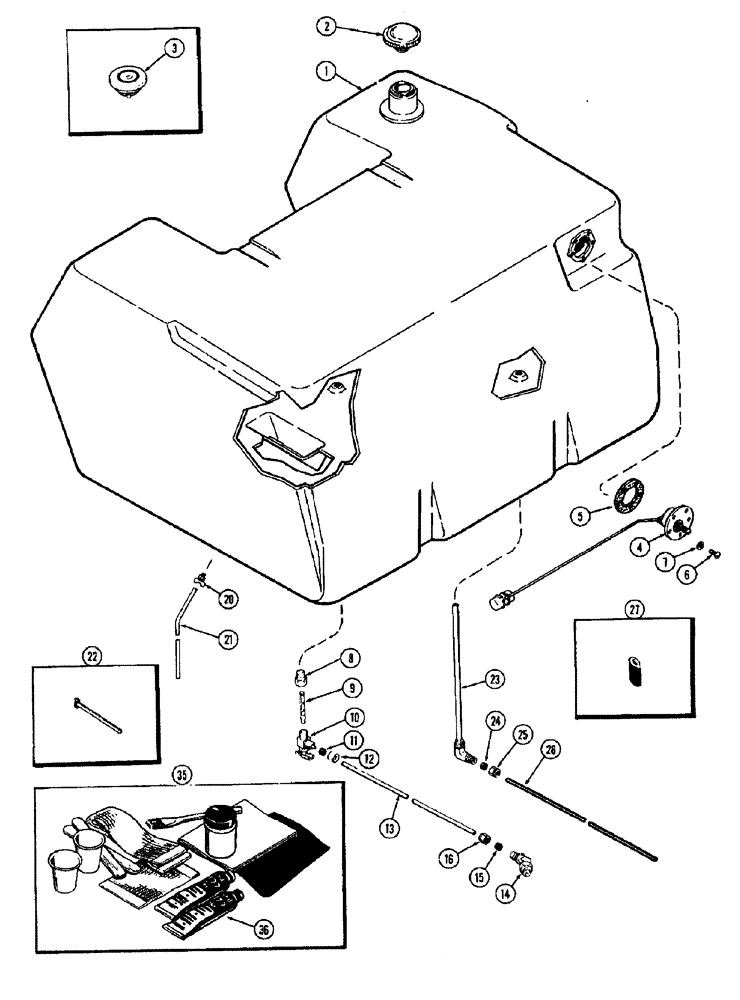

Запчасти Case IH 1370 (043A) - FUEL TANK AND LINES, 504BDT, DIESEL ENGINE, NYLON MATERIAL, USED PRIOR TO TRACTOR S/N 8715153 (03) - FUEL SYSTEM

1

A63703

TANK

- fuel (Order A65889 tank & A65893 pipe Figure 042)

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- extension, 1/4 x 1/4"

1шт.

9

FILTER

1шт.

10

217-278

FITTING

VALVE ASSY. - outlet, 1/4" P.T. x 3/8" tube (Replaces A62354), Includes Ref: 11 and 12

1шт.

11

222-5186

SLEEVE,3/8" Tube

- plastic, 3/8" Tube

1шт.

12

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

13

A62320

TUBE

- tank outlet (1/4" I.D. x 105" nylon)

1шт.

14

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - tube to primer pump, 1/4" P.T. x 3/8" tube 45 degrees, Includes Ref: 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- plastic, 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

20

A23656

COCK, DRAIN

VALVE - drain cock (1/4" P.T.)

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

1шт.

23

A62274

FITTING

PIPE ASSY. - fuel tank return port, Includes Ref: 24 and 25

1шт.

24

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

25

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

26

A60722

TUBE

- injector to return port (3/16" I.D. x 102" nylon)

1шт.

27

A22883

CLIP

-, Serial Range: tube-firewall

1шт.

35

A44265

KIT

- nylon fuel tank repair (Also order A44266)

1шт.

36

A44266

KIT

ADHESIVE - repair kit (Also order A44265), tank

1шт.
