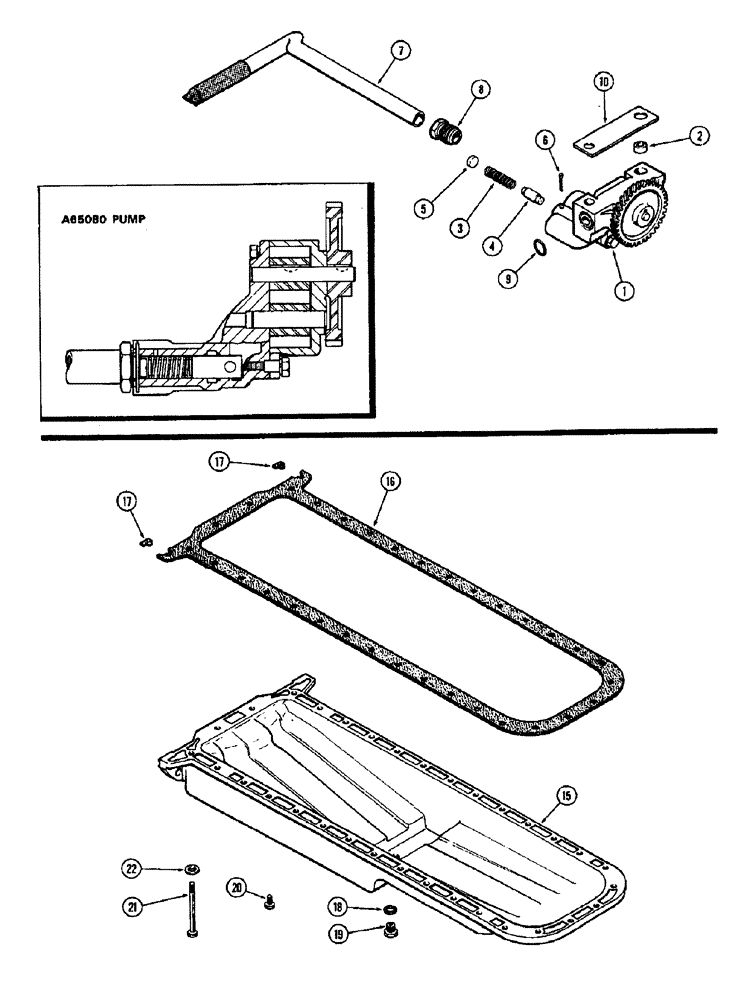

Запчасти Case IH 1370 (036) - OIL PUMP, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A65080

PUMP

ASSY. - oil, Includes Ref: 2 - 6

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 45/64" cup, relief valve

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A66174

TUBE

ASSY. - oil suction (Incl. screen)

1шт.

8

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare

1шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block

1шт.

10

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

15

A63907

PAN

- oil

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan

2шт.

17

A62402

GASKET

- oil pan corners

2шт.

18

A58608

GASKET

- oil pan drain plug

1шт.

19

A14280

PLUG

- oil pan drain

1шт.

20

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. Sems, oil pan

28шт.

21

A57436

BOLT

- 3/8 x 5-3/4" N.C. hex., spec., oil pan

2шт.

22

A22317

WASHER

- 25/64 x 11/16 x 18 ga., copper, oil pan

2шт.
