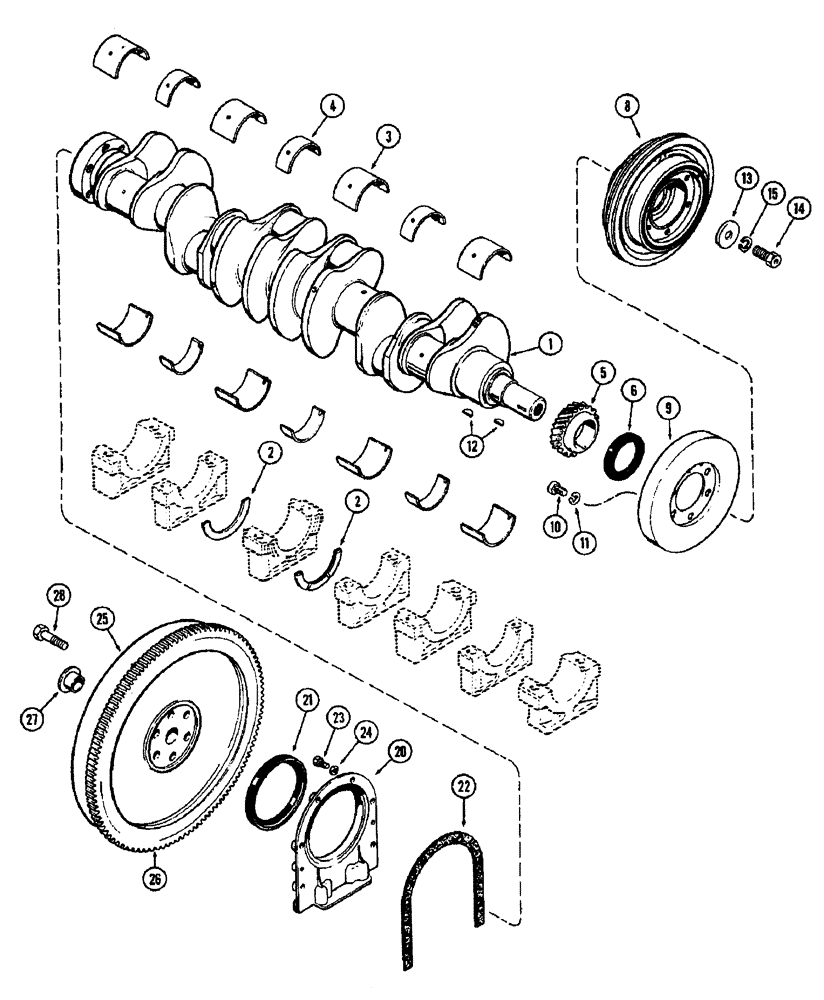

Запчасти Case IH 1370 (032) - CRANKSHAFT AND FLYWHEEL, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A65097

CRANKSHAFT - engine

1шт.

2

A58565

WASHER

- thrust, crankshaft (Std.) (Bronze)

2шт.

2

A42447

WASHER

- thrust, crankshaft (.006" oversize) (Bronze)

1шт.

3

A43090

BEARING LINER

LINER - main bearing, wide (Std.)

4шт.

3

A43124

LINING

LINER - main bearing, wide (-.020")

4шт.

3

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide (-.010")

4шт.

3

A43126

LINING

LINER - main bearing, wide (-.020")

4шт.

3

A43127

LINING

LINER - main bearing, wide (-.030")

4шт.

4

A43089

BEARING LINER

LINER - main bearing, narrow (Std.)

3шт.

4

A43120

LINING

LINER - main bearing, narrow (-.002")

3шт.

4

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.010")

3шт.

4

A43122

LINING

LINER - main bearing, narrow (-.020")

3шт.

4

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.030")

3шт.

5

A58573

GEAR

- crankshaft front

1шт.

6

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 15/32"

1шт.

8

A64114

PULLEY

- fan drive

1шт.

9

A58900

DAMPER

- pulley viscous

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear, 4-3/4 x 5-3/4 x 1/2"

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A63926

FLYWHEEL ASSY., Includes Ref: 26 and 27

1шт.

26

A58778

GEAR

- ring, 139 teeth

1шт.

27

A63928

BUSHING

- P.T.O. shaft to flywheel

1шт.

28

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8 x 1-3/4" N.F. hex.

6шт.
