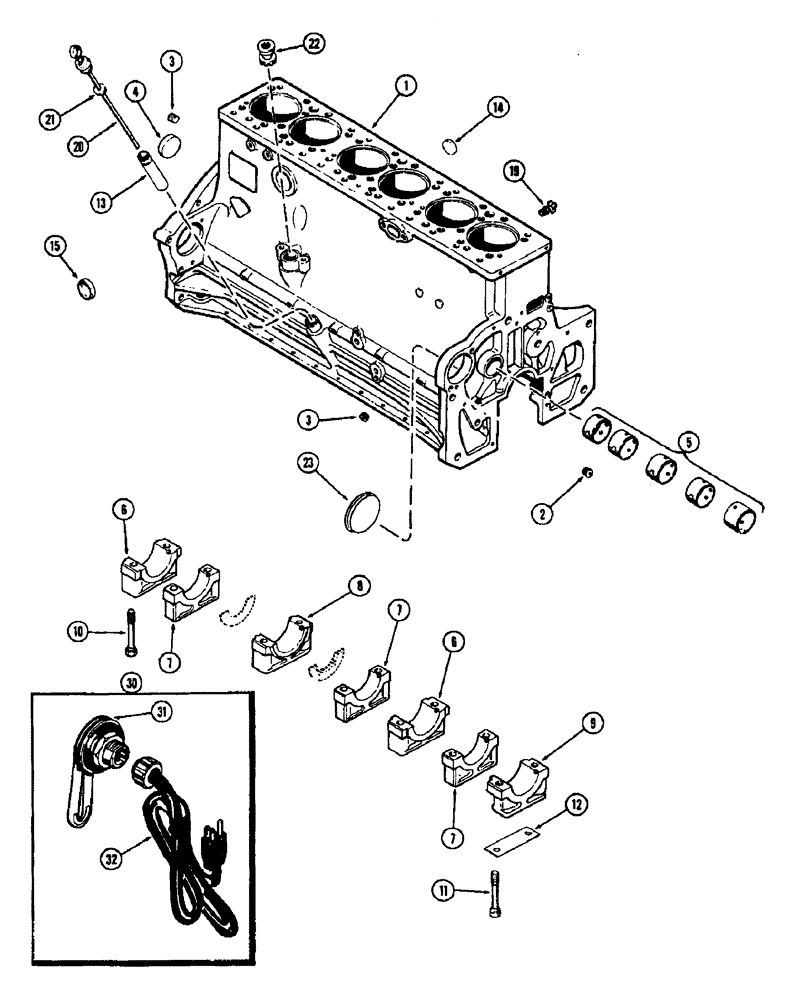

Запчасти Case IH 1370 (030) - CYLINDER BLOCK, 504BDT, DIESEL ENGINE (02) - ENGINE

A43079

SKELETON ENGINE

BLOCK ASSY. - short (Incl. stripped block, pistons, conn. rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58515), Includes Ref: 1 - 17

1шт.

1

A41765

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting #A58515)

1шт.

A151233

CRANKCASE

Engine Short Block, Tier 0

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC151233

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

2

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

4шт.

3

221-41

PLUG

- 1/8" P.T. sltd. hdless.

6шт.

4

A24361

PLUG

- 2-3/8" cup, camshaft hole

1шт.

5

A23544

BUSHING

KIT - camshaft

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

3шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A58561

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - 5/8 x 4-1/2" N.C. spec.

12шт.

11

A58567

STEP BOLT

BOLT - bearing cap to oil pump

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup, water gallery

3шт.

15

A58569

PLUG,Cup, 2", Stainless

- 2" cup, block heater hole

1шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" P.T. hex. socket

1шт.

17

41-1052

PLUG,Cup, 3 1/4"

- 3-1/4" cup

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A65051

DIPSTICK

- oil level, Includes Ref: 21

1шт.

21

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 x 1 x 1/8"

2шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

30

A42279

HEATER

ASSY. - cylinder block water, Includes Ref: 31 and 32

1шт.

A44006

SLEEVE

KIT, for heater, cylinder block

1шт.

31

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater retaining, cylinder block

1шт.

32

A42297

LAMP

CORD - electric, w/plugs, cylinder block heater

1шт.
