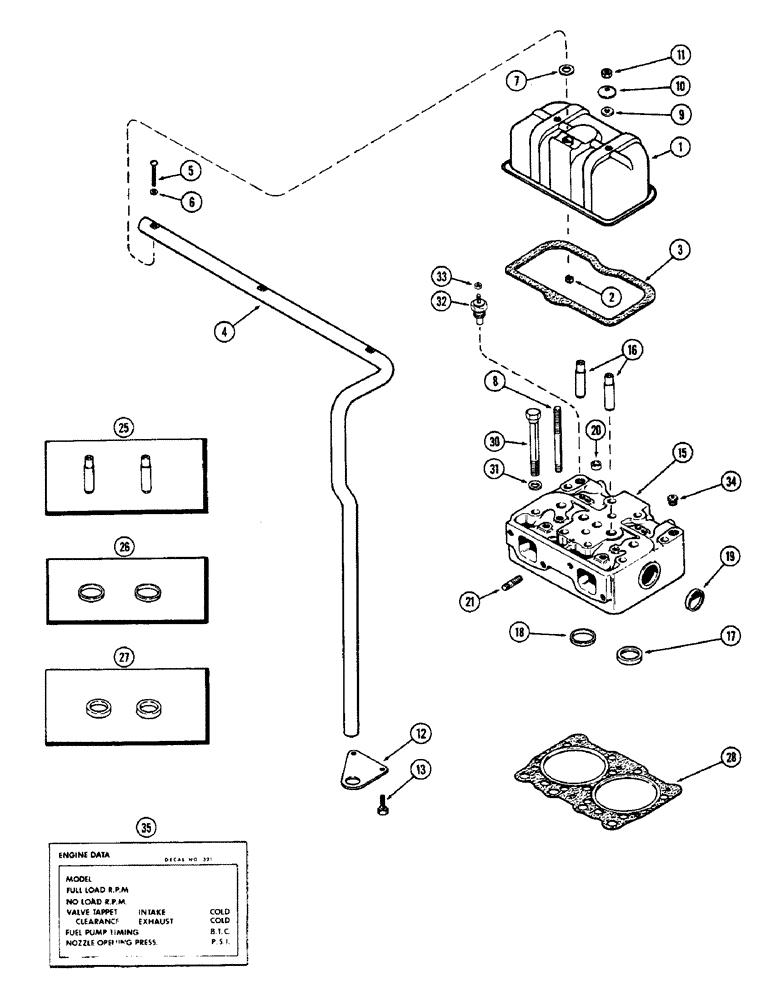

Запчасти Case IH 1370 (026) - CYLINDER HEAD AND COVER, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSY. - cylinder head

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

3шт.

4

A59053

TUBE

TUBE - breather

1шт.

5

75-440

SCREW

SCREW - 1/4 x 2-1/2" rd. hd. mach.

3шт.

6

A34133

GASKET

GASKET - breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A60885

STUD

STUD - rocker arm bracket & cylinder head cover

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

WASHER - cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" N.C. hex.

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. Sems

2шт.

15

A60558

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting no. A60559), Includes Ref: 16 - 20

3шт.

15

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

15

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 27)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" cup

2шт.

20

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup

1шт.

21

A59077

STUD

STUD - 3/8" N.C. x 1-13/16"

24шт.

25

A41781

GUIDE

GUIDE KIT - intake & exhaust valves (Set of 4)

3шт.

26

A44576

INSERT

INSERT KIT - exhaust valve (Set of 2) (Replaces A41757)

3шт.

27

A42259

INSERT

INSERT KIT - intake valve (Set of 2)

3шт.

28

A64113

CYLINDER HEAD GASKET

GASKET - cylinder head, w/fire ring

3шт.

30

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex.

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

32

A61787

TRANSMITTER

UNIT - temperature sending (In rear head)

1шт.

33

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10 N.F. hex. Keps

1шт.

34

221-1843

PLUG

PLUG - 3/8" P.T. hex. sckt. hd.

5шт.

35

321-2321

DECAL

DECAL - engine data

1шт.
