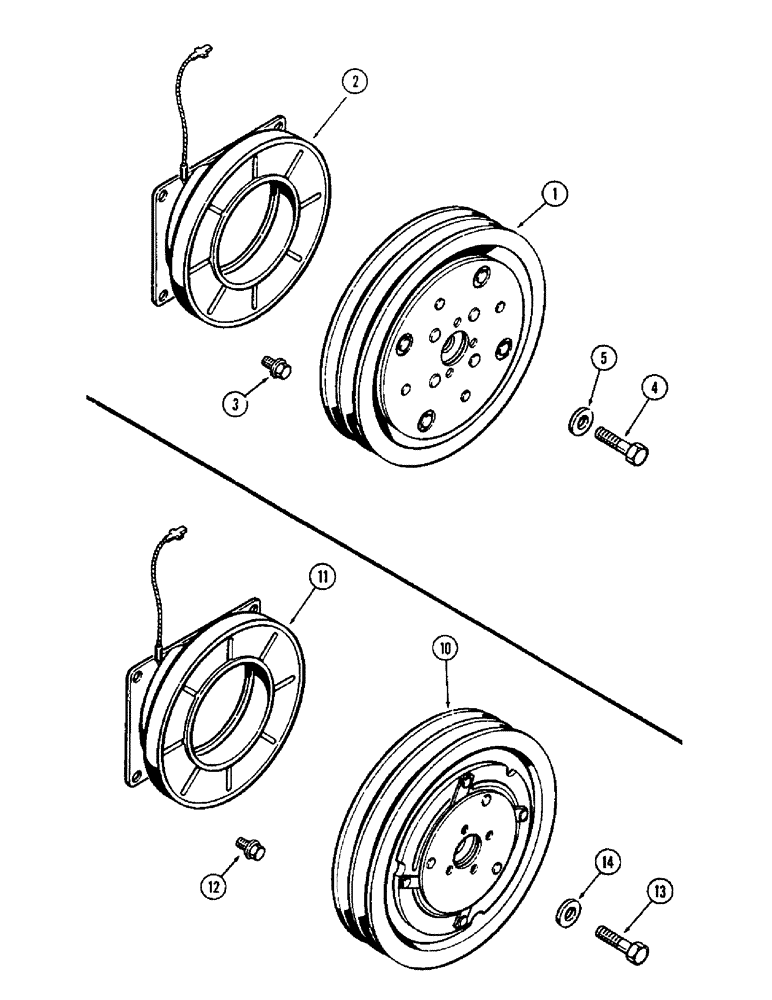

Запчасти Case IH 1370 (334) - AIR CONDITIONER, AIR COMPRESSOR CLUTCH (09) - CHASSIS/ATTACHMENTS

A64956

CLUTCH

ASSY. - (Warner electric #I-1405-17) (Order A66057), Includes Ref: 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY ASSY.

1шт.

2

A42941

COIL

FIELD ASSY. - clutch

1шт.

3

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

4

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

1шт.

5

A27343

BUSHING

WASHER - spacer (11/32 x 15/16 x 7/64")

1шт.

A66057

CLUTCH

ASSY. - (Warner electric #I-1436-14) (Replaces A64956), Includes Ref: 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSY.

1шт.

11

A44568

ELECTRIC CLUTCH

FIELD ASSY. - clutch

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

1шт.

14

A27343

BUSHING

WASHER - spacer (11/32 x 15/16 x 7/64")

1шт.
