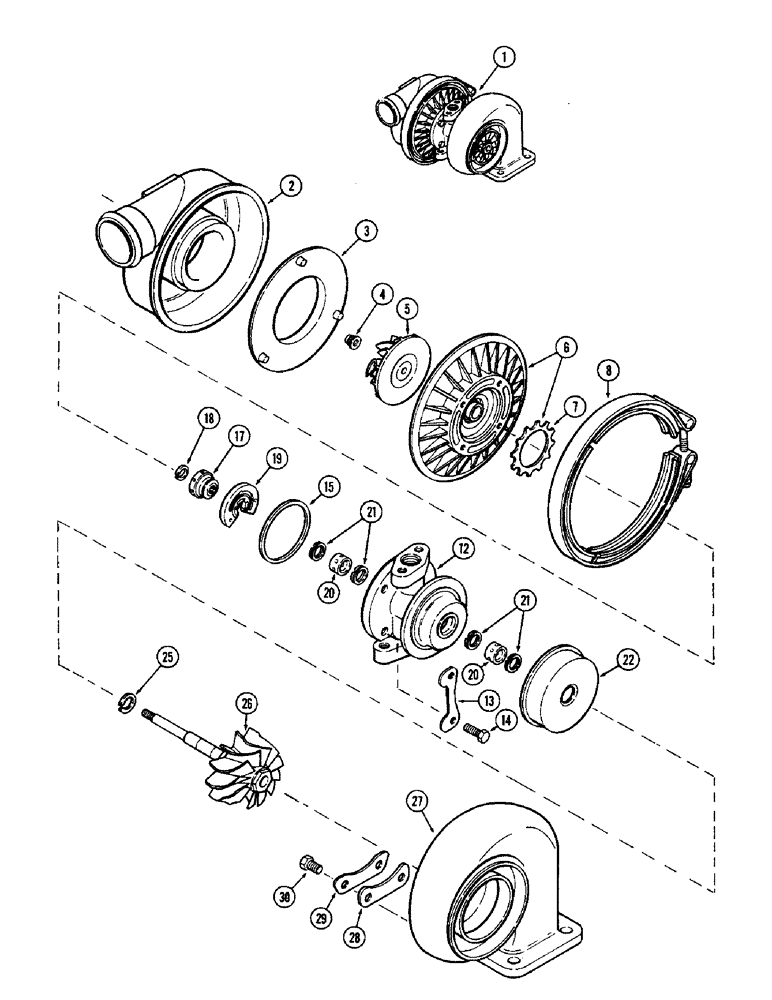

Запчасти Case IH 1370 (023C) - TURBO-CHARGER, 504BDT, DIESEL ENGINE, MODEL T04 WITH BACK PLATE BAND (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A60104
TURBO-CHARGER - original equipment (Order A44499 Figure 023A)
1шт.
A157336
TURBOCHARGER
TURBO-CHARGER
1шт.
A48192
REMAN-TURBOCHARGER
1370 PRIOR TO S/N 8727601
1шт.
A48191
CORE-TURBOCHARGER
Return Part Number
1шт.
1
A41956
TURBOCHARGER
TURBO-CHARGER - rebuilt (Order A44499 Figure 023A), Includes Ref: 2 - 30
1шт.
1
A48192
REMAN-TURBOCHARGER
Remanufactured Turbocharger
1шт.
1
A48191
CORE-TURBOCHARGER
Return Part Number
1шт.
1
A42052
CORE-TURBOCHARGER
Turbo-Charger - Return Part Number (See note)
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - compressor wheel (Order ref. 2 thru 9 Figure 023A)
1шт.
3
NSS
NOT SOLD SEPARAT
DIFFUSER - (Order ref. 2 thru 9 Figure 023A)
1шт.
4
A44831
NUT
NUT - lock, compressor wheel
1шт.
5
NSS
NOT SOLD SEPARAT
WHEEL - compressor (Order ref. 2 thru 9 Figure 023A)
1шт.
6
A44844
PLATE
PLATE ASSY. - back, compressor, Includes Ref: 7
1шт.
7
NSS
NOT SOLD SEPARAT
SPRING - thrust
1шт.
8
A44822
CLAMP
CLAMP - band, Serial Range: backplate-housing
1шт.
12
A44825
HOUSING
HOUSING - center
1шт.
13
A44820
PLATE
PLATE - lock, center housing bolt
2шт.
14
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd
4шт.
15
A44833
RING
RING - seal, center housing
1шт.
17
A44830
COLLAR
COLLAR - thrust
1шт.
18
A44828
RING
RING - piston (1/2" O.D.)
1шт.
19
A44832
THRUST BEARING,0.172"
BEARING - thrust plate
1шт.
20
A44826
BEARING
BEARING - center housing (Std.)
2шт.
20
A44849
BUSHING
BEARING - center housing (.005" undersize)
2шт.
20
A44850
BUSHING
BEARING - center housing (.010" undersize)
2шт.
21
A44827
RING
RING - snap, bearing retaining
4шт.
22
A44834
GUARD
SHROUD - wheel
1шт.
25
A44829
RING
RING - piston (23/32" O.D.)
1шт.
26
A44841
WHEEL
WHEEL ASSY. - turbine
1шт.
27
A44840
HOUSING
HOUSING - turbine
1шт.
28
A44823
CLAMP
CLAMP - turbine housing
3шт.
29
A44824
PLATE
PLATE - lock, turbine housing bolt
3шт.
30
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd
6шт.
Выбрано товаров: 33
