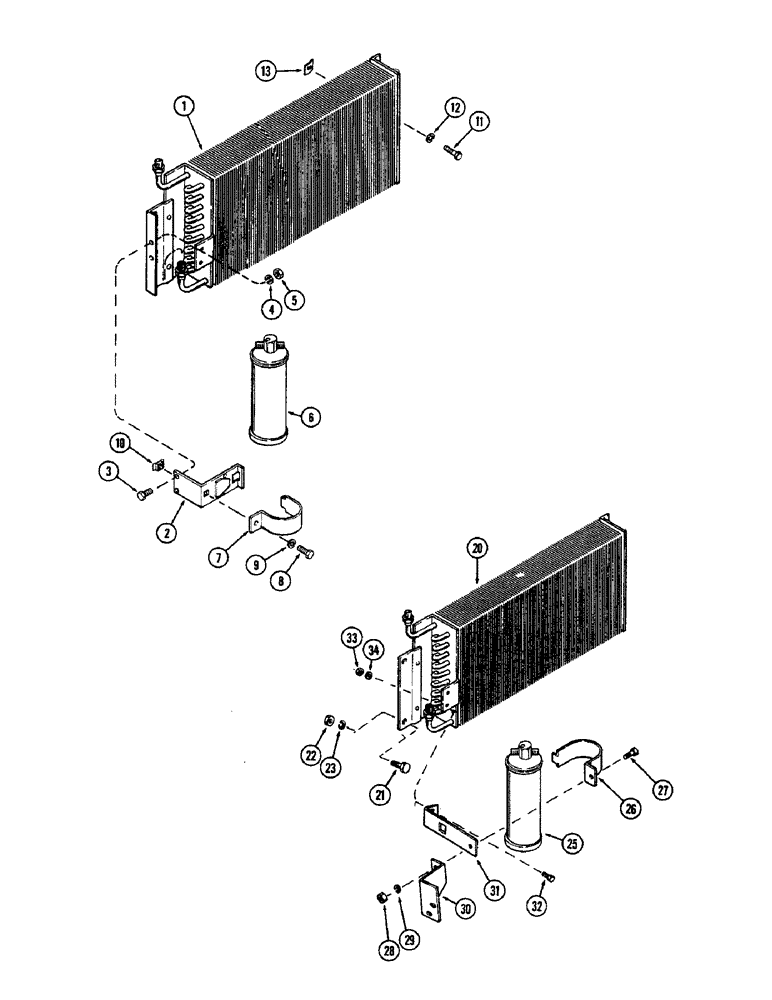

Запчасти Case IH 1370 (325A) - AIR CONDITIONER, CONDENSER AND RECEIVER DRIER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A66247

CONDENSER

COIL - condenser, 1st used Cab Ser. No. 7814176

1шт.

2

A66252

BRACKET

- receiver drier, 1st used Cab Ser. No. 7814176

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1st used Cab S/N 7814176 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , 1st used Cab S/N 7814176 1/4"

2шт.

5

25-104

NUT,1/4"-20, G5

1st used Cab S/N 7814176 1/4"-20, G5

2шт.

6

A61688

TANK

RECEIVER - drier, 1st used Cab Ser. No. 7814176

1шт.

7

A61193

CLAMP

- receiver drier, 1st used Cab Ser. No. 7814176

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1st used Cab S/N 7814176 Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

9

92-5

LOCK WASHER,5/16"

1st used Cab Ser. No. 7814176 5/16"

1шт.

10

131-137

SPRING NUT,Ret, 5/16"-18

Tinnerman, 1st used Cab S/N 7814176 Ret, 5/16"-18

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Condenser, 1st used cab S/N 7814176 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

1st used Cab Ser. No. 7814176 3/8"

4шт.

13

131-133

NUT,Ret, 3/8"-16

Speed, 1st used Cab S/N No. 7814176 Ret, 3/8"-16

4шт.

20

A64149

COIL

- condenser, used prior to cab Ser. No. 7814176

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used prior to cab S/N 7814176 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

22

131-133

NUT,Ret, 3/8"-16

Speed, Used prior to Cab S/N 7814176 Ret, 3/8"-16

4шт.

23

92-6

LOCK WASHER,3/8"

used prior to cab Ser. No. 7814176 3/8"

4шт.

25

A61688

TANK

RECEIVER - drier, used prior to cab Ser. No. 7814176

1шт.

26

A61193

CLAMP

- receiver - drier, used prior to cab Ser. No. 7814176

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used prior to cab S/N 7814176 Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., used prior to cab Ser. No. 7814176

1шт.

29

92-5

LOCK WASHER,5/16"

used prior to Cab Ser. No. 7814176 5/16"

1шт.

30

A64402

BRACKET - support, used prior to cab Ser. No. 7814176

1шт.

31

A62131

BRACKET - receiver - drier clamp, used prior to cab Ser. No. 7814176

1шт.

32

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Used prior to Cab S/N 7814176 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

33

25-104

NUT,1/4"-20, G5

Used prior to Cab S/N 7814176 1/4"-20, G5

2шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used prior to Cab S/N 7814176 1/4"

2шт.
