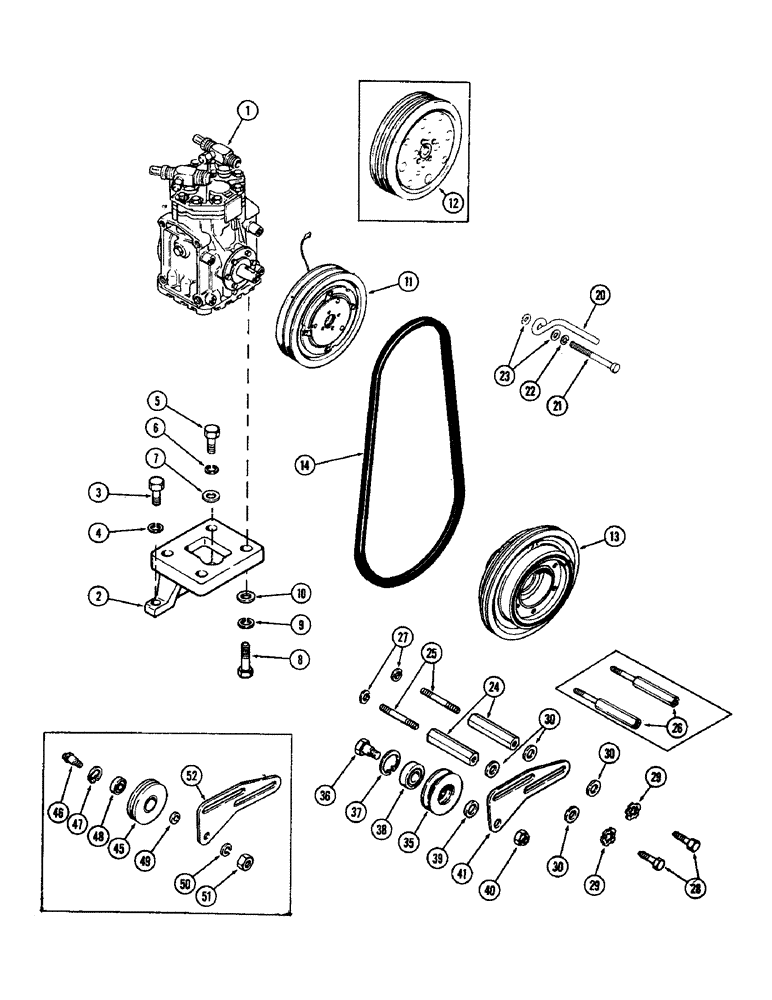

Запчасти Case IH 1370 (324) - AIR CONDITIONER, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

A64810

AIRCOND. COMPRESSOR

COMPRESSOR ASSY. - (York) (See Figure 332)

1шт.

1

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

A64147

BRACKET

SPARE PART BRACKET - compressor mounting

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

6

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

1шт.

7

195-2065

WASHER,33/64" x 7/8" x .049"

WASHER - 7/8 x 33/64 x 18 ga.

1шт.

7

A57090

WASHER

WASHER - 21/32 x 1-1/8 x 1/64"

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

4шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

95-6

WASHER,3/8"

WASHER - 1/2 x 1 x 5/64"

4шт.

11

A66057

CLUTCH

CLUTCH - compressor (Replaces A64956) (See Figure 334)

1шт.

12

A64956

CLUTCH

CLUTCH - compressor (Order A66057) (See Figure 334)

1шт.

13

A64106

CRANKSHAFT

PULLEY - compressor drive

1шт.

14

A65716

V-BELT,0.50" W x 72.80" L

Compressor Drive, Order A65717

1шт.

14

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive

1шт.

A65719

KIT

KIT - rub bar, drive belt, Includes Ref: 20 - 23

1шт.

20

A65718

GUARD

BAR - rub, drive belt

1шт.

21

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

23

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64"

2шт.

24

A65668

MOUNTING PARTS

POST - idler plate (1st use trac. SN8711061) (Repl. A62970)

2шт.

25

A65667

STUD

STUD - post (1st used trac. SN8711061)

2шт.

26

A62970

POST

POST - idler plate (Order A65667 & A65668)

2шт.

27

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

29

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

30

195-25

WASHER,3/8"

WASHER - 13/32 x 13/16 x 1/16"

1шт.

35

A65780

PULLEY

PULLEY - idler, compressor drive belt, 1st used Trac. Ser. No. 8707322

1шт.

36

A65782

PIN

PIN - idler pulley (9/16" N.F. thrd.), 1st used Trac. Ser. No. 8707322

1шт.

37

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg, 1st used tractor s/n 8707322 1.562", Int, #156

1шт.

38

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - pulley, 1st used Trac. Ser. No. 8707322

1шт.

39

A65783

SPACER

SPACER - pulley (43/64 x 29/32 x 3/16"), 1st used Trac. Ser. No. 8707322

1шт.

40

131-1145

JAM NUT,5/8" - 18

NUT - lock, 9/16" hex. jam, 1st used Trac. Ser. No. 8707322

1шт.

41

A65784

PLATE

PLATE - idler adjusting, 1st used Trac. Ser. No. 8707322

1шт.

45

A62964

PROTECTOR

PULLEY - idler, used prior to Trac. Ser. No. 8707322

1шт.

46

A62967

PIN

PIN - idler pulley (5/16" N.C. thrd.), used prior to Trac. Ser. No. 8707322

1шт.

47

A62966

SNAP RING,1.02", Int, #102

Ring, Snap, , pulley brg, used prior to tractor s/n 8707322 1.02", Int, #102

1шт.

48

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley, used prior to Trac. Ser. No. 8707322

1шт.

49

A62968

SPACER

SPACER - idler pulley (13/32 x 5/8 x 1/4"), used prior to Trac. Ser. No. 8707322

1шт.

50

192-110

LOCK WASHER,5/16"

WASHER - lock, , used prior to Trac. Ser. No. 8707322 5/16"

1шт.

51

25-145

JAM NUT,Jam, 5/16"-18, G5

NUT - 5/16" N.C. hex., jam, used prior to Trac. Ser. No. 8707322

1шт.

52

A62969

LARGE PLATE

PLATE, LARGE PLATE - idler adjusting, used prior to Trac. Ser. No. 8707322

1шт.
