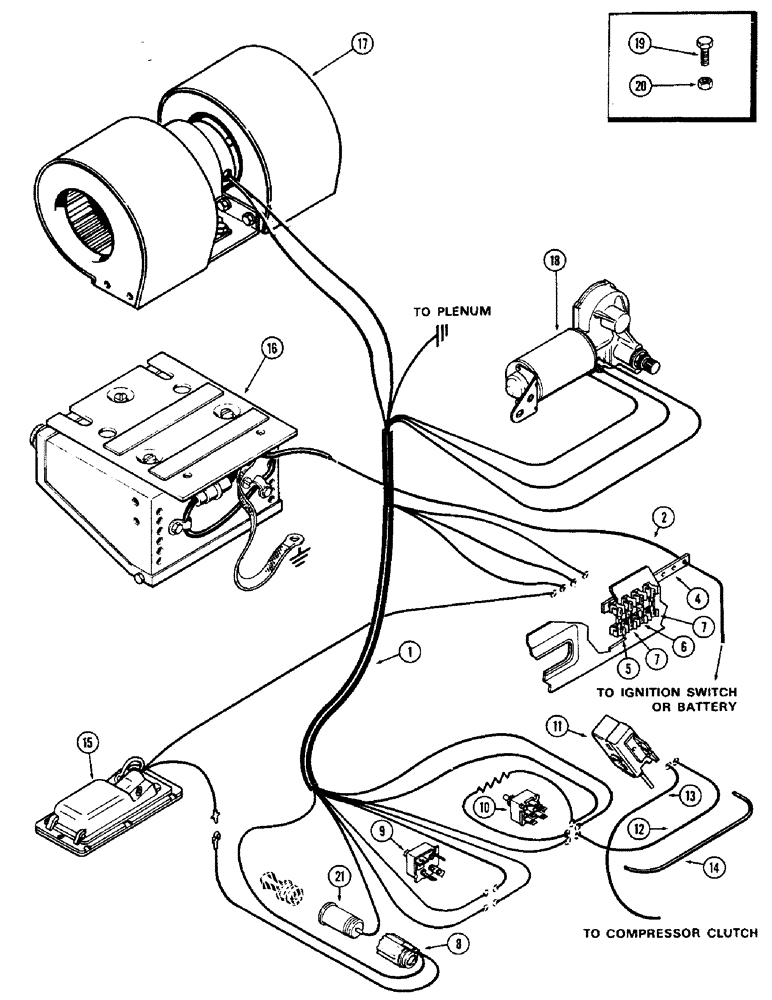

Запчасти Case IH 1370 (310) - CAB, CONTROLS AND WIRING, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

ASSY. - control panel wire

1шт.

2

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch (154-1/2" red)

1шт.

4

F63512

BAR

- buss

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp. (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp. (Wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp. (Blower & cigar lighter)

2шт.

8

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

9

A42660

SWITCH

SWTICH - wiper motor

1шт.

10

A42622

SWITCH

- blower motor

1шт.

11

A42623

CONTROL

- cab temperature

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control (6" black)

1шт.

13

F63525

ELECTRICAL WIRE

WIRE - temp. control to compressor clutch (215" blue)

1шт.

14

A63719

TUBE - shielding, temperature control (8-1/2")

1шт.

15

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

16

A62456

RADIO

KIT - (See Figure 322)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - (See Figure 294)

1шт.

18

A42692

MOTOR

- windshield wiper (See Figure 320)

1шт.

19

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine (#10 x 3/8" hex.), Control panel wire harness to wiper motor switch

1шт.

20

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.

21

F63530

SOCKET/RECEPTACLE

SOCKET ASSY. - cigar lighter

1шт.
