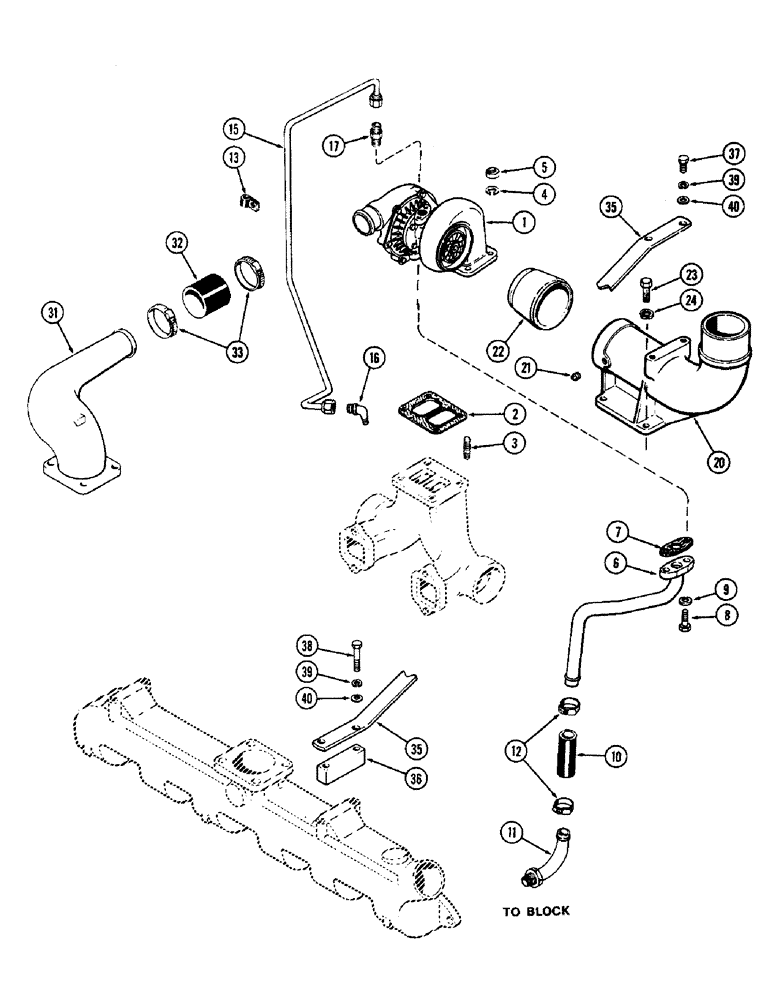

Запчасти Case IH 1370 (022) - TURBO-CHARGER SYSTEM, 504BDT, DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBO-CHARGER - (See Figures 023A & 023C)

1шт.

2

A58899

GASKET,0.45mm Thk

, Serial Range: Turbo-charger-manifold

1шт.

3

G11204

STUD

3/8" N.C. x 1-1/2"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

Seezpruf

4шт.

6

A62518

TUBE

ASSY - oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

Oil drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A58893

HOSE

, Serial Range: Drain-fitting

1шт.

11

A58897

FITTING

Drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

(1-3/16 to 1-3/4")

2шт.

13

49845

CLAMP

CLIP - oil supply tube

1шт.

15

A64375

TUBE

Oil supply

1шт.

16

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

3/8" tube

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

3/8" tube, 3/8" P.T.

1шт.

20

A61265

ELBOW

Exhaust, turbo-charger

1шт.

21

221-12

PLUG,Sq Hd, 1/4"-18

Elbow, pipe

1шт.

22

A65554

TUBE

CONNECTOR - exhaust elbow (Replaces A58896)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

31

A58903

ELBOW UNION

Union Elbow Air intake, turbo-charger

1шт.

32

A58894

HOSE

Air intake elbow

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A61944

BRACE

, Serial Range: Elbow-manifold

1шт.

36

A61945

SPACER

, Serial Range: Brace-manifold

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

95-6

WASHER,3/8"

(7/16 x 1 x 5/64")

4шт.
