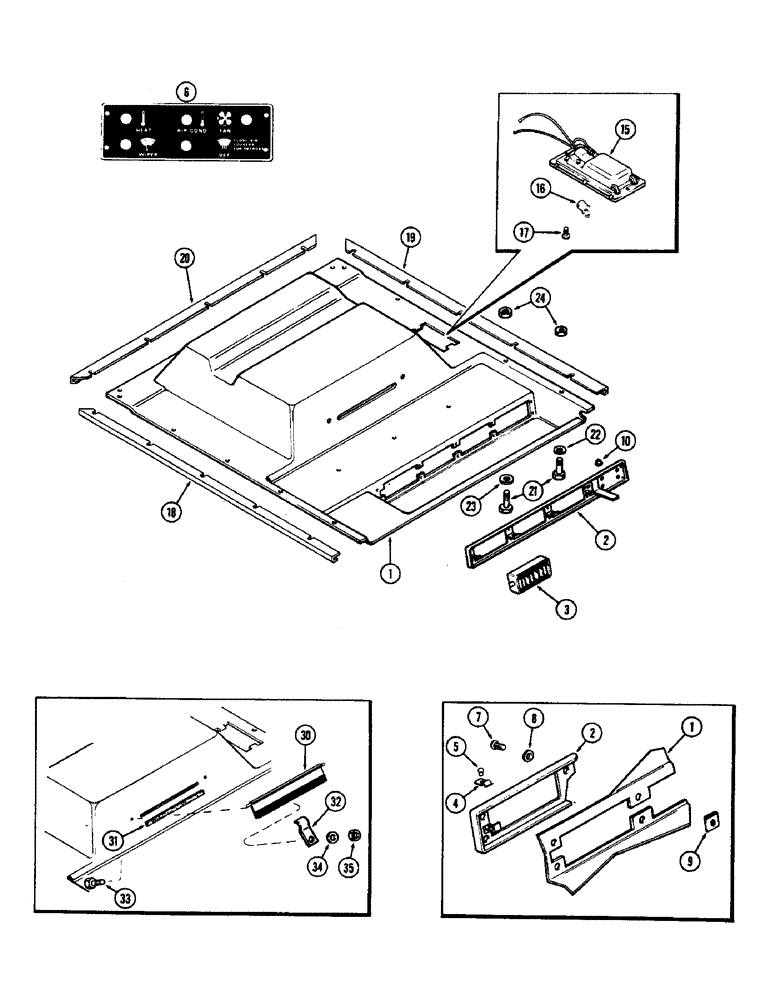

Запчасти Case IH 1370 (288) - CAB, HEADLINERS AND LOUVERS, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

F89664

CAB

HEADLINER ASSY. - cab, Includes Ref: 1

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

F63416

COVER

- headliner acoustical (See Figure 284)

1шт.

2

A42552

PANEL ASSY. - control (Replaces A42641), Includes Ref: 3 - 6

1шт.

3

F89673

GUARD

LOUVER - control panel

3шт.

4

A42575

CLIP

- louver mounting

6шт.

5

151-502

RIVET,Pop, 1/8" x 5/16"

- pop

6шт.

6

321-1914

DECAL

- instrument panel

1шт.

7

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. Phillips

10шт.

8

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

4шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

10

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes Dome, .437" hole, Nylon

1шт.

15

A42658

INTERIOR LIGHT

LIGHT ASSY. - dome, Includes Ref: 16

1шт.

16

A41742

BULB

- dome light

1шт.

17

151-502

RIVET,Pop, 1/8" x 5/16"

- pipe, 1/8"

2шт.

18

F63270

ORNAMENTAL STRIP

TRIM - headliner, R.H.

1шт.

19

F63271

ORNAMENTAL STRIP

TRIM - headliner, L.H.

1шт.

20

F63276

ORNAMENTAL STRIP

TRIM - headliner, rear

1шт.

21

163-13

SCREW,Hex, #10 - 24 x 3/4"

- #10 x 3/4" N.C. hex.

18шт.

22

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

18шт.

23

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (Headliner to plenum)

3шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.

30

F89764

FLAP

VALVE ASSY. - auto-pressurization

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/2 x 1/8 x 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

32

F63260

CLIP

- valve hinge

2шт.

33

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

34

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

35

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.
