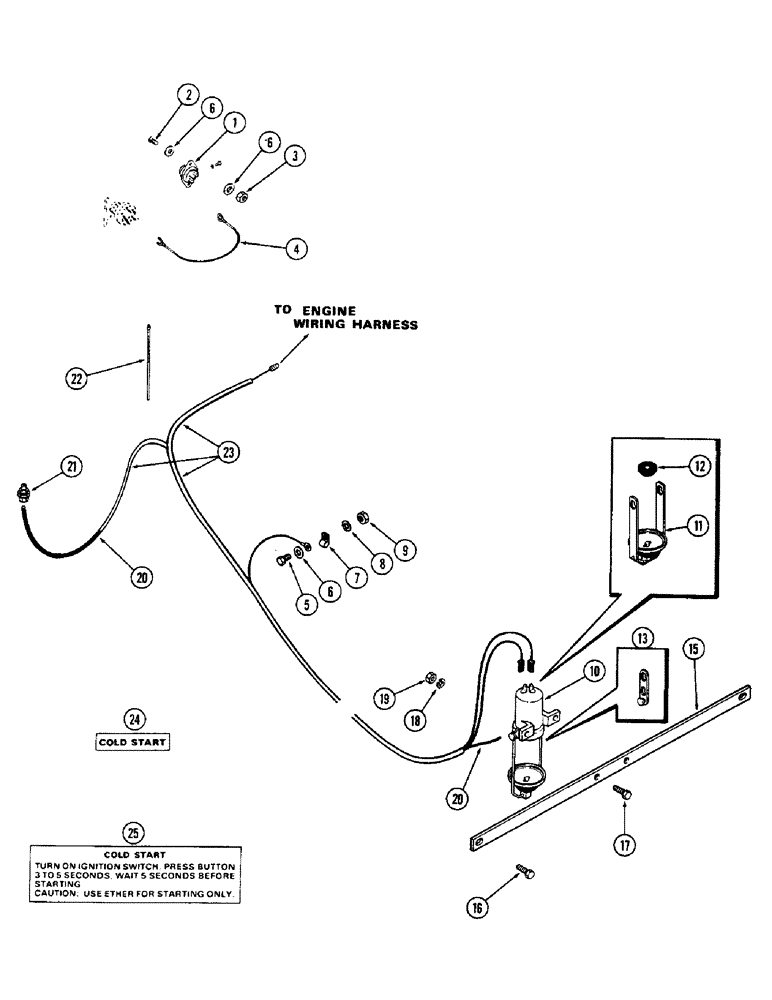

Запчасти Case IH 1370 (021A) - ETHER STARTING AID, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A36948

SWITCH

- button

1шт.

2

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

3

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

2шт.

4

A65985

ELECTRICAL WIRE

WIRE - button switch to starting switch (10-1/2")

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 5/64"

3шт.

7

A7922

CLIP

- harness to radiator support

1шт.

8

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

1шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

10

A62441

SOLENOID

ASSY. - ether injector (Incl. elbow & fitting), Includes Ref: 11 and 12

1шт.

11

R30785

BAIL

- ether retainer

1шт.

12

R30786

GASKET

-, Serial Range: can-solenoid

1шт.

13

R30812

LINK

- extension, ball

2шт.

15

A65885

BRACKET

- support, ether solenoid

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Solenoid

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A62774

TUBE

- plastic, solenoid to injector (83")

1шт.

21

A62775

INJECTOR ASSY.

- ether (Incl. tube fitting)

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, tube & wire harness

1шт.

23

A62773

HARNESS

- wire, solenoid (106")

1шт.

24

321-1752

DECAL

- DECAL - "Cold Start", button switch

1шт.

25

321-1841

DECAL

- cold start instruction

1шт.
